- 9 -

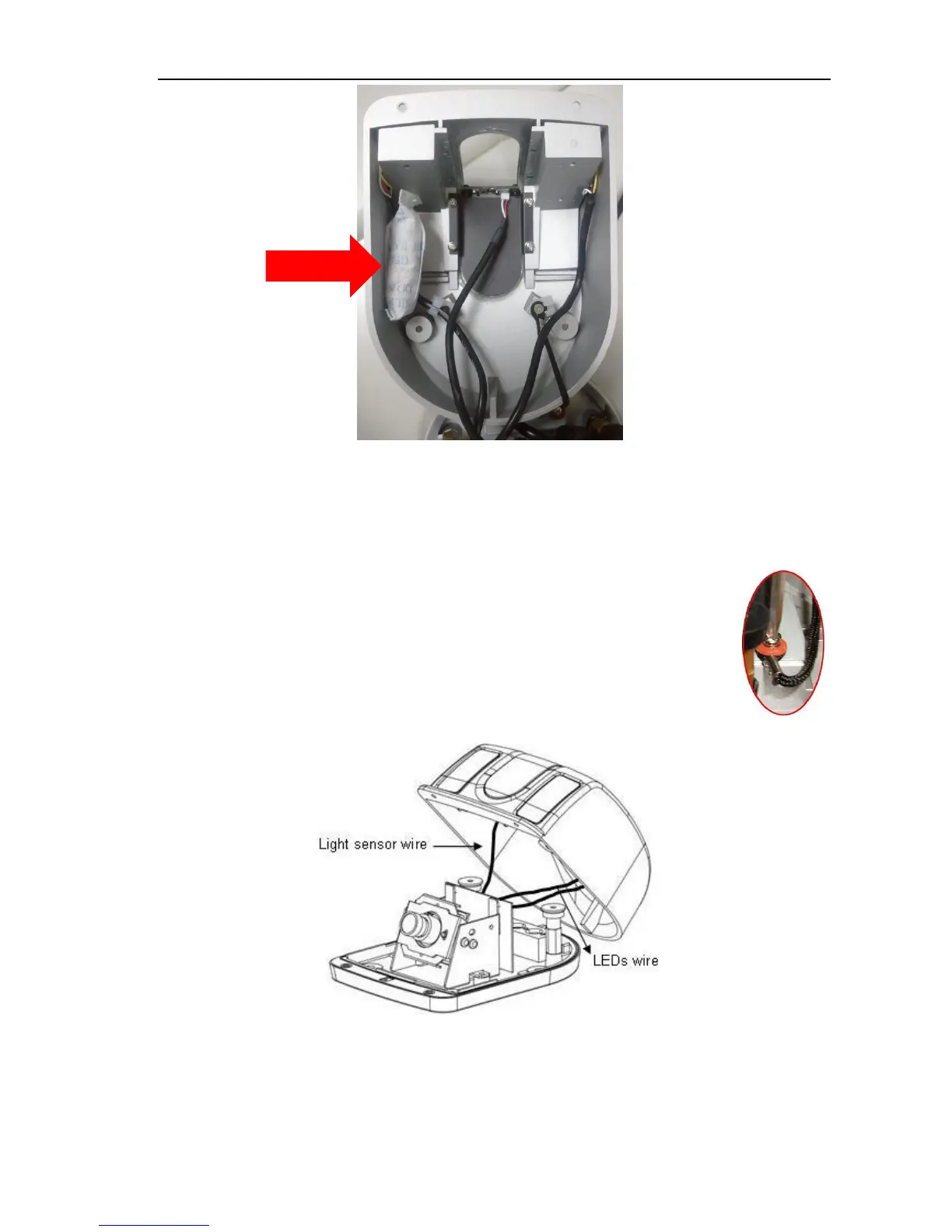

F. Reattach cover and seal housing
1. Reversing the steps in A above
a. Reattach the safety cord to the base; position the metal
ferrule to the side so it does not overlap the gasket and
interfere with the cover when it is replaced.
b. Reattach the LED illuminator wires and place into clips.
c. Reattach the light sensor wire
2. Replace the cover onto the base, making sure the gasket lies flat between the
base and cover.
