22 Installation Instructions
Connection Procedure:
1. Switch off the circuit breaker and secure against being inadvertently switched
back on.

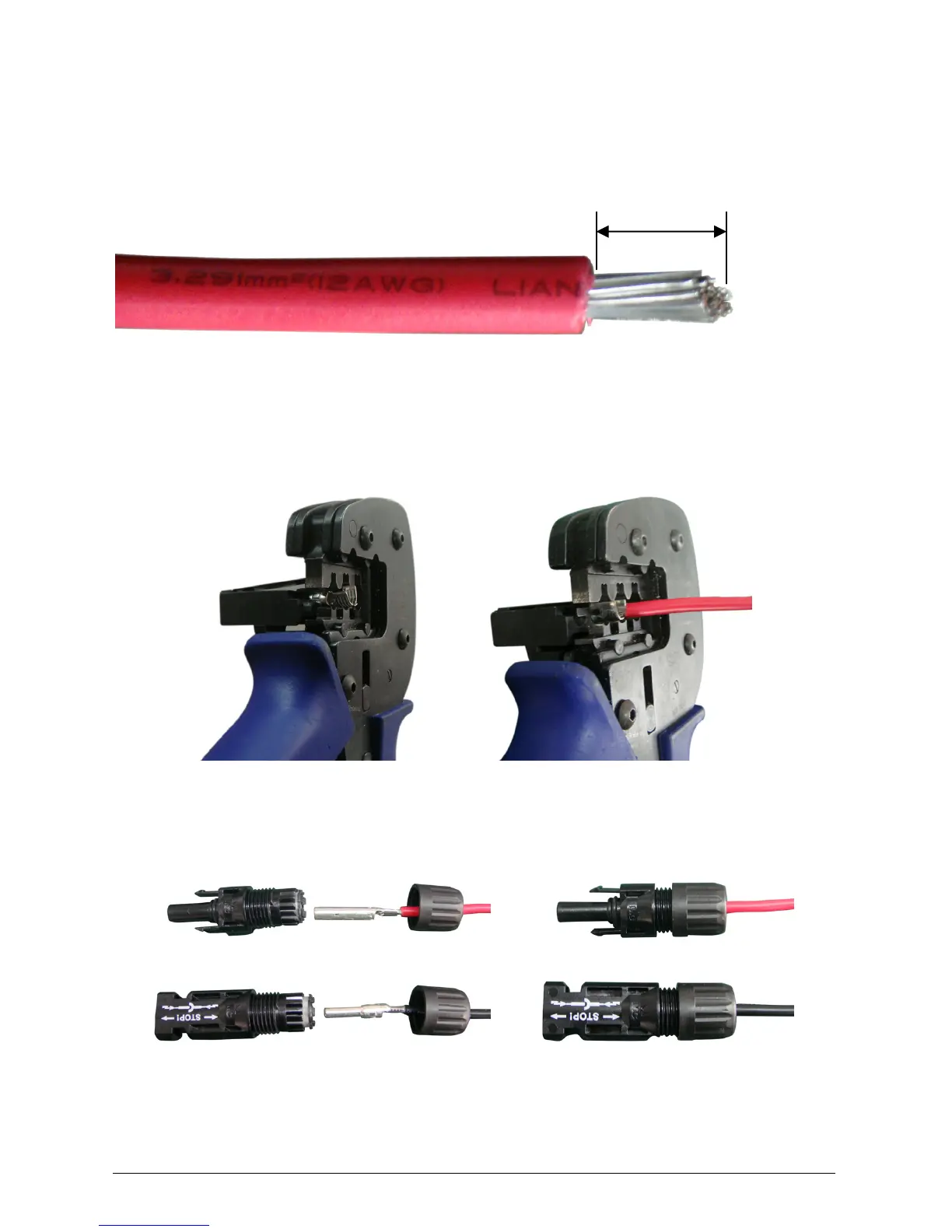

2. Prepare the cable and bare the end with a stripping pliers as shown below.
6 mm
3. Connect the cable together with MC IV connector.
Insert the metal contact into the middle hole of the crimping pliers.
Put the bare end of the cable onto the metal contact.
Compress them togeter with the crimping pliers.
Slide the cap over the cable.
Plug the metal contact together with the cable to the corresponding coupler.
And then turn the cap to the coupler.
4. Plug the MC IV connector to DC terminal on Eversol.
