EVGA Z490 DARK (131-CL-E499)
- 33 -

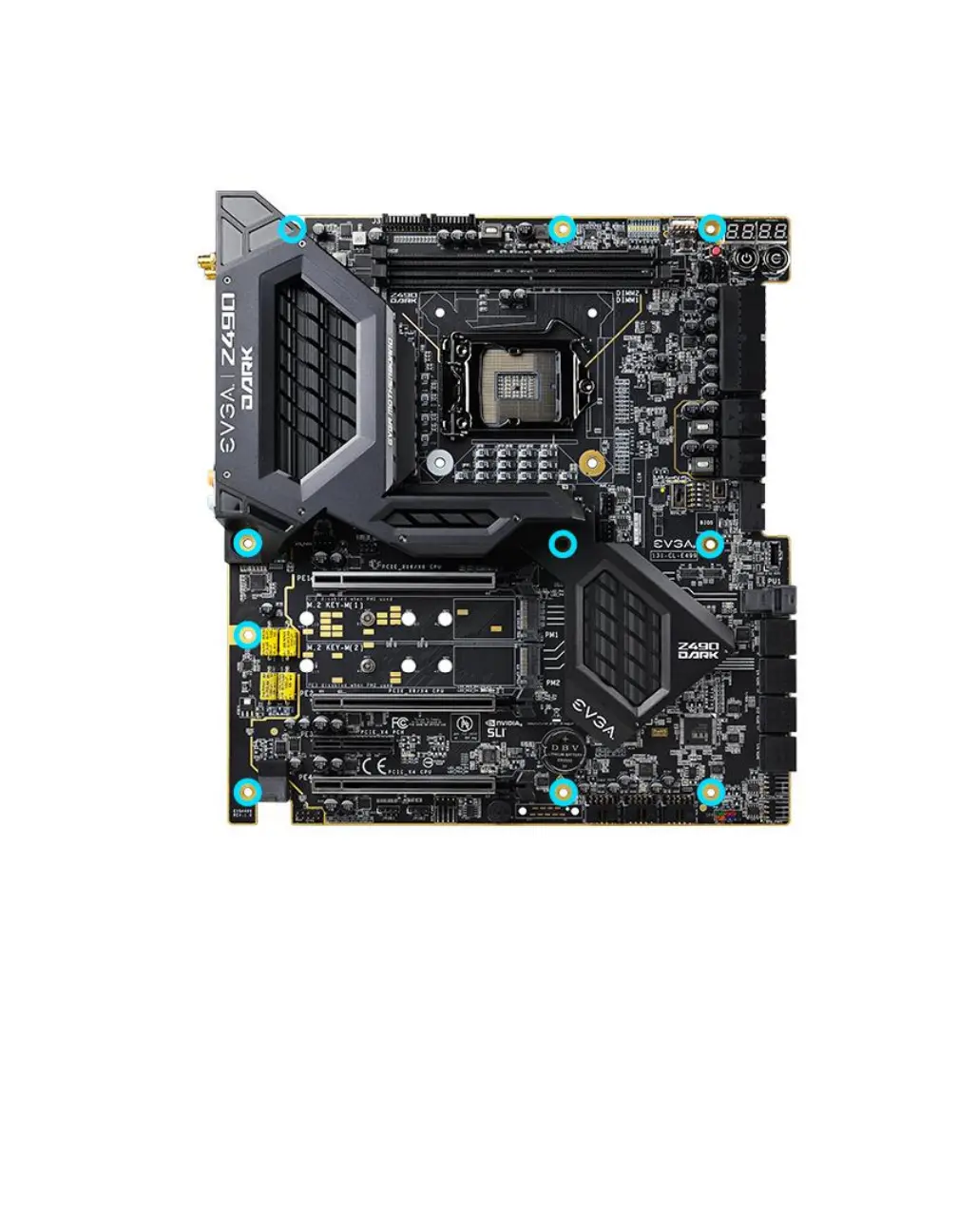

1. All safe locations to secure the board to a standoff are circled in blue.
2. Keep in mind that when the screws are installed, but not fully
tightened, the motherboard should have 1-2mm of movement; this can
help when mounting cards or tight-fits with other components.
3. Once the board is properly aligned, be sure to fully-tighten the board to
the chassis before proceeding.
