EVGA Z490 DARK (131-CL-E499)
- 41 -

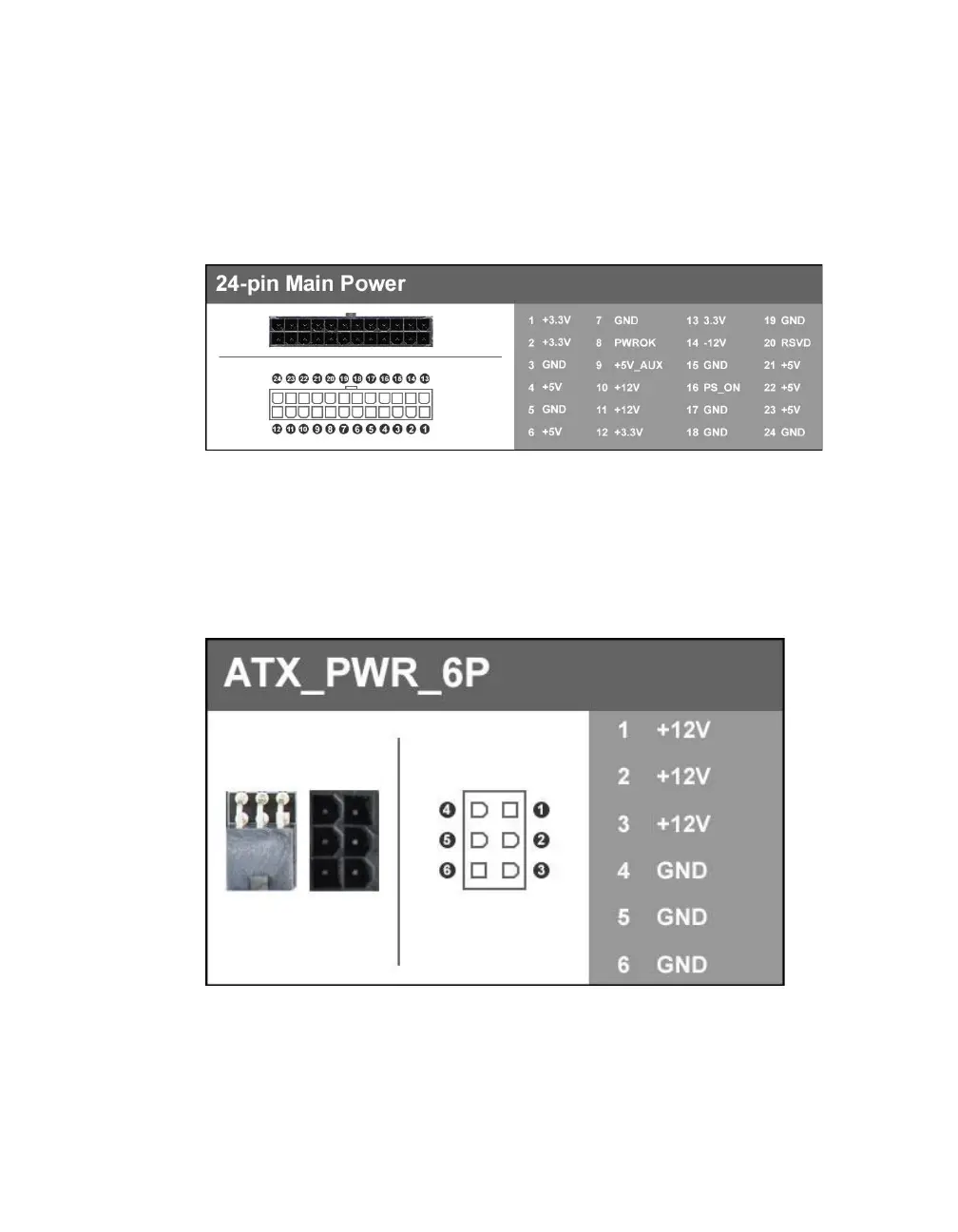

24pin ATX Power (ATX_PWR_24P)
ATX_PWR_24p is the main power supply connector located along the lower-
right edge of the board. Make sure that the power supply cable and pins are
properly aligned with the connector on the motherboard. Firmly plug the
power supply cable into the connector and make sure it is secure.
The Z490 DARK motherboard uses a right-angle 24pin ATX connector.
6-pin PCIe
The 6-pin PCIe connector present on the motherboard provides additional
power to the PCIe slots, rather than pulling it all from the 24-pin main
power. It is advised to plug in this connector when using SLI, especially with
higher-end graphic cards.
