Onboard Buttons
These onboard buttons include RESET, POWER and Clear CMOS. These
functions allow you to easily reset the system, turn on/off the system, or clear
the CMOS.

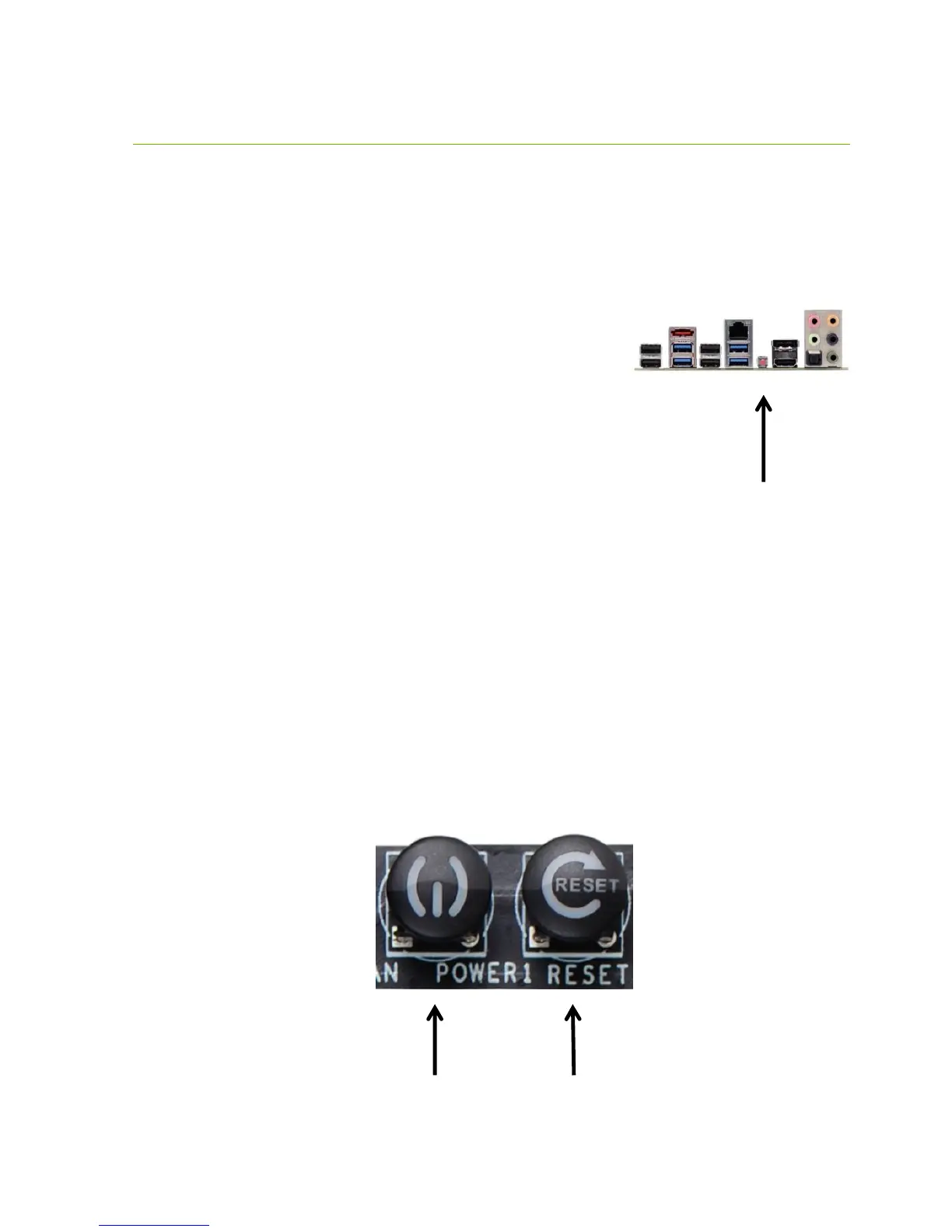

Clear CMOS Button
The motherboard uses the CMOS RAM to
store all the set parameters. The CMOS can be
cleared by pressing the Clear CMOS button
either onboard or on the external I/O Panel.
RESET and POWER Button
These onboard buttons allow you to easily turn on/off the system. These
buttons allow for easy debugging and testing of the system during
troubleshooting situations.
The POWER button with an integrated LED indicates the system’s status.
When the system is powered on, the LED remains a solid red.
The RESET button with an integrated LED indicates the activity status of the
hard disk drives and will flicker accordingly.
