ENGLISH
3
H. POWER INPUT: Connect included power cord to a
grounded outlet in accordance with voltage and frequency
ratings listed on rear panel of amplifier.
I. FUSE: With power disconnected, replace a blown fuse only
with one of the type and rating specified on rear panel of
amplifier.
J. POWER: Turns amp on and off. When first turning amplifier
on, leave OPERATE/STANDBY switch (K) in STANDBY (down)
position for seconds while tubes warm, then set switch
to OPERATE (up) position to take amp out of STANDBY
mode. Before turning POWER switch off (down position),
put amp in STANDBY mode for seconds
K. OPERATE/STANDBY: When taking a break from playing
and before turning amplier o as noted above (J), put amp
in STANDBY mode—which helps prolong tube life—by
setting this switch to the STANDBY (down) position. Return
switch to OPERATE (up) position when resuming play after
a break. Also as noted above (J), amp should remain in
STANDBY mode for seconds after initial power-up.
L. POWER LEVEL: FULL position provides maximum output
power; / position reduces power to approximately four watts.
M. EFFECTS LOOP: Connect SEND to effects input and
RETURN to effects output.
N. FOOTSWITCH: Connect included single-button footswitch
here for channel switching (overrides front panel switch).
O. RESONANCE: Adjusts the power amp’s low-frequency
response.
P. LOAD IMPEDANCE: Selects output impedance (, or
ohms) to match speaker load.
Q. SPEAKER OUTPUT: For connection to speaker cabinet.
NOTE: A speaker must always be plugged into the speaker jack
when amplifier is on, or damage may occur. Switch amplifier
off or to STANDBY (K) when changing speaker connections or
impedance settings.
SPECIFICATIONS
Type PR 3736
Part Numbers 2256000000 (120V, 60Hz) 2256001000 (110V, 60Hz) TW 2256003000 (240V, 50Hz) AUS
2256004000 (230V, 50Hz) UK 2256005000 (220V, 50Hz) ARG 2256006000 (230V, 50Hz) EUR
2256007000 (100V, 50Hz) JPN 2256009000 (220V, 60Hz) ROK
Power Requirement 100 watts
Power Output 15 watts RMS into 4, 8 or 16 ohms
Input Impedance >1M
Output Impedance 4/8/16 (selectable)
Fuses 100V units, F1.6A L, 250V 120V units, F1.25A L, 250V 220-240V units, F0.63A L, 250V
Footswitch Single-button channel-switching footswitch (included)
Tubes Two EL84 output tubes, five ECC83S preamp tubes
Dimensions Height: 7” (17.8 cm) Width: 12.5” (31.2 cm) Depth: 6” (15.3 cm)
Weight 15 lbs. (6.8 kg)
Product specifications subject to change without notice.
FUSE POWER
SEND RETURN FOOTSWITCH
RESONANCE IMPEDANCE SPEAKER
OUTPUT
16Ω
8Ω
4Ω
POWER LEVEL
OPERATE
STANDBY
ON FULL
OFF
INPUT POWER
120V 60Hz
EFFECTS LOOP
15W
4Ω min
F1.25A L
250V
FUSE
100W
PANEL REAR EVH 5150 III 15W
7707973000
REV
2.0

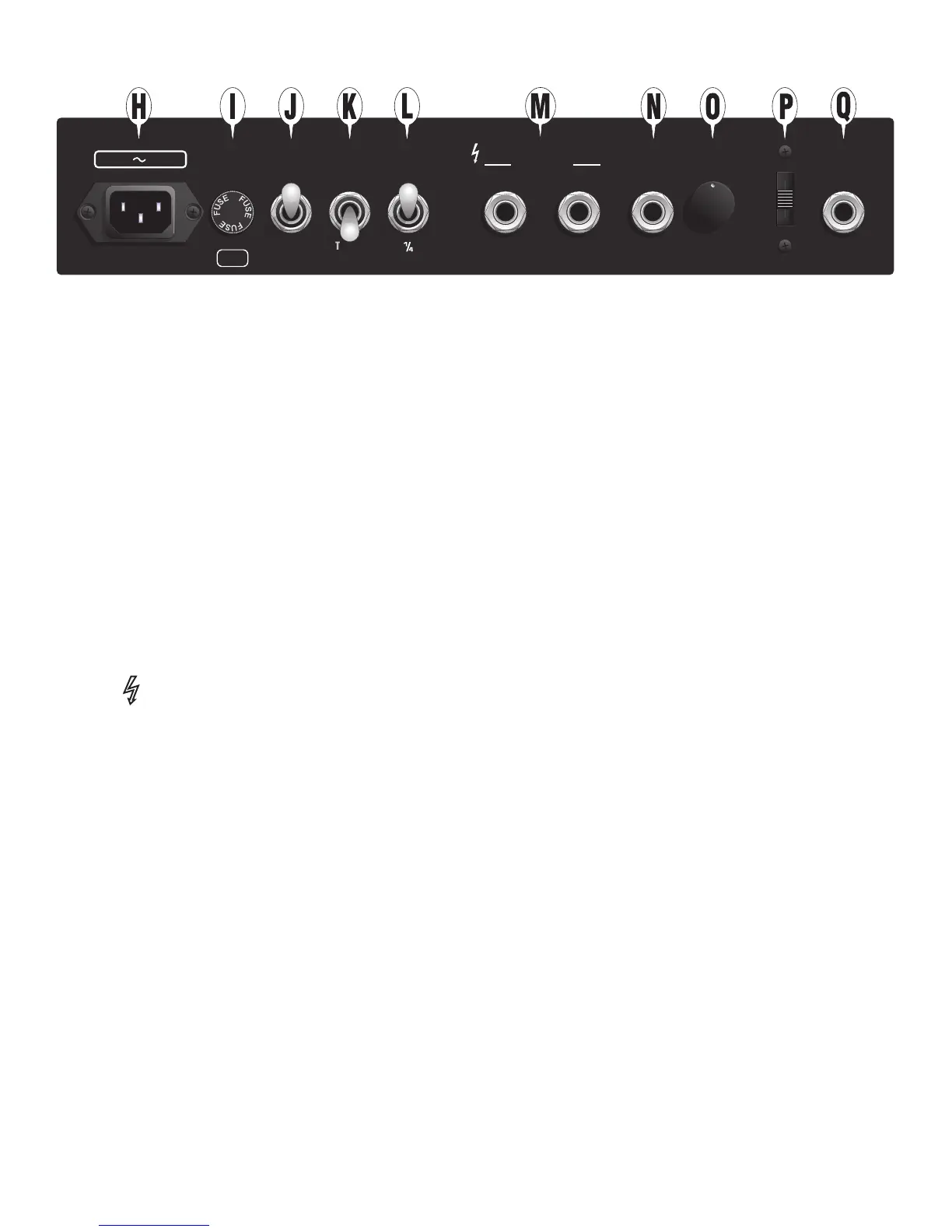

REAR PANEL FEATURES
CAUTION: To prevent electric shock hazard, do not connect to mains power supply while top cover is removed.
