Evil CHAMOIS HAGAR - Exploded View; Parts and Rebuild Parts; Torque Specifications

*PART COMES IN POLY BAG KIT, NOT ASSEMBLED ON FRAME
*APPLY THREAD LOCK TO THE TREADS ONLY
GREASED PART
PARTS ARE AVAILABLE IN SPECIFIC KITS AT EVIL-BIKES.COM

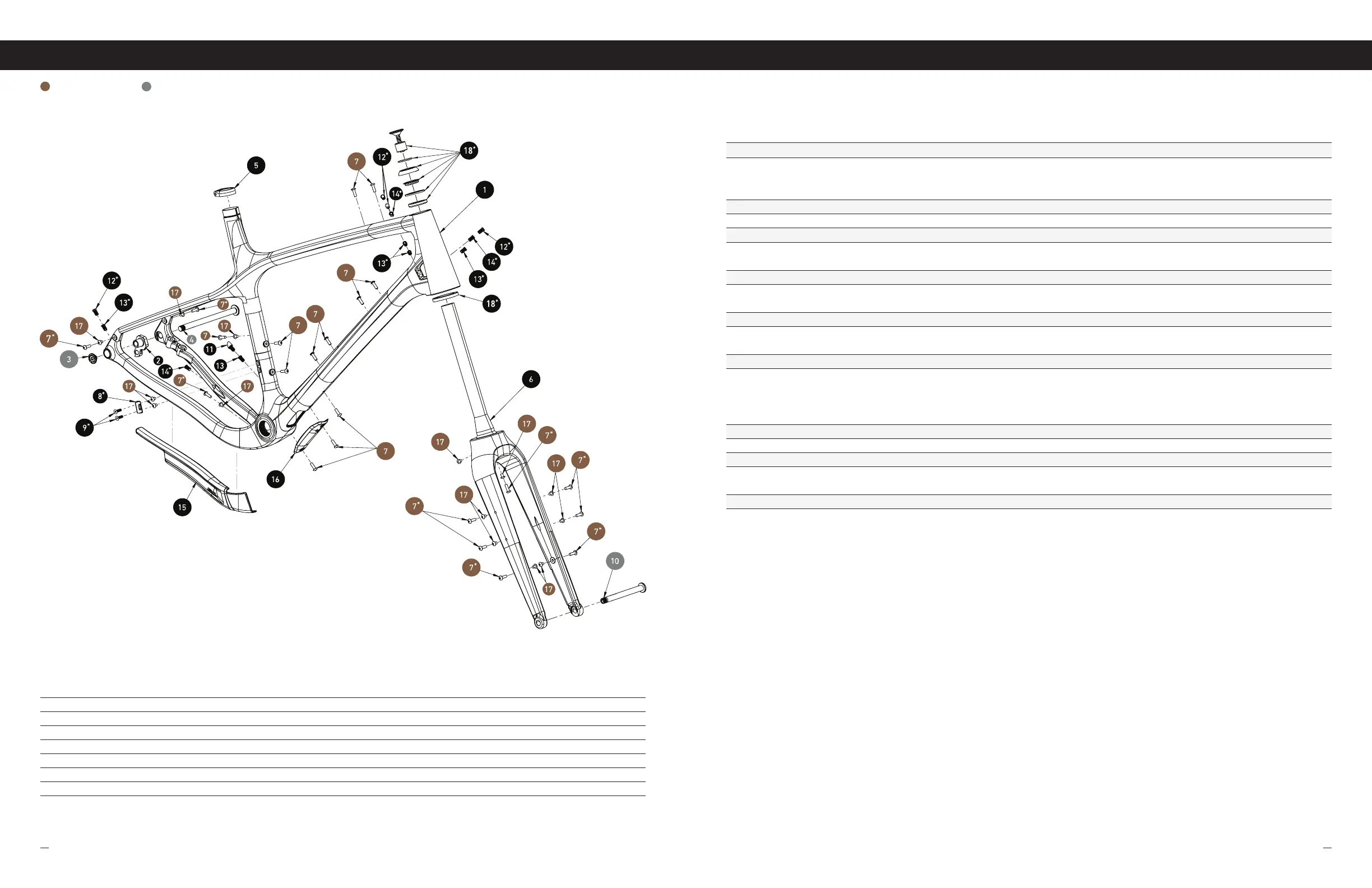

EXPLODED VIEW PARTS / REBUILD PARTS
THREAD LOCKED PART
07 08
ENG. PART# EXP.REF ITEM QTY
AXLE04 AXLE KIT - CHAMOIS HAGAR
50430-166 4 REAR AXLE, 166 x 12mm, M12 x 1.5 1
50420 2 DERAILLEUR HANGER 12mm BOLT ON 1
50419 3 DERAILLEUR HANGER CAP NYLOC 1
FRNT03 FRONT AXLE
70430-120B 10 FRONT AXLE, 120 x 12mm BOLT ON, 5mm HEX 1
DERA04 DERAILLEUR HANGER KIT
50420 2 REAR HANGER 12mm BOLT ON 1
50419 3 REAR HANGER CAP 1
FRNT01 FRONT DERAILLEUR KIT
70124 8 FRONT DERAILLEUR BRAZE ON HANGER 1
70125 9 FD BRAZE ON HANGER SCREW 2
FRAM06 FRAME PROTECTION KIT
DWNT01 16 DOWN TUBE CAP 1
CHAN06 15 CHAIN STAY PROTECTION CHAMOIS 1
CABL08 CABLE FIT CLIP KIT - CHAMOIS HAGAR
FDEX01 11 FRONT DERAILLEUR EXIT PORT PLUG, RUBBER 1
LDPR01 12 SOLID PORT PLUG, PLASTIC 4
CABL04 13 CABLE FIT CLIP 4mm, PLASTIC 5
CABL05 14 CABLE FIT CLIP 5mm, PLASTIC 2
SEA-CLP-ALL SEAT POST CLAMP, 30.9
50348 5 SEAT CLAMP 30.9mm W/ EVIL LOGO 1
WATE01 WATER BOTTLE BOLT KIT - CHAMOIS HAGAR
M5XP02 7 ALLOY WATER BOTTLE BOLTS 16mm 22
M5XP01 17 ALLOY WATER BOTTLE BOLTS 7mm 14
CANE04 CANE CREEK EVIL GRAVEL HEADSET
CAA2031K-01 18 CANE CREEK 40 SERIES EVIL GRAVEL HEADSET 1
PART SPECIFICATIONS
EXP.REF ITEM PART NO. TORQUE
3 DERAILLEUR HANGER CAP NYLOC 50419 85 in-lb (. Nm)
4 REAR AXLE, 166 x 12mm, M12 x 1.5 50430-166 5 in-lb (8.4 Nm)
5 SEAT CLAMP 30.9mm W/ EVIL LOGO 50348 44 in-lb (5 Nm)
7 ALLOY WATER BOTTLE BOLTS 16mm M5XP02 8 in-lb (2 Nm)
9 FRONT DERAILLEUR BRAZE ON HANGER SCREW 70125 8 in-lb (2 Nm)
1 FRONT AXLE, 120 x 12mm BOLT ON, 5mm HEX 70430-120B 84- in-lb ( -2.5 Nm)
17 ALLOY WATER BOTTLE BOLTS 7mm M5XP01 8 in-lb (2 Nm)
TORQUE SPECIFICATIONS
EVL highly recommends to use  torue wrench when ssembling or tuning ny prt of
your bike. Here is  list of specific items with their torue specs. Torue specifictions
cn lso be found on bike prts. t's importnt to note tht over tightening bolts cn
cuse dmge to the bike.
FIND OUT MORE AT EVIL-BIKES.COMBLEED BLACK, RIDE EVIL
