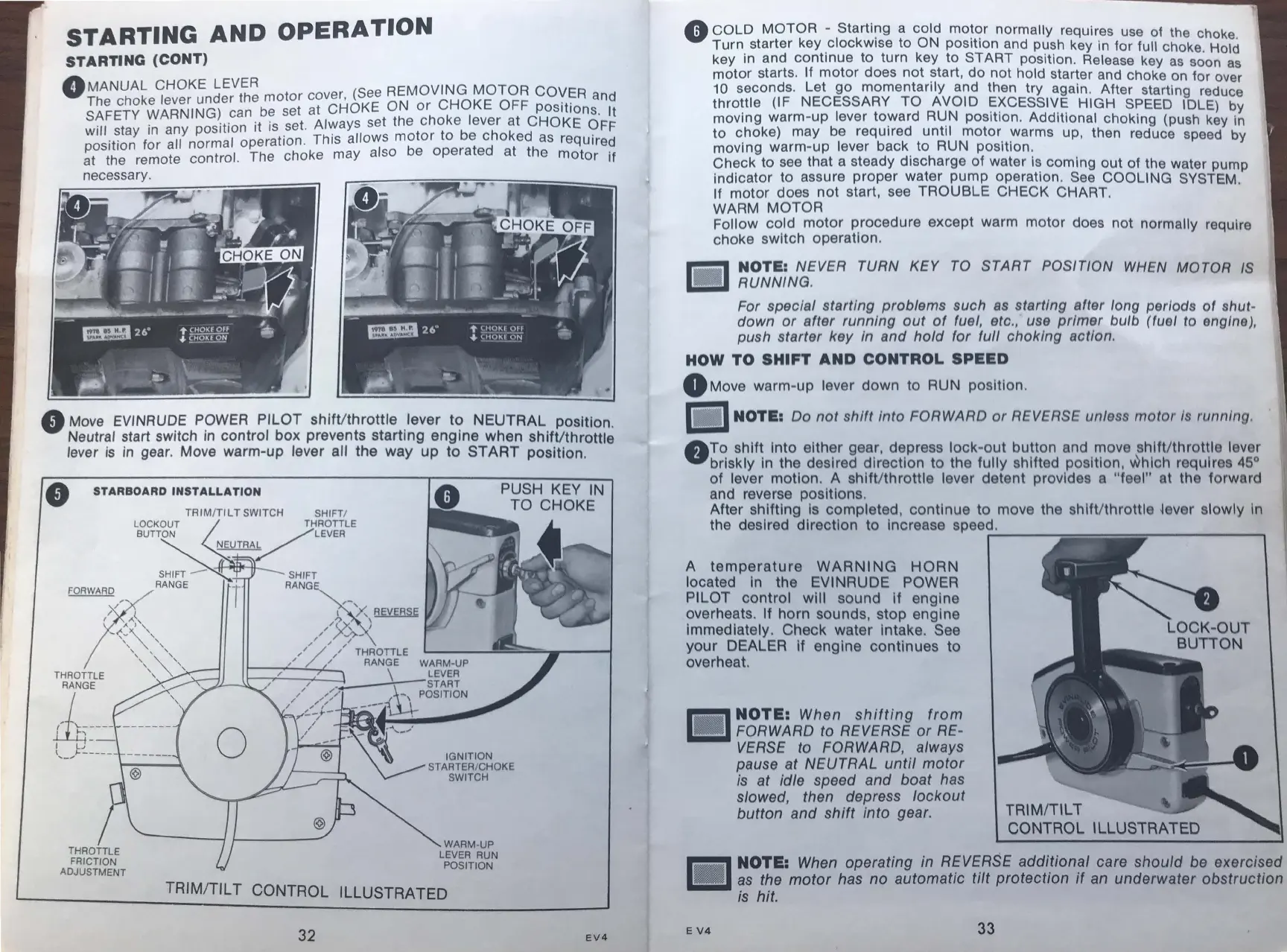

STARTING
AND
OPERATION
STARTING (CONT)
•
MANUAL CHOKE
LEVER
The
choke lever under the motor cover,
(See
REMOVING MOTOR COVER
and
SAFETY
WARNING)
can
be
set at CHOKE
ON
or
CHOKE OFF positions. It
will
stay
in
any position it
is
set.
Al~ays
set the choke lever at CHOKE
<?FF
position for all normal operation. This allows motor to
be
choked
as
required
at
the
remote control. The choke may also
be
operated at the motor if
necessary.
0
Move
EVINRUDE
POWER
PILOT
shift/throttle
lever
to
NEUTRAL position.
Neutral start switch
in
control box prevents starting
engine
when shift/throttle
lever
Is
in gear. Move warm-up lever all the
way
up
to
START
position.
0 STARBOARD INSTALLATION
IGNITION
STARTER/CHOKE
SWITCH
TRIM/TILT
CONTROL
ILLUSTRATED
32
EV4
O COLD MOTOR - Starting a cold motor normally requires
use
of the choke
Turn starter key clockwise to
ON
position and push key in for full choke. Hold
key in and continue to turn key to START position. Release key
as
soon
as
motor starts. If motor does not start, do not hold starter
and
choke
on
for over
10
seconds. Let go momentarily and then try again. After starting reduce
throttle
(IF NECESSARY TO AVOID EXCESSIVE HIGH
SPEED
IDLE)
by
moving warm-up lever toward RUN position. Additional choking (push
key
in
to choke) may
be
required until motor warms up, then reduce
speed
by
moving warm-up lever back to RUN position.
Check to
see
that a steady discharge of water
Is
coming out of the water pump
indicator to assure proper water pump operation.
See
COOLING
SYSTEM
.
If
motor does not start,
see
TROUBLE CHECK CHART.
WARM
MOTOR
Follow
cold motor procedure except warm motor does not normally require
choke switch operation.
liil
NOT :
NEVER
TURN
KEY
TO
START POSITION
WHEN
MOTOR
IS
RUNNING.
For
special starting problems such
as
starting after
tong
periods of shut-
down or after running out
of
fuel,
etc.,
use primer bulb (fuel
to
engine),
push starter key
In
and hold for full choking action.
HOW TO SHIFT AND CONTROL SP D
8Move
warm-up lever down to RUN position.
CJ
NOTE:
Do
not shift Into
FORWARD
or
REVERSe
unless motor
Is
running.
ATo
shift Into either gear, depress
lock-out
button and move
shift/throttle
lev r
Vbrlskly
In
the desired direction to the fully shifted position, which requir s
45°
of
lever motion. A shift/throttle lever detent provides a ''feel" at the forw rd
and reverse positions.
After shifting
Is
completed, continue
to
move the shift/throttle
~ev
r slowly
In
the desired direction to Increase speed.
,...----~
A
temperature
WARNING
HORN
located
In
the EVINRUDE POWER
PILOT control will
sound If engine
overheats.
If horn sounds, stop engine
immediately. Check water
Intake. See
your
DEALER
if
engine continues
to
overheat.
lEI
NOTE:
When
shifting
from
~
FORWARD
to
REVERSE
or
RE-
VERSE
to
FORWARD, a/ways
pause at NEUTRAL until motor
is
at idle speed and boat has
slowed, then depress lockout
button and shift into gear.
TRIM/TILT
CONTROL
ILLUSTRATED
r;;;a
NOTE:
When
operating
in
REVERSE
additional care should be exercised
1!/111
as
the motor has no automatic tilt protection
if
an
underwater obstruction
is hit.
E
V4
33
