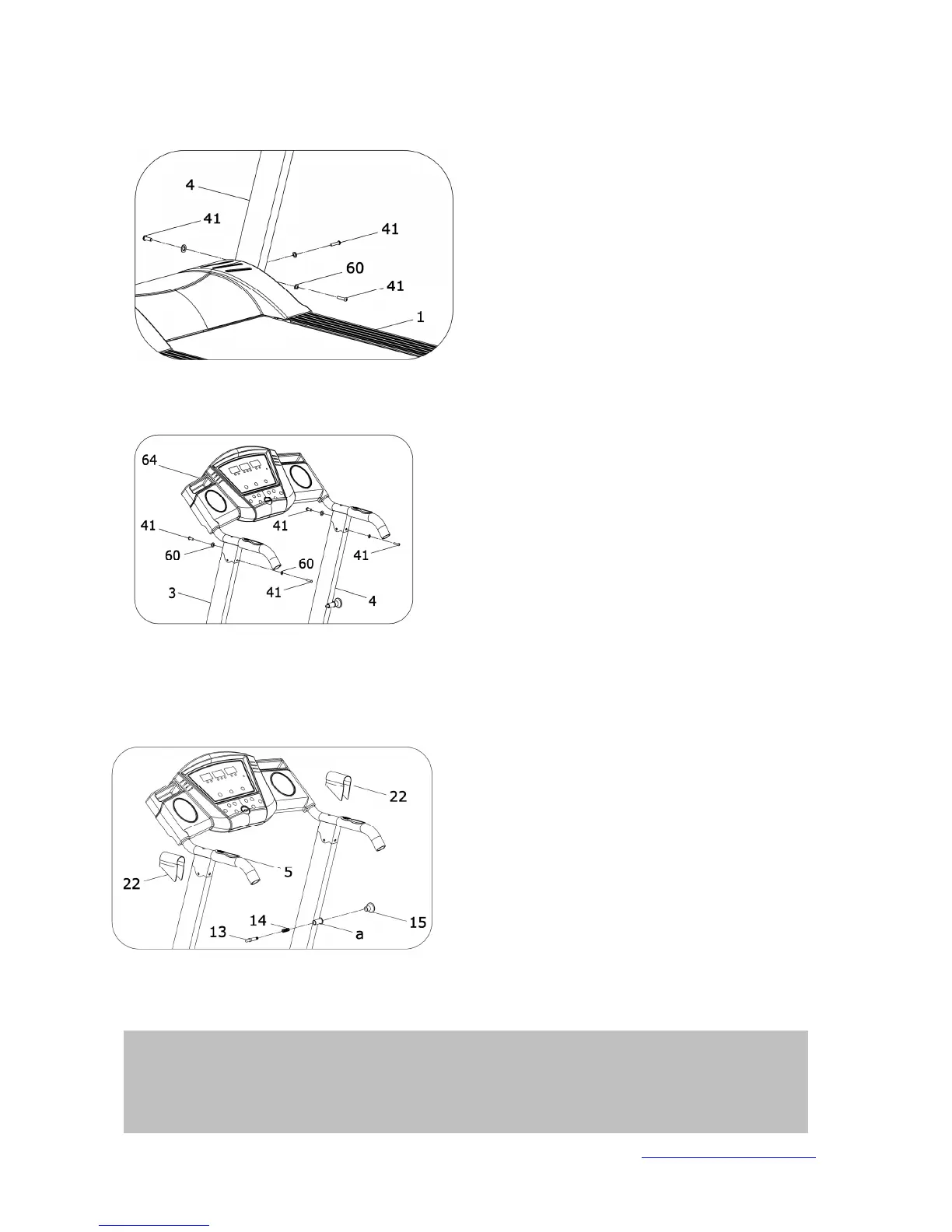

ASSEMBLY STEP 4:
ASSEMBLY STEP 5:
ASSEMBLY STEP 6:
Slide right upright (4) onto MAIN
FRAME (1)
To attach the upright posts (4) to
the frame use bolt (41) and lock
washer (60) using the 5# Allen
wrench
Note: Support the right upright
with your hand to avoid injury.
ATTENTION: complete the assembly as pictured above and tighten all bolts.
Before you use the treadmill read the instructions carefully.
Take bolt (41) and lock washer (60)
and insert them into R&L upright
(3,4). Using the 5# Allen wrench
Then lock the COMPUTER (64)
Insert the UPRIGHT COVER (22)
onto the L&R handle bar (5)
1. Slide the pulling pin(13)into the
pulling pin cover, and the pulling
pin bushing a, and then screw
the15 into the pulling pin.
2. Insert the UPRIGHT COVER(22)
onto the L&R handle bar (5)
To Next Page
