This manual will give you all the information needed to both install and operate your
Nexus 310. First step is to establish which of the two methods of installation you intend to
use. The Nexus 310 you have bought comes complete with all it requires to connect up
in either of the following congurations:-

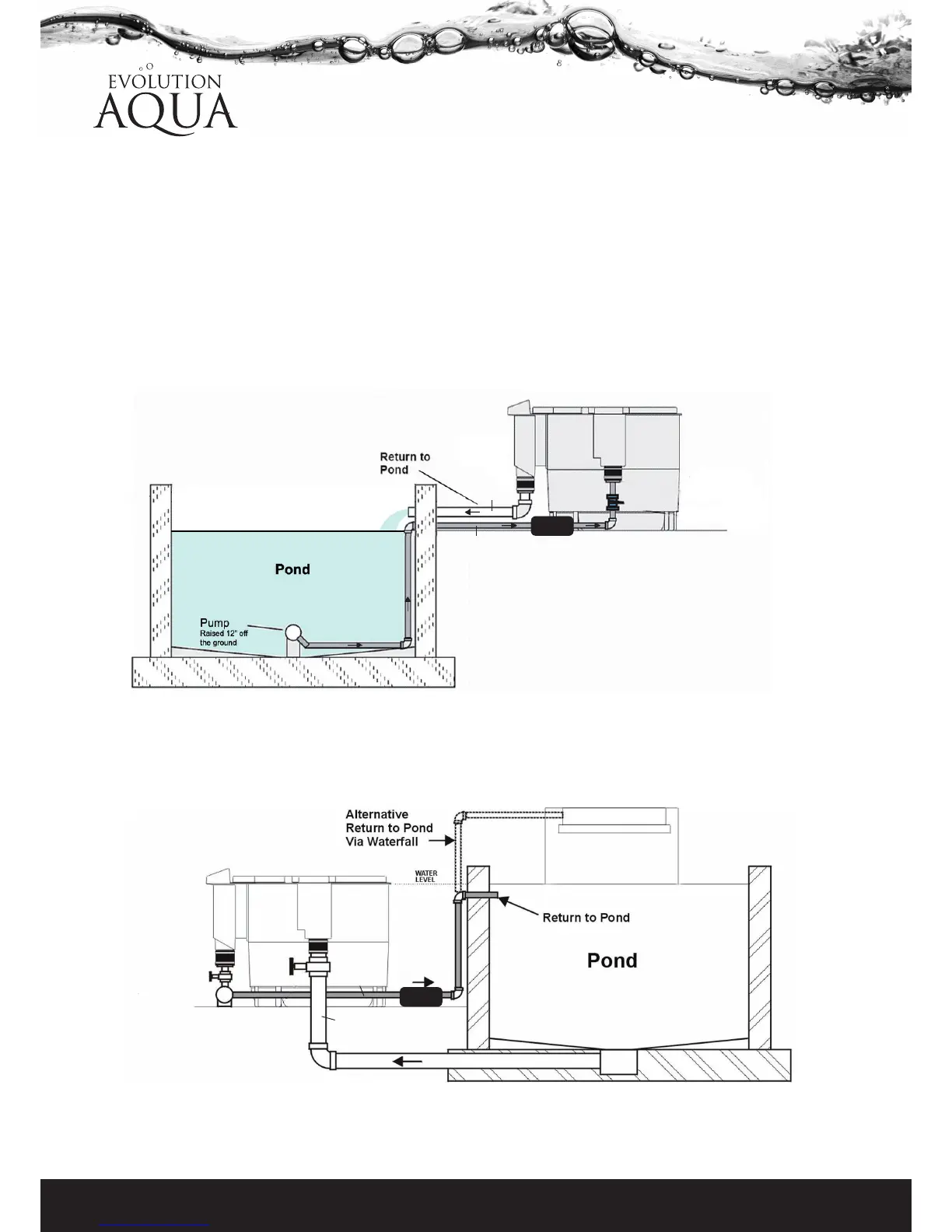

ARE YOU PUMP FED? By this we mean that if your pump is going to be used to supply the
water to the lter, and the ltered water then returns back into your pond via gravity,
i.e. down a waterfall, or through a large diameter pipe, this is referred to as PUMP FED
(i.e. the water is fed to the lter using a pump).
ARE YOU GRAVITY FED? By this we mean that your pump is going to be used to return
the ltered water to the pond and therefore your lter will be supplied by gravity via a
larger diameter pipe. In this situation the water level in the lter will be at the same level
as the pond.
ENSURE THAT ONCE YOU HAVE ESTABLISHED WHICH SET UP YOU WANT
TO USE, REFER ONLY TO THE CORRECT SECTION IN THIS MANUAL.
IMPORTANT PLEASE READ BEFORE
CONTINUING WITH INSTALLATION
Water
Water
Pump
4” Pipe
4” Pipe
4” Pipe
1½” or 2” Pipe
1½” or 2” Pipe
UV
UV
