EVO42
17
www.evolutionsteel.com
To ensure Coolant/Lubrication flow:
• ReleasetheCoolant/Lubricationbottlecap.Thiswillpreventa
vacuumbeingcreatedthatwillstoptheCoolant/Lubricationuid
from flowing.
• GentlysqueezetheCoolant/LubricationbottletoforcetheCoolant/
Lubrication through to the cutter.
• Lowerthecuttingheadtowardstheworkpieceuntilthecutter
teeth touch the work piece and the pilot pin is depressed, then
raise the cutting head.
• ContinuethisprocessuntiltheCoolant/Lubricationuidis
flowing onto the work piece.
OPERATION EVO 42
Note: This machine is fitted with the latest Anti Stall Technology
(AST).
If the cutting forces result in the motor stalling, the electronics will
switch off the motor, preventing burnout. The magnet will remain
energised holding the machine safely in position.
To reset after AST activation:
• SetthemotorswitchtotheOFF position.
• Backoffthecutterfromthematerial.
• Wait 3-5 seconds before restarting by switching the motor
switch to the ON position.
Note: If after activation of the AST system or at any other time during
operation the machine fails to restart, or there is no magnetic adhesion

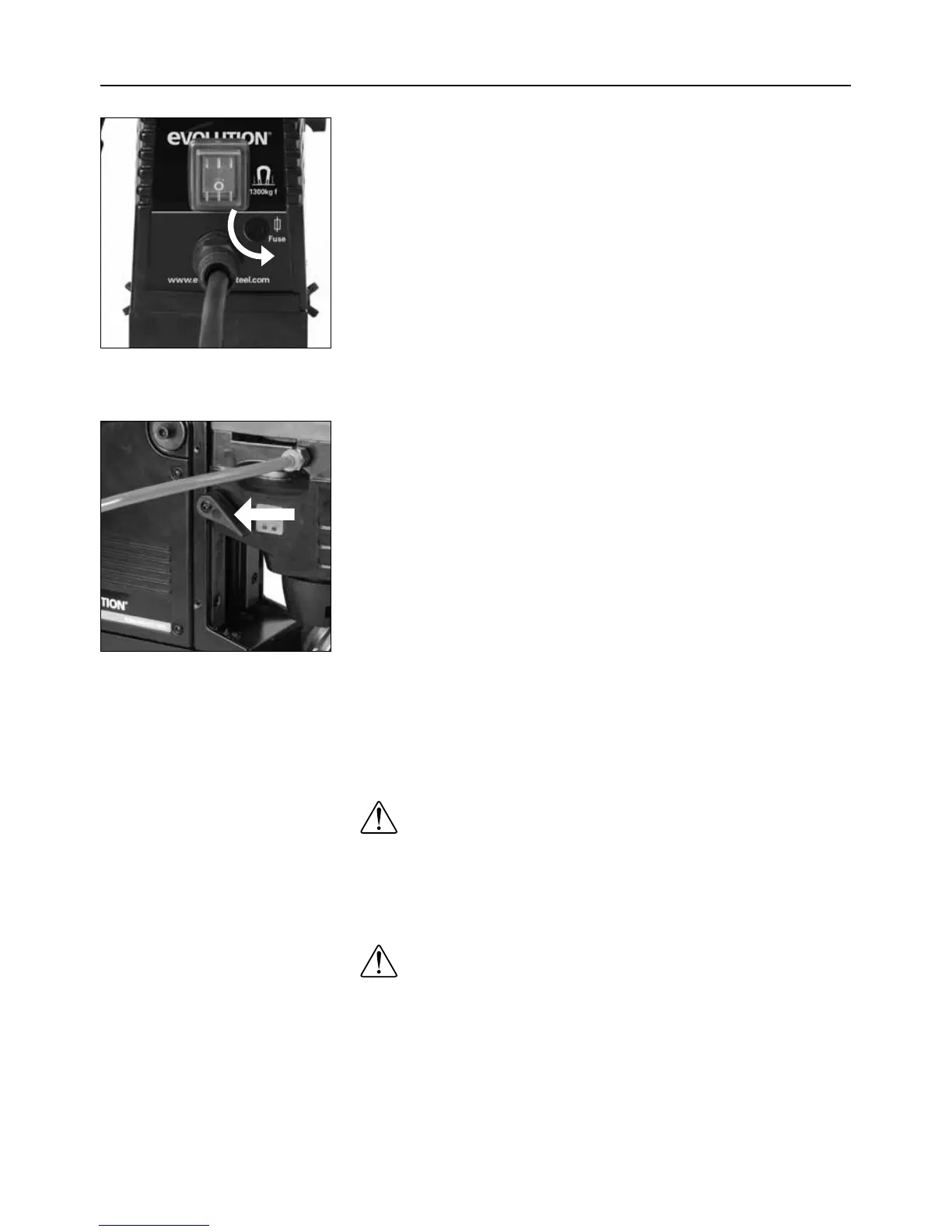

check the 240V/10A or 120V/16A (5x20mm) Surge Fuse. (Fig. 8) If it
has blown, it must be replaced with an identical type.
MAKING A CUT
WARNING: Ensure that the secondary slide is locked. The
locking lever has a Left Hand thread and is located on the
lower Left Hand side of the gearbox housing. (Fig. 9)
This must be fully tightened and will prevent any lateral movement
of the cutting head during the cutting operation.
WARNING: On completion of the cut the pilot bin will eject
the material slug. This slug will be very hot with sharp
edges. Use protective gloves when handling the slug.
If the slug fails to be ejected from the cutter this could be caused
by the slug becoming twisted inside the cutter. To release the slug
lower the cutter onto a flat area of the work piece, this will square
up the slug and allow it to be ejected.
AUXILIARY 13mm 3 JAW CHUCK. (UK Market only)
This machine is supplied with an auxiliary 3 jaw chuck to enable
the use of standard parallel shank twist drill bits.
Fig. 8
Fig. 9
