Evolution EVOE10GX User Manual

EN
5

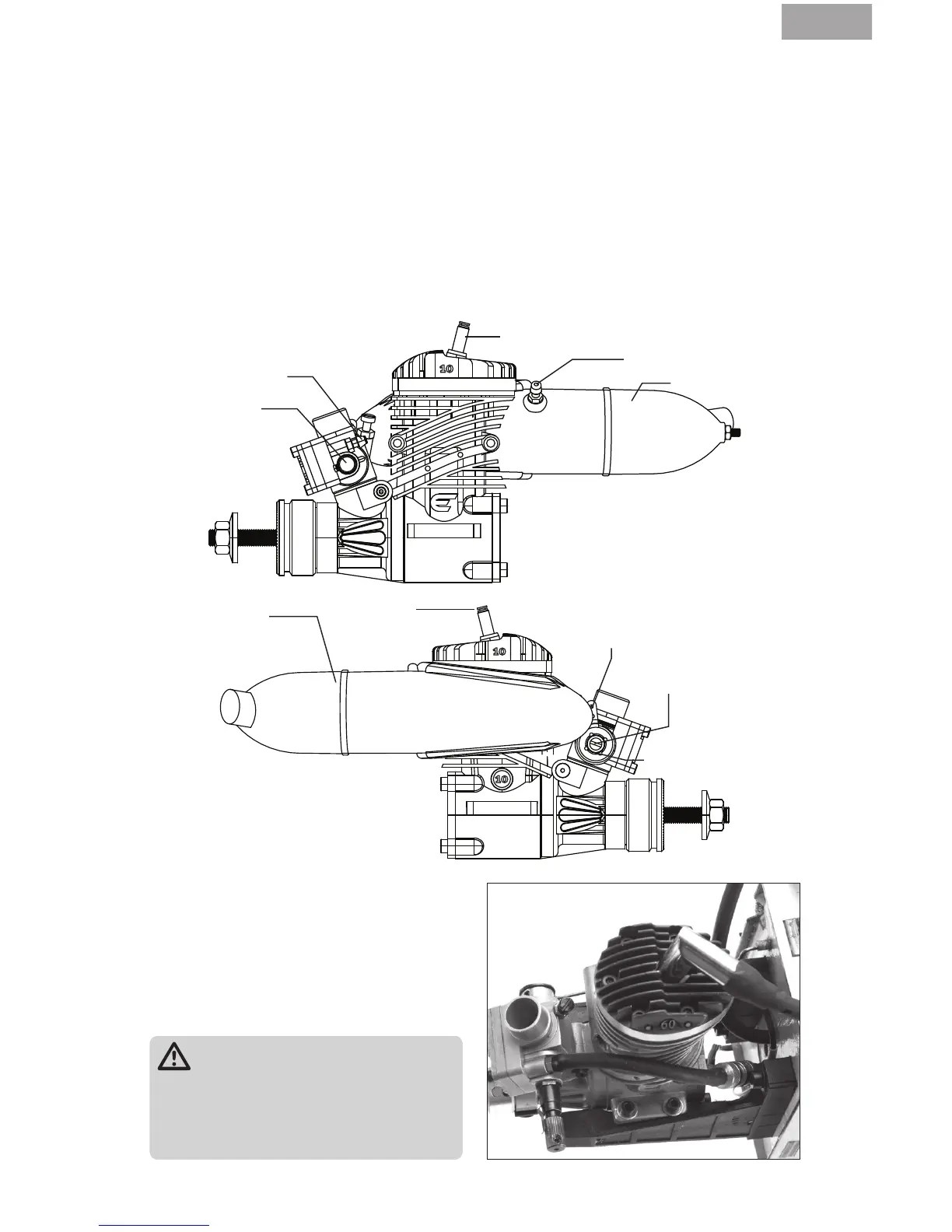

High-Speed
Needle
Muffler
Spark Plug
Muffler Nipple
Fuel Nipple
Installing the Engine
1. Secure the engine mount on the airplane
firewall. Tighten the engine mount screws
in the firewall.
2. Install the engine on the engine mount
according to the airplane manufacturer’s
instructions.
WARNING: Tighten all engine
mounting screws before each flight. If
you do not tighten the engine
mounting screws, the screws may
vibrate loose and cause the engine to
separate from the fuselage.
Low-Speed Needle
Needle Limit Collar
Muffler
Spark Plug
Throttle Arm
Included Content
ENGINE
• Mufer (EVO10601)
• Mufer Screws & Gasket (EVO100E46A)
• Spark Plug (EVOG10350)
• Evolution/Spektrum
™
Telemetry RPM
adapter cable (EVOA107)
• Med Gas Fuel Tubing (EVOA104)
• In-Line Fuel Filter (EVOA105)
• In-tank Felt Filter/Clunk (EVOA106)
OPTIONAL ITEMS
• Tachometer (HAN156)
• Propeller 10 x 6 (EVO10060) for break-in;
12 x 6 (EVO12060) for normal ight
• EVOM1 High Performance Tuned Mufer:
EVO46-60
