Evolution EVOE10GX User Manual

EN
6
1. Use a secure method to attach the
throttle linkage to the throttle arm on the
carburetor.
2. Power on the transmitter and receiver.
3. Move the throttle stick to the middle stick
position.
4. Adjust the throttle arm so the arm is 90
degrees to the throttle pushrod.
5. Center the throttle servo. Install a servo arm
with a hole 11mm (7/16 in) from the center
of the arm.
6. Use a clevis to attach the throttle linkage to
the servo arm.
11mm
1.5mm

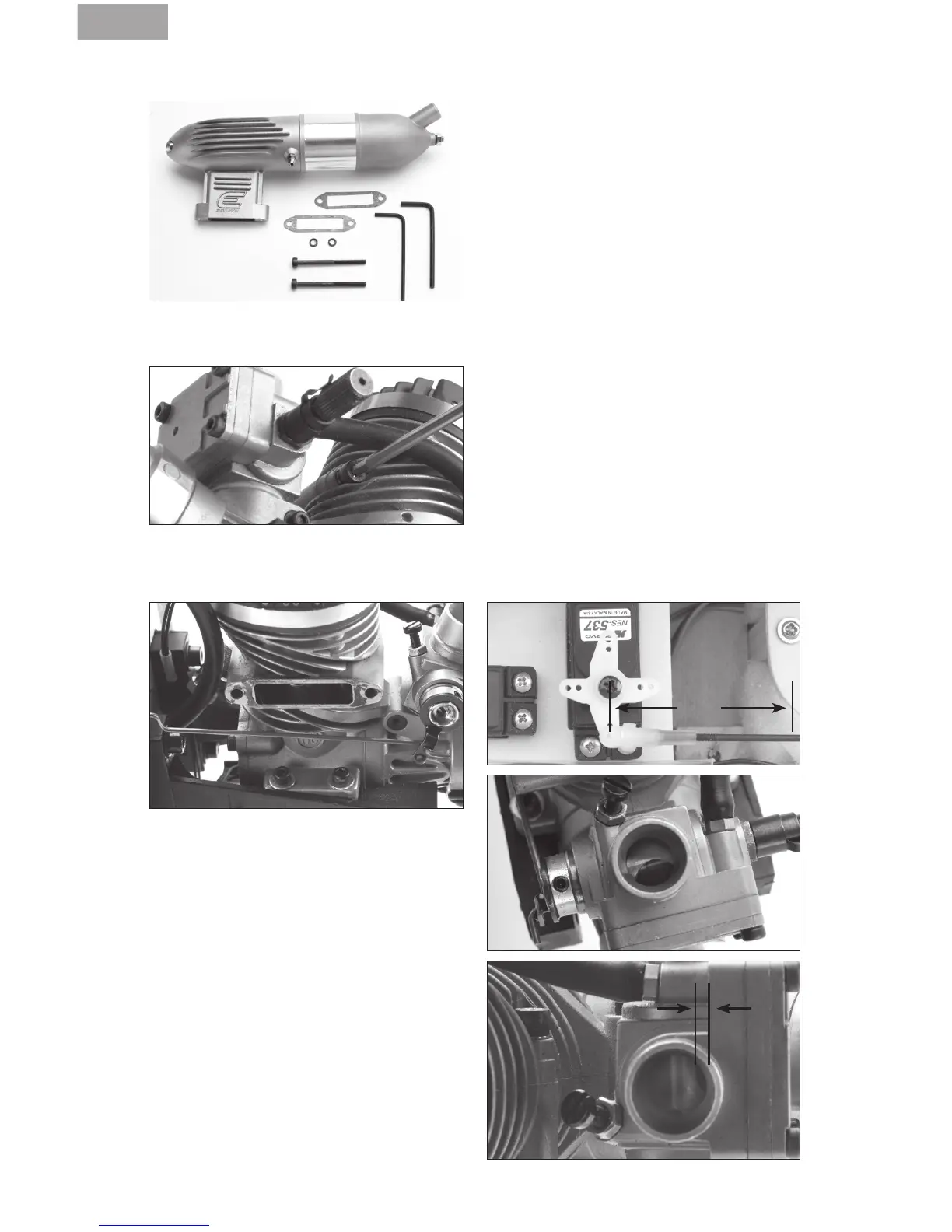

Installing the Muffler
The muffler mounting accessory package in-
cludes mounting screws (2), lock washers (2),
muffler gaskets (2) and L- wrenches (2).
1. Put a lock washer on each of the muffler
screws. Push the muffler screws through
the cylinder head.
2. Place the muffler gasket over the engine
mounting screws.
3. Align the mufer gasket with the exhaust
opening and the muffler mounting screws.
4. Tighten the muffler screws.
Important: Tighten the muffler screws after
five tanks of fuel. The muffler screws may
loosen from heat and vibration.
It is important that you tighten the muffler
through-bolt after each of the first three,
full tank engine runs. The heat will cause ex-
pansion of the through-bolt and muffler body
parts. After the third tightening, no further
muffler loosening should occur.
To tighten the muffler through-bolt:
1. Loosen the muffler lock nut.
2. Tighten the muffler through-bolt screw.
3. Tighten the mufer lock nut.
Connecting the Throttle Linkage
