Evolution RAGE3+ User Manual

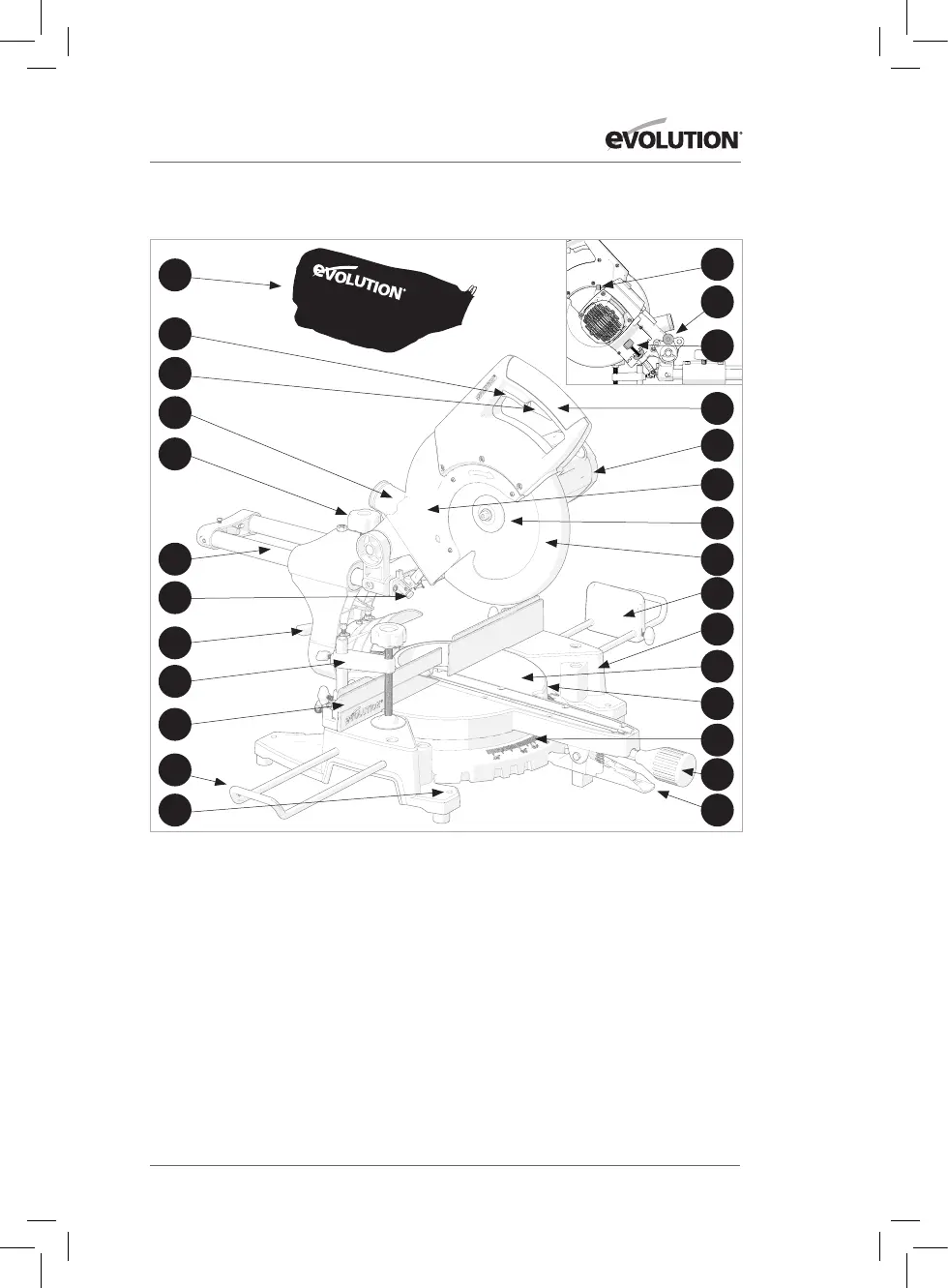

OVERVIEW OF MITRE SAW
2
3
16
17
1
24
23
20
18
19
5
4
8
7
6
26
25
27
11
22
21
10
9
12
13
14
15
1. Dust Bag *
2. On/Off Trigger Switch
3. Blade Guard Release Trigger
(EU Models)/Lock-Off Button
(Canadian Model)
4. Extraction Port
5. Slide Carriage Locking Screw
6. Carriage Slides
7. Laser Guide
8. Bevel Lock Lever
9. Hold Down Clamp
10. Sliding Fence
11. Work piece Support *
12. Mounting Hole (X4)
13. Arbor Lock Button
14. Head Latching Pin
15. Depth Gauge
16. Handle
17. Motor
18. Upper Blade Guard
19. Blade

20. Retractable Lower
Blade Guard
21. Repeat End Stop *
22. Base
23. Table Top
24. Rotary Table
25. Mitre Angle Scale
26. Mitre Locking Handle
27. Positive Stop Locking Lever
*Supplied as original equipment
on the RAGE3+ and RAGE3-S+
and RAGE3-S300.
3
www.evolutionpowertools.com

Evolution RAGE3+ Specifications

General

Bevel Capacity	45°
Weight	5.9 kg
Bore	25.4mm
Max. Box Section (Wall Thickness)	3mm
Bevel Range	0° - 45°
