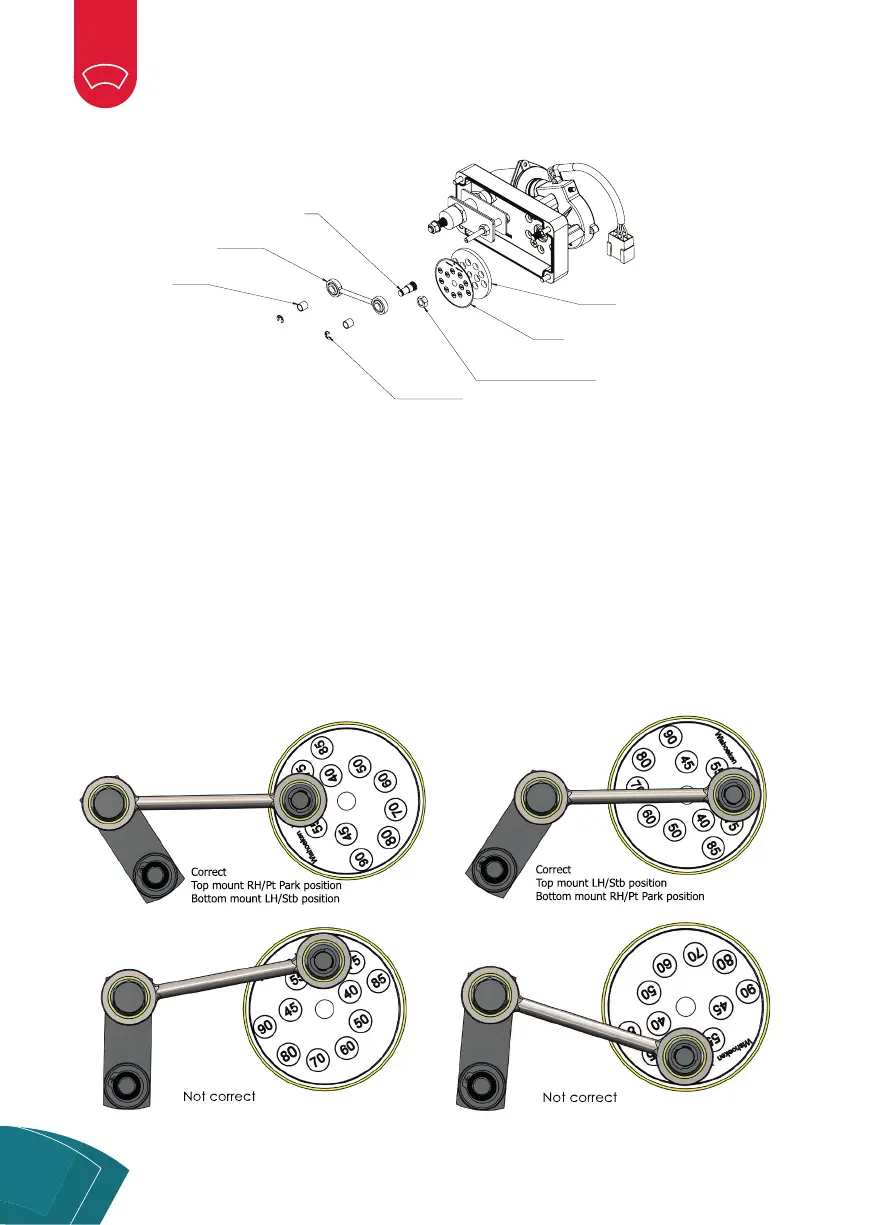

5.3.2 Adjusting the park position
1. Place the disc on the shaft, parking right or left (see drawing in paragraph 3.4 and
below for reference);
2. Place the motor lever in such a way that it forms an almost straight line with the dog
bone (see drawing);
3. Tighten the disc well and place the wiper in the bulkhead;
4. Run the motor briefl y to check performance;
5. Adjust the wiper arm to the correct length, if necessary;
6. Install the wiper arm in correct parking position;
7. If necessary repeat steps 5 and 6 to position wiper arm in correct parking position.
Nut M8
Tightening 17Nm/12ft. lbs
Dogbone
Retaining Ring
Arc disc
Half Nut M8
Tightening 17Nm/12ft. lbs
Sticker
Nut M8
Tightening 17Nm/12ft. lbs
Bearing
Pin
Nut M10
tightening 33Nm/24ft. lbs
14
MANUAL WIPER SYSTEMS
