Exalto MD1 232BD User Manual

7. Drawings & Schematics

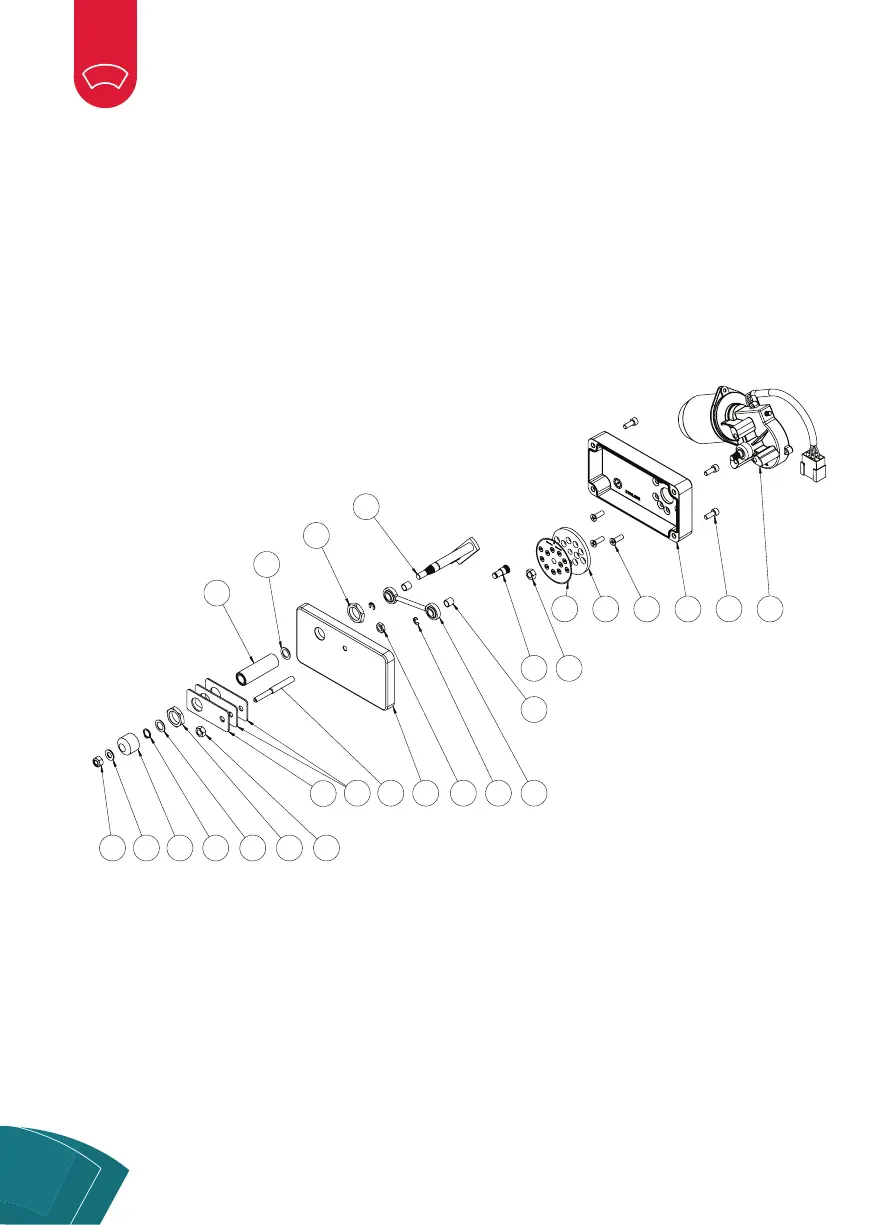

7.1 Assembly overview
15 16 17 12 11 3 23
9
8 7 2 4 22 10
19
18 23
21
20 13 1
14
24
6
3
11
5
REVISIONS
REV. DESCRIPTION DATE NAME
A Did Severals chances about Bolt & Nuts 12-3-2021 RE
Pos. Park/QTY. Description PartNo/Note Material Weight
24 1 XP2 motor 12Volt 30Nm 2100.3012 - 1.300
23 2 Nut M8 0934A408 1.4401 - SS316 0.005
22 2 circlip 6mm 6799A4006 1.4401 - SS316 0.000
21 1 Wishoekschijf sticker 2100.931 PE High Density 0.000
20 1 Wishoekschijf 2100.930 1.0037 (S235JR) 0.269
19 2 PA6.6 bearingØ8×10×10 2100.926 PA66 - GF30 0.000
18 1 Wishoekpen 2100.920 1.4401 - SS316 0.013
17 1 Weathercap M20 2100.361 Rubber 0.005
16 1 Washer 0125A408 1.4401 - SS316 0.002
15 1 Self-locking nut 0985A408 1.4401 - SS316 0.006
14 3 Hexagon socket head cap screw 0912A406016 1.4401 - SS316 0.007
13 3 SS Flathead bolt M6×16 0965HA406016 1.4401 - SS316 0.005
12 1 circlip 12mm 0471A2012 1.4401 - SS316 0.000
11 2 filling ring 2100.400 1.4401 - SS316 0.001
10 1 Connecting rod Ø10 L=85mm 2100.936 - 0.050
9 1 Sluitplaat rvs 235KK-KJ zwart gecoat 2100.480 1.4401 - SS316 0.038
8 2 Sluitplaat Nitril 223BS 50mm 2100.490 NBR 0.005
7 1 Idler spindle M8, Bulkhead fitting wd=20mm 2100.446 1.4401 - SS316 0.025
6 1 Wisas Ø12 + lever st38 wd=20 2100. 364 1.4401 - SS316 0.131
5 1 Liner M20x1mm 2100.326 Brass 0.092
4 1 Nut M8 flat 0439A408 1.4401 - SS316 0.003
3 2 Nut M20x1 2100.350 1.4401 - SS316 0.014
2 1 Wisserbehuizing wisas zijde 2100.890 1.0577 - S355J2 0.775
1 1 Wisserbehuizing Motorzijde 2100.895 1.0577 - S355J2 1.009
18
MANUAL WIPER SYSTEMS
