REV A 3-4 124505
8. Push down on the catcher frame and tighten the lower
frame bolts. Pushing down on the catcher frame while
tightening these bolts will provide the correct tension
on the tie rods. Figure 3-3
NOTE: Check for mower air cleaner access. Adjust the
catcher frame and tension rods as needed for air cleaner
servicing.
9. Attach the latch support to the catcher frame.
Figure 3-4
10. Attach the bungee latch to the latch support.
Figure 3-4
11. There is one tab located at the rear side of the deck
that will need to be bent inward. Use a hammer and
screwdriver to bend the tab inward enough to allow the
steel hooks of the bungee latch on the outlet tube to
be inserted into the slot. Figure 3-5, Figure 3-6 &
Figure 3-7

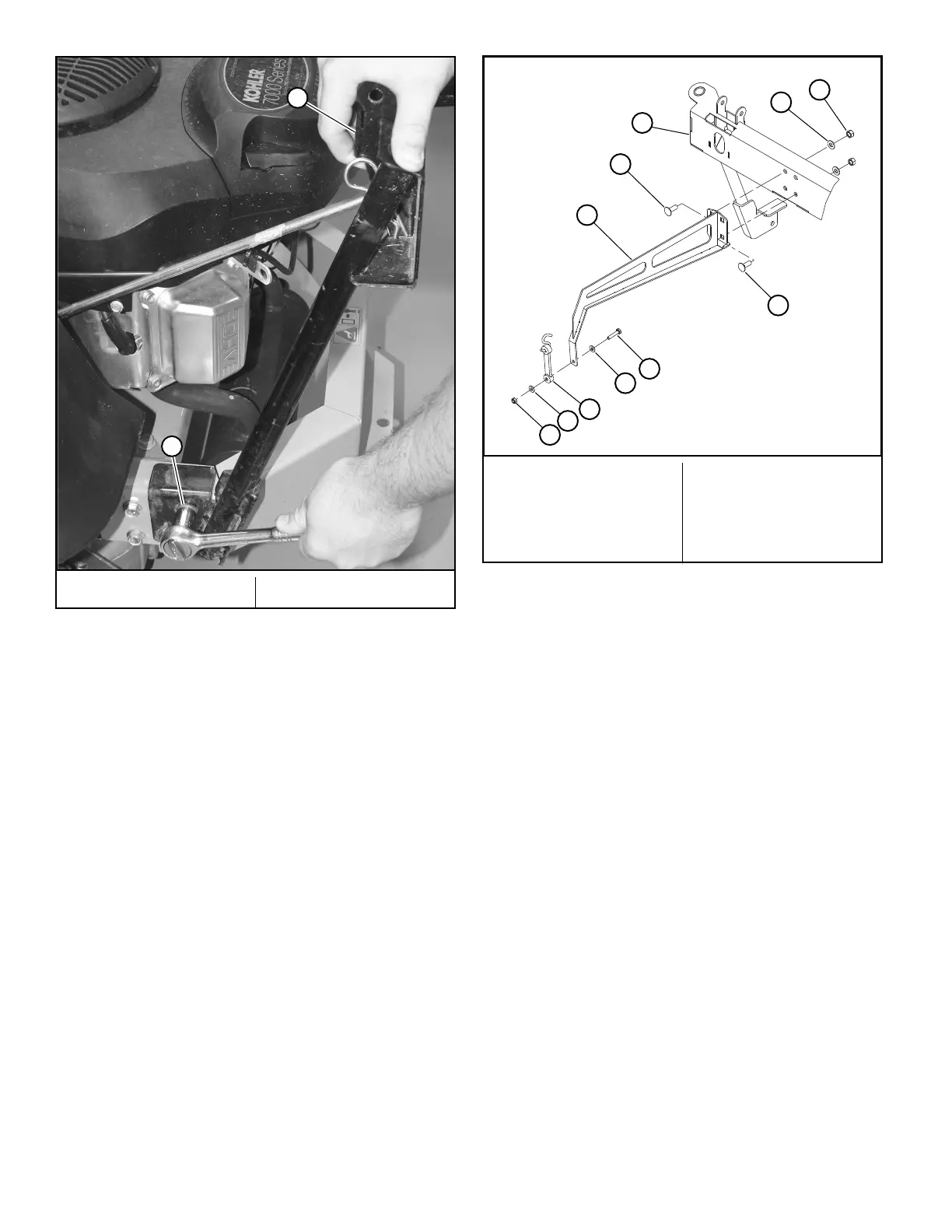

A. Push frame down here B. Tighten frame bolts
Figure 3-3
B
A
A. Latch support
B. Catcher frame
C. CB .375-16 X 1.00
D. FW .379 X .813
E. NT .375-16 HX
F. Bungee latch
G. CS .25-20 X 1.25
H. FW .281 X .625
I. NT .25-20 HX NL
Figure 3-4
A
I
H
F
H
G
C
C
B
D
E
