MANUAL PROPEL

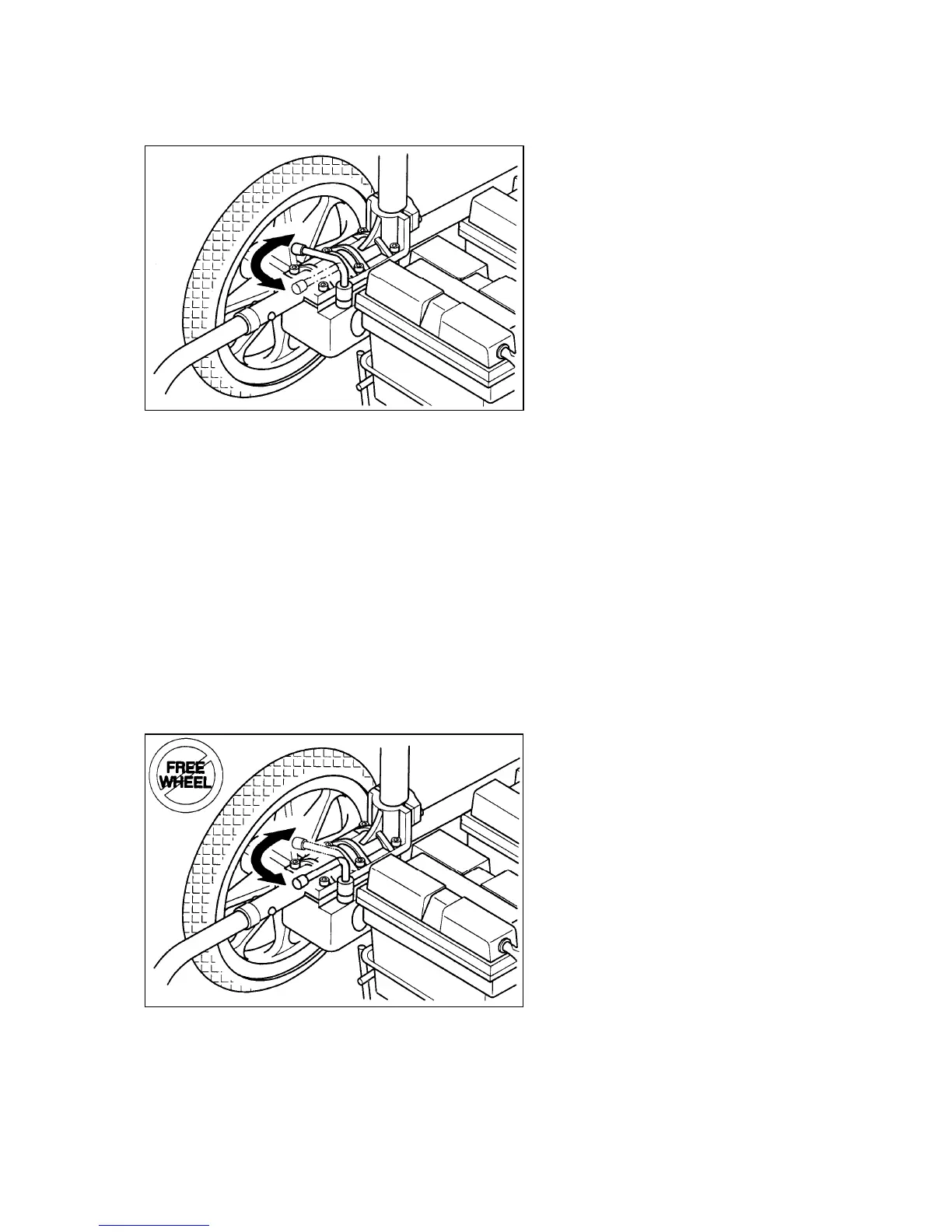

Picture 12
If the powerchair is to be pushed by hand, proceed as follows:
from behind the vehicle, turn the two uncoupling levers (picture 12) of the electric
motors outward to the side, so they are pointing toward the rear wheels.
Warning:
1. Never move the uncoupling levers while the vehicle is operating with powered
device.
2. When the electric motors are disengaged, the armature brakes and the
elctromagnetic safety brakes are out of action, ensure that the powerchair is
secured with the hand-brakes when it is parked.
When normal powered operation is to be restored, return both uncoupling levers to
normal position (picture 13).
Picture 13
Important:
The vehicle will not operate with powered drive unless both uncoupling levers are
in normal position.
