Excell XR2600 User Manual

6- ENG
A00034

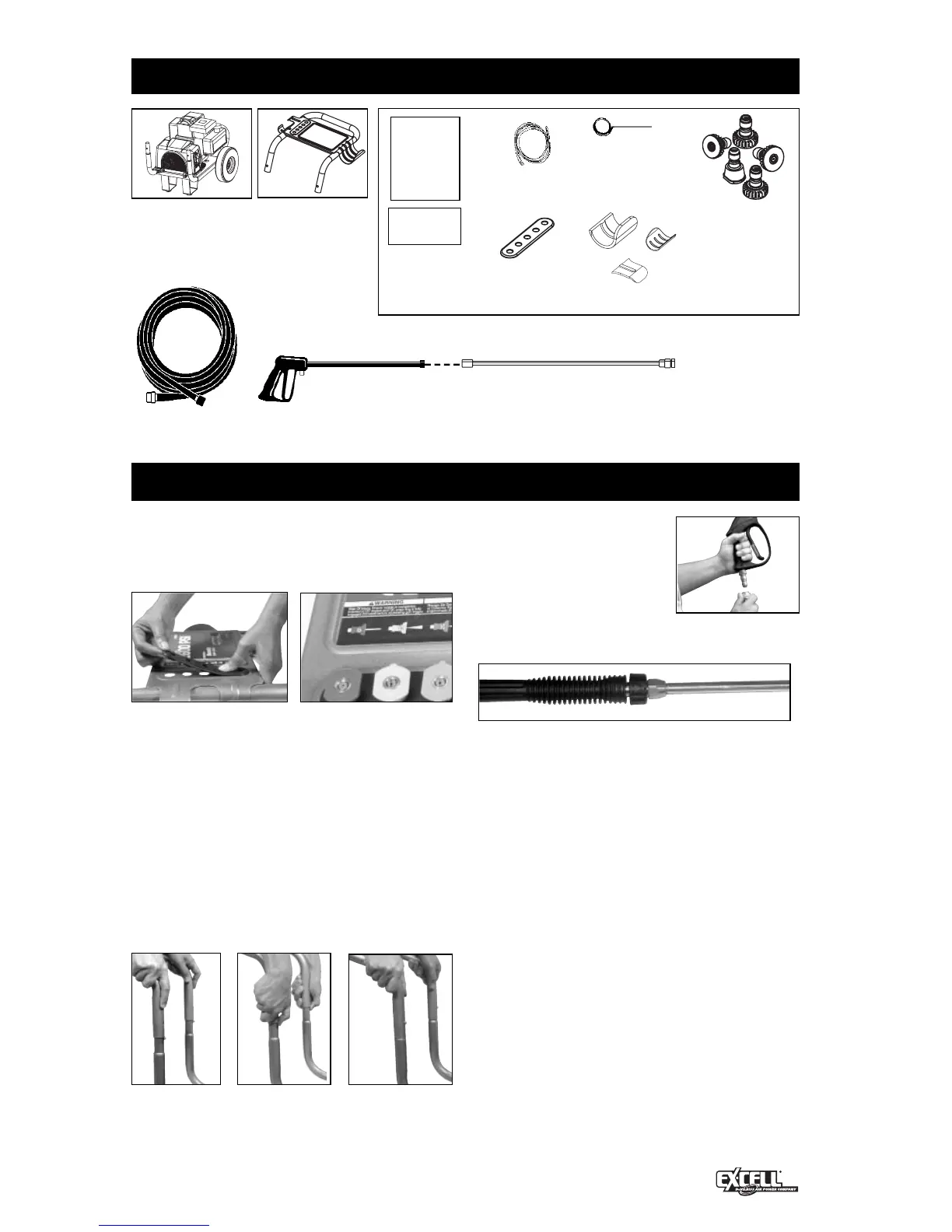

ASSEMBLY INSTRUCTIONS
NOTE: The pump on this unit is
maintenance free and requires no oil, If
there is a problem with the pump
contact an Authorized Service Center.
5. Connect wand to gun. Tighten
securely.
4. Attach high
pressure hose to
gun. Tighten
securely.
1. Place the nozzle holder onto the
panel (located on the handle
assembly) and push each nozzle
holder into place.
2. Remove five colored quick
connect nozzles from plastic bag
and insert them into correct
grommet on the nozzle holder.
NOTE: Nozzles are color coded to
match colored nozzles on panel.
3. Place handle assembly onto frame,
depress the snap buttons, and slide
the handle assembly onto the frame
until snap buttons snap into place.
CARTON CONTENTS
Bagged Parts
Nozzle
Cleaning
Tool
Engine Frame
and Wheel
Assembly
High Pressure
Hose
Chemical
Hose
Spray Gun
Quick Connect Spray Wand
Engine
Manual
Handle
English/
Spanish
Operator’s
Manual
Quick
Connect
Nozzles
Nozzle
Holder
7. Slide the formed rubber covers
onto the handle's on-board
hose and wand storage.
Formed Rubber Covers

Excell XR2600 Specifications

General

Brand	Excell
Model	XR2600
Category	Pressure Washer
Language	English
