EXCURSION HXA20K - Front Panel Layout

3
EXCURSION
CLIPPING
POWER
ALARM
MODE
MASTER &
TWIN OUT
SLAVE &
TWIN IN
GAIN HPF LPF BOOST PHASE
0-180°
REMOTELEFT RIGHT
LOW LEVEL INPUT
20000 WATT x 1CH COMPETITION AMPLIFIER

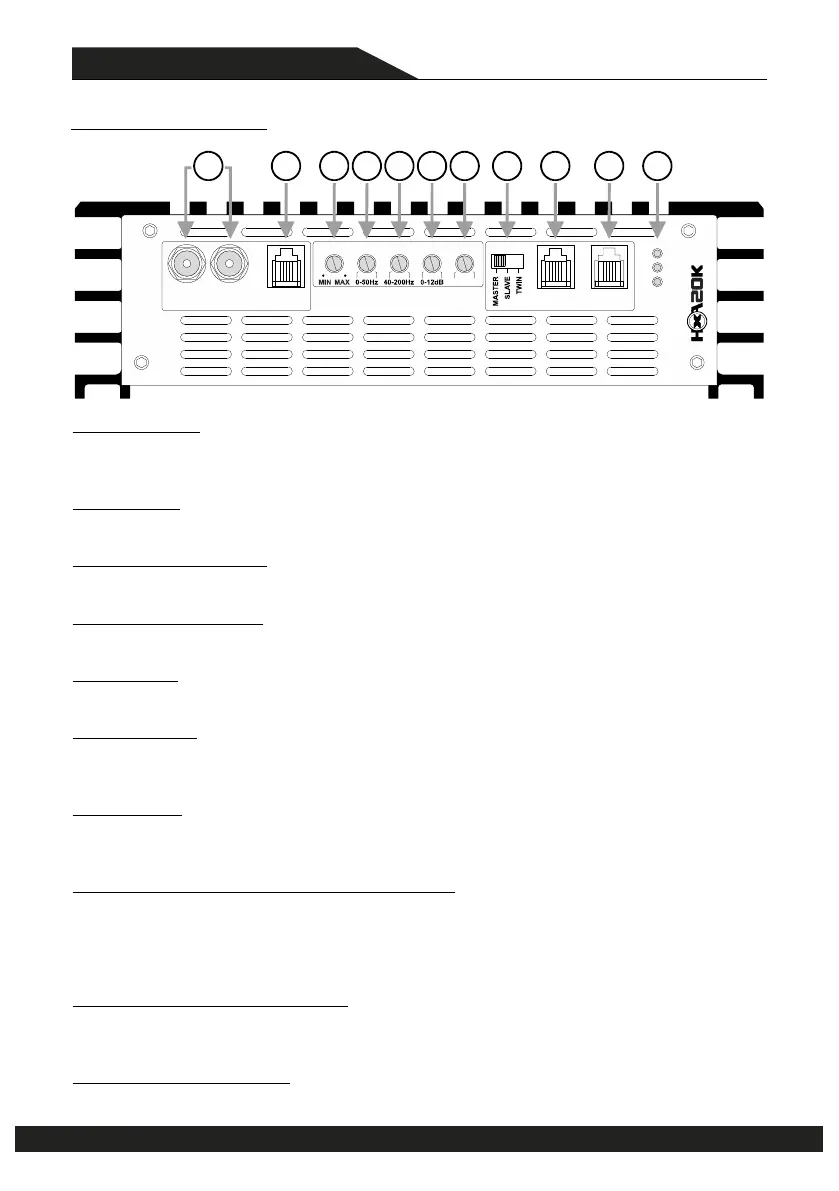

FRONT PANEL LAYOUT
1
11
2 3 4 5 76 8 9 10
1. Audio InputRCA
These Input jacks connect with your source unit Low Level Outputs. High quality
twisted RCA audio cables are recommended to mind possibility of disturbance the audio signal.
The Gain controle will match the amplifiers sensivity to the provided source unit signal voltage.
This knob controls the frequency x-over point from where Low Frequency can be cut out.
This knob controls the frequency x-over point from where High Frequency can be cut out.
RCA RCA
2. GAIN Control
3. ControlHIGH PASS FILTER
4. ControlLOW PASS FILTER
5. BASS BOOST
This knob adjust the 45Hz signal boost level from 0 up to 12dB. Preferable for small size cars.
This knob adjust the signal phase from 0 up to 180°. This to mind wave eliminaons at the
overlay frequency range with your Frontspeaker in your car.
6. PHASE Controle
This Switch select the Status of this Amplifer. This set the Amplifier to the MASTER or in 2nd
Ranking as the SLAVE or to the one of more possible TWIN Amplifiers.
For LINK of 2x HXA 20K Amplifier the MASTER will have control over all funconal sengs
of the SLAVE Amplifier using the cable provided. The BRIDGED Couple act as one Amplifer.
For TWIN of 2x or more HXA 20K Amplifiers the MASTER will have control over all funconal
sengs of the one or more TWIN Amplifiers, using the cable provided.
When device is powered ON, the POWER LED will turn on green. When device enters into
protecon, the ALARM LED will turn on red. When signal is clipped, the CLIP LED turn yellow.
The Volume of your Mono Amplifier can get adjusted via remote controle from driver seat.
7. MODE Switch
8+9. MASTER & SLAVE and TWIN - INPUT and OUTPUT
10. POWER, ALARM & CLIPPING Indicator
11. - Bass Level ControlREMOTE
