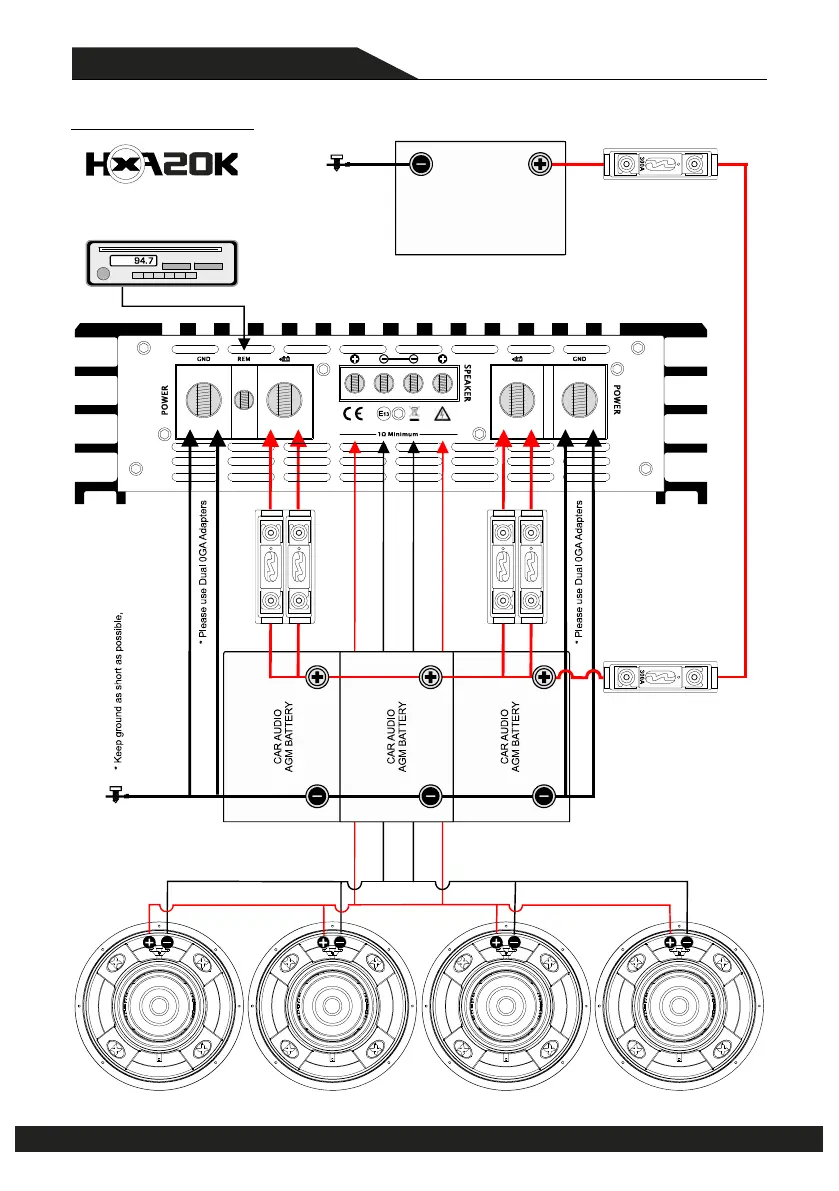

EXCURSION HXA20K - Wiring Diagramm

EXCURSION
5
* Equivalent impedance not less 1Ohm to avoid damages.
* HXA20K provide Double 8 GA +/- Speaker Terminals
4Ohm 4Ohm 4Ohm 4Ohm
HEAD UNIT
Remote turn on
GROUND
* Please verify Performance Status of your Main Battery and replace on demand
M A X
30cm
250A250A 250A250A
GROUND
MAIN BATTERY
M A X
30cm
* We recommend a of 300AH additional 12V AGM
Battery Storage as close to every HXA20K Amplifier possible.
minimum
WIRING DIAGRAMMW
M A X
30cm
M A X
30cm
