11. Hi-pass filter (Full range)
This knob controls the frequencies played for the front channels. Low frequencies can be cut
out from OFF to 200Hz. At OFF posion, none low frequency cut out, that means full pass.
12. X-over mode and frequency Control (Full range)
These controls allow control over the frequencies played for the rear channels. There is an
opon for Low Pass, Full Range or High Pass. In LP or HP mode, the crossover frequency can be
tuned from 20Hz to 250Hz by the frequency knob.
13. Power Indicator
This LED will light up when amplifier works properly.
14. Protecon Indicator
The red LED will light up and will be flashing if there is a fault presented to the amplifier.
Please disconnect the amplifier and resolve the fault before reconnecng the amplifier.
PANEL LAYOUT

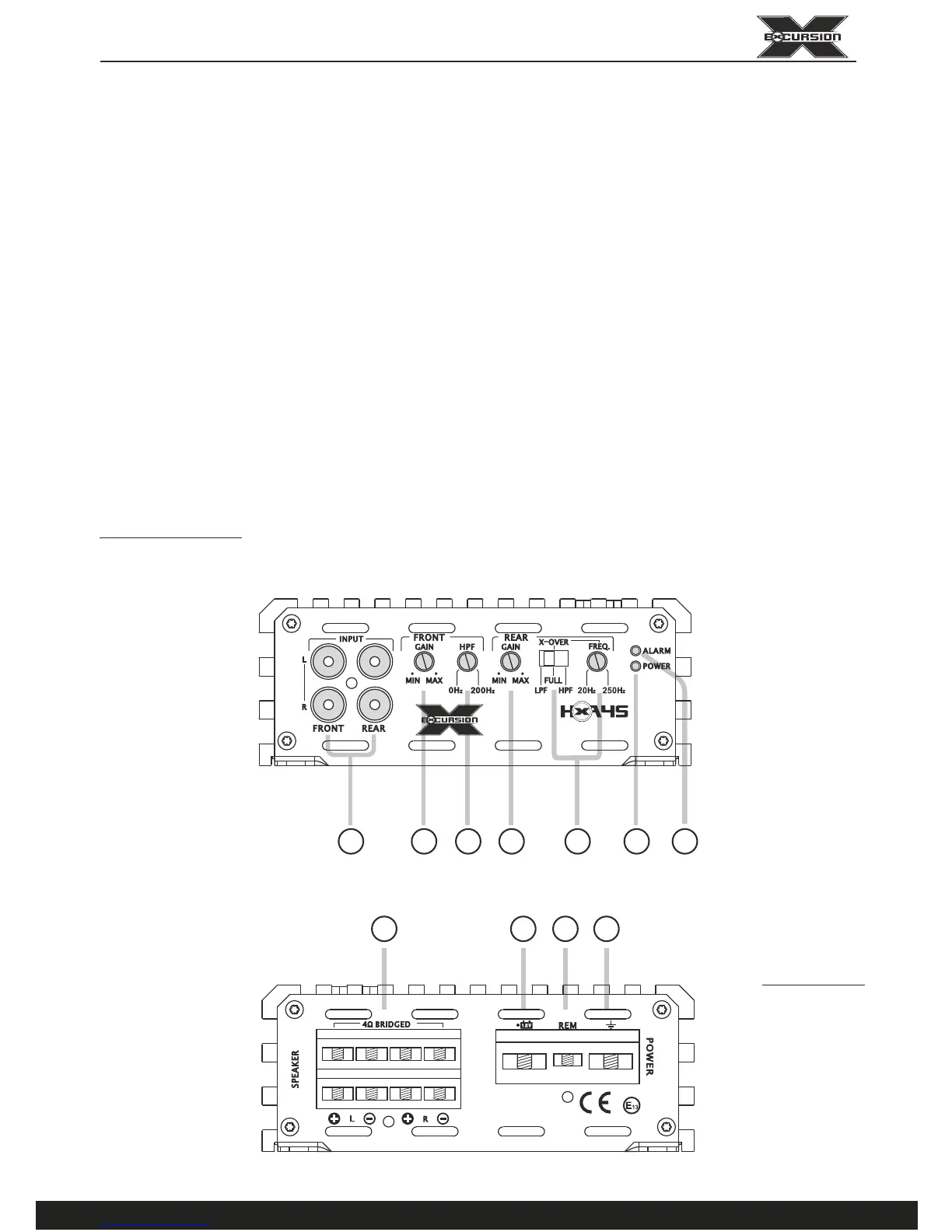

Fig 1. 4-ch amplifier panel layout
1 2 3 4
5 7
11
13
1412
4
7
A
B
100RMS x 4CH MINI CAR AMP
