EXCURSION HXA2K - HXA 20; HXA 30; HXA 40 Wiring (1 Channel Mode)

10

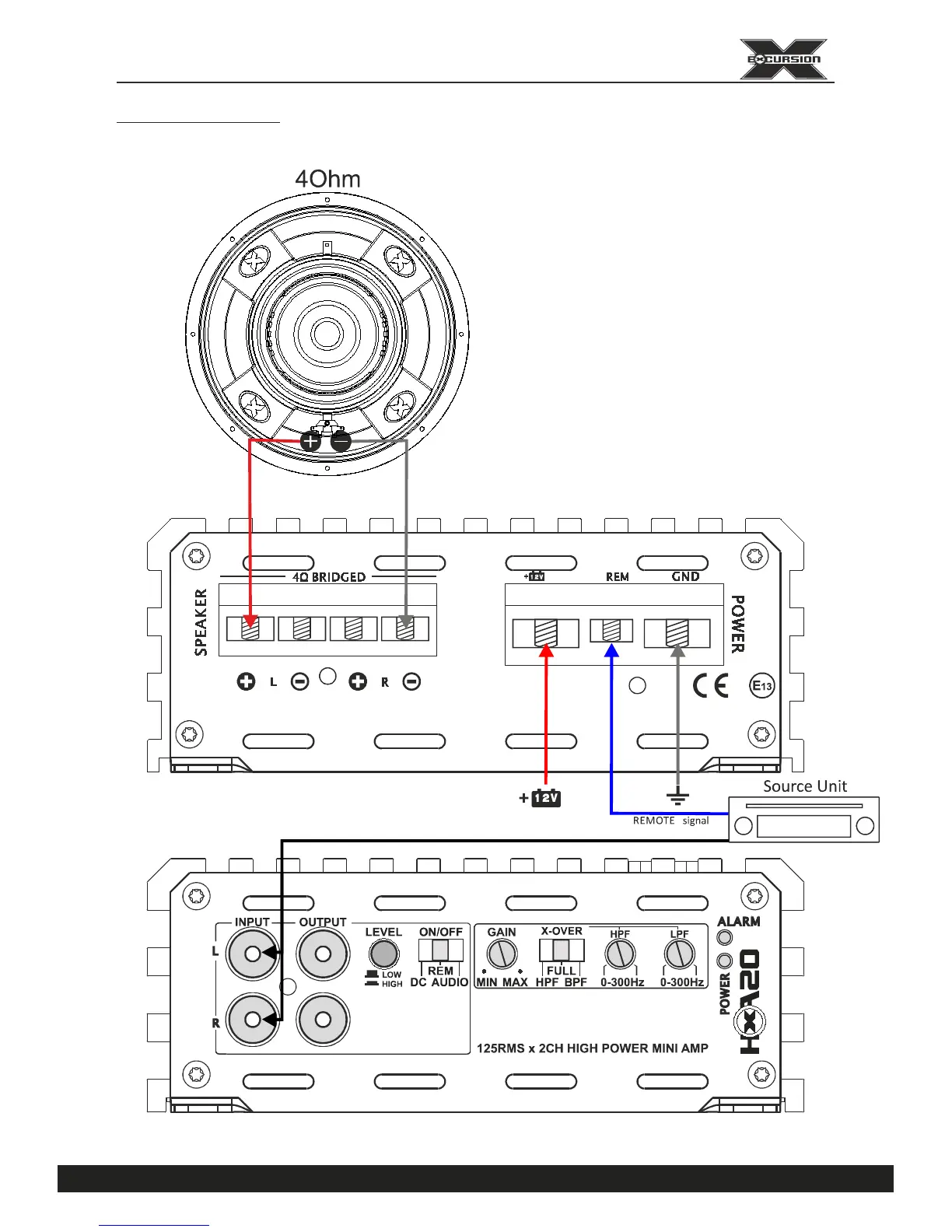

WIRING DIAGRAM
Fig 4. HXA 20 / HXA 30 / HXA 40 wiring
( 1 Channel Mode)
RCA LOW LEVEL or SPEAKER HIGH LEVEL signals via optional XML Adapter
