EXCURSION HXA2K - HXA 1 K; HXA 2 K; HXA 3 K; HXA 4 K; HXA 5 K Wiring (1 Channel Mode)

11
EXCURSION
WIRING DIAGRAM

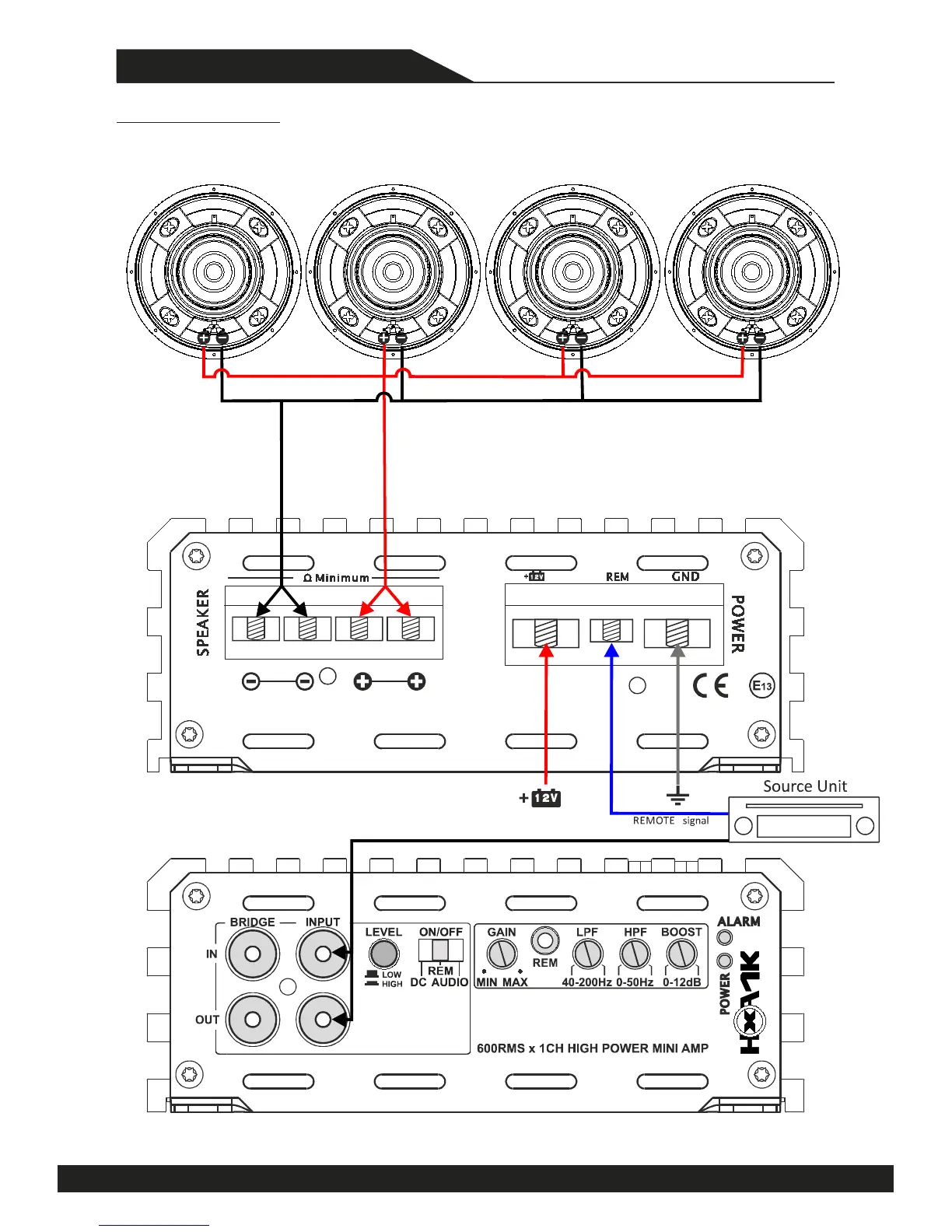

Fig 5. HXA 1K / HXA 2K / HXA 3K / HXA 4K / HXA 5K wiring
( 1 Channel Mode)
RCA LOW LEVEL or SPEAKER HIGH LEVEL signals via optional XML Adapter
2
* Equivalent impedance load can not be less
according minimum load of the individual
HXA Mono Amplifier model. (2/1/0,5Ohm)
* Mono Amplifier provide Dual +/- Terminals.
(they are connected parallel inside amplifier)
8Ohm 8Ohm 8Ohm 8Ohm
