17

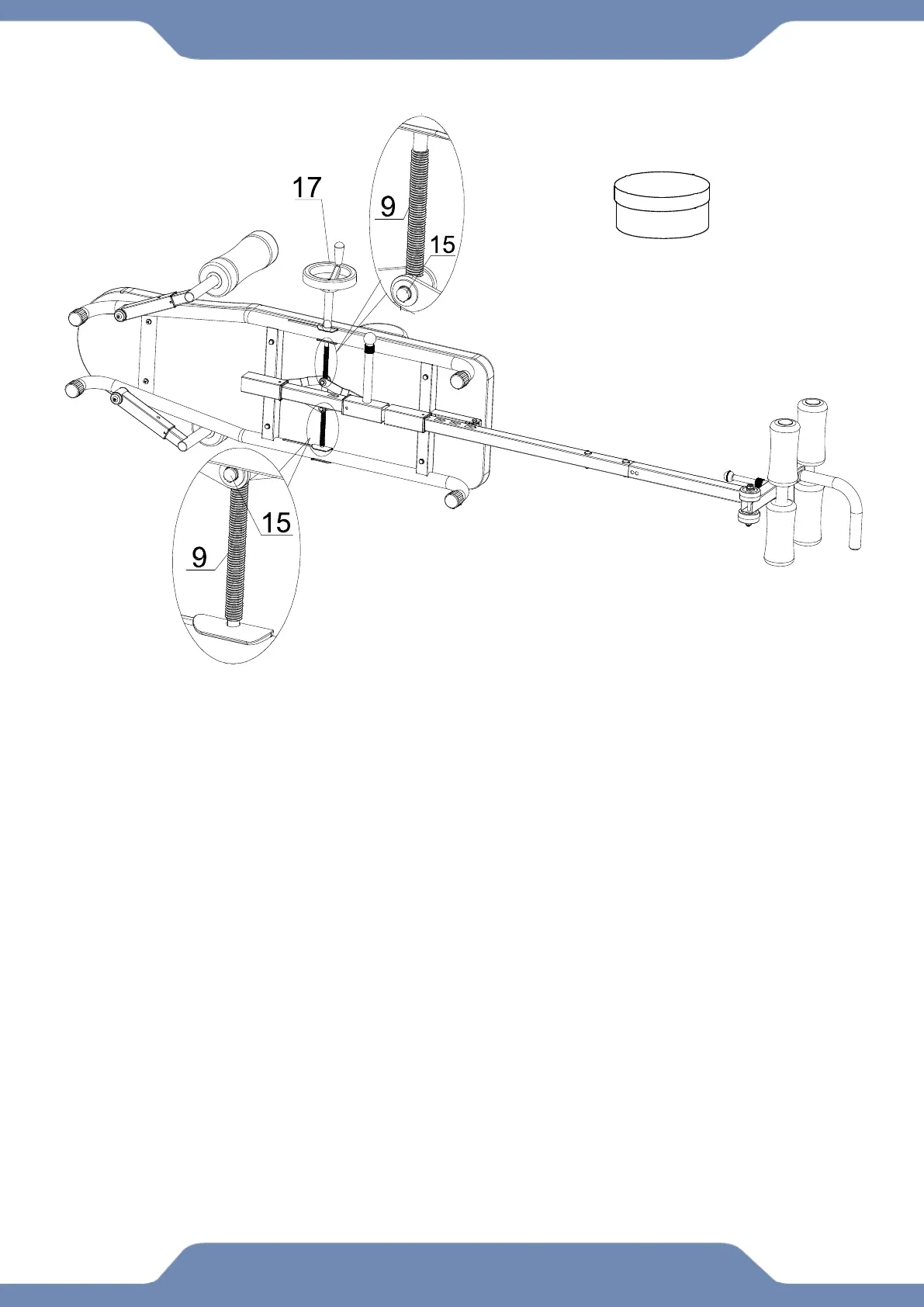

Applying grease to the Drive Screw
1. Begin by turning the Crank Wheel (17) Counter Clock-wise until it stops.
Take grease from container with finger, work the grease into the threads of the
Drive Screw (9).
2. Repeat this process for both left and right sides of the Threaded Pin Joints
(15).
3. Rotate the Crank Wheel (17) Clock-Wise until it stops. Take grease from
container with finger, work the grease into the threads of the Drive Screw (9). This
will ensure proper lubrication of the entire Drive Screw (9). You can proceed with
normal operation of the table.
