10
1.6.3 When new components are installed, be sure that current safety signs are
affixed to the replaced components.
1.6.4 New safety signs may be obtained from Exmark Mfg. Co. Inc.
1.6.5 Safety signs may be affixed by peeling off the backing to expose the adhesive
surface. Apply only to a clean, dry surface. Smooth to remove any air bubbles.

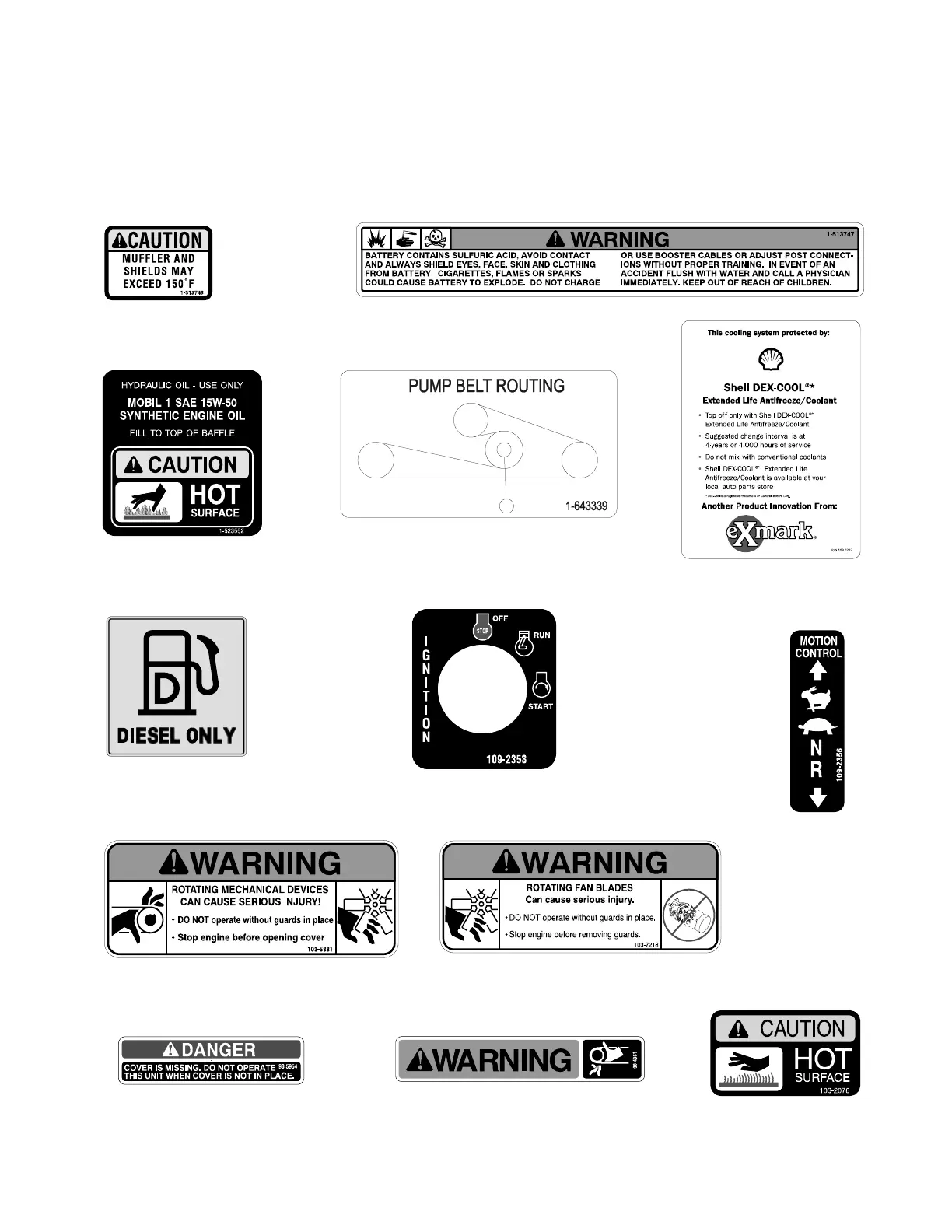

1.6.6 Familiarize yourself with the following safety signs and instruction labels. They
are critical to the safe operation of your Exmark commercial mower.
PART NO. 1-513746
LOCATION: Outside of rear
muffler guard
PART NO. 1-513747
LOCATION: LH Side of Batter
Holder
PART NO. 1-523552
LOCATION: Top Surface of
Hydraulic Tank
PART NO. 1-643339
LOCATION: On top of Radiator
PART NO. 103-2076
LOCATION: On Top of
Radiator
PART NO. 103-7218
LOCATION: On Seat Support Plate
PART NO. 103-0233
LOCATION: On Front of the
Fan Shroud
PART NO. 109-2358
LOCATION: On Control
Panel
PART NO. 109-2356
LOCATION: Top of
Console,
RH Side
PART NO. 98-5954
LOCATION: Top of Radiator
PART NO. 103-5881
LOCATION: On top of Radiator
PART NO. 103-1636
LOCATION: On Top of
Fuel Tank
PART NO. 93-4361
LOCATION: On LH and RH Side,
Near Back of Unit
