35

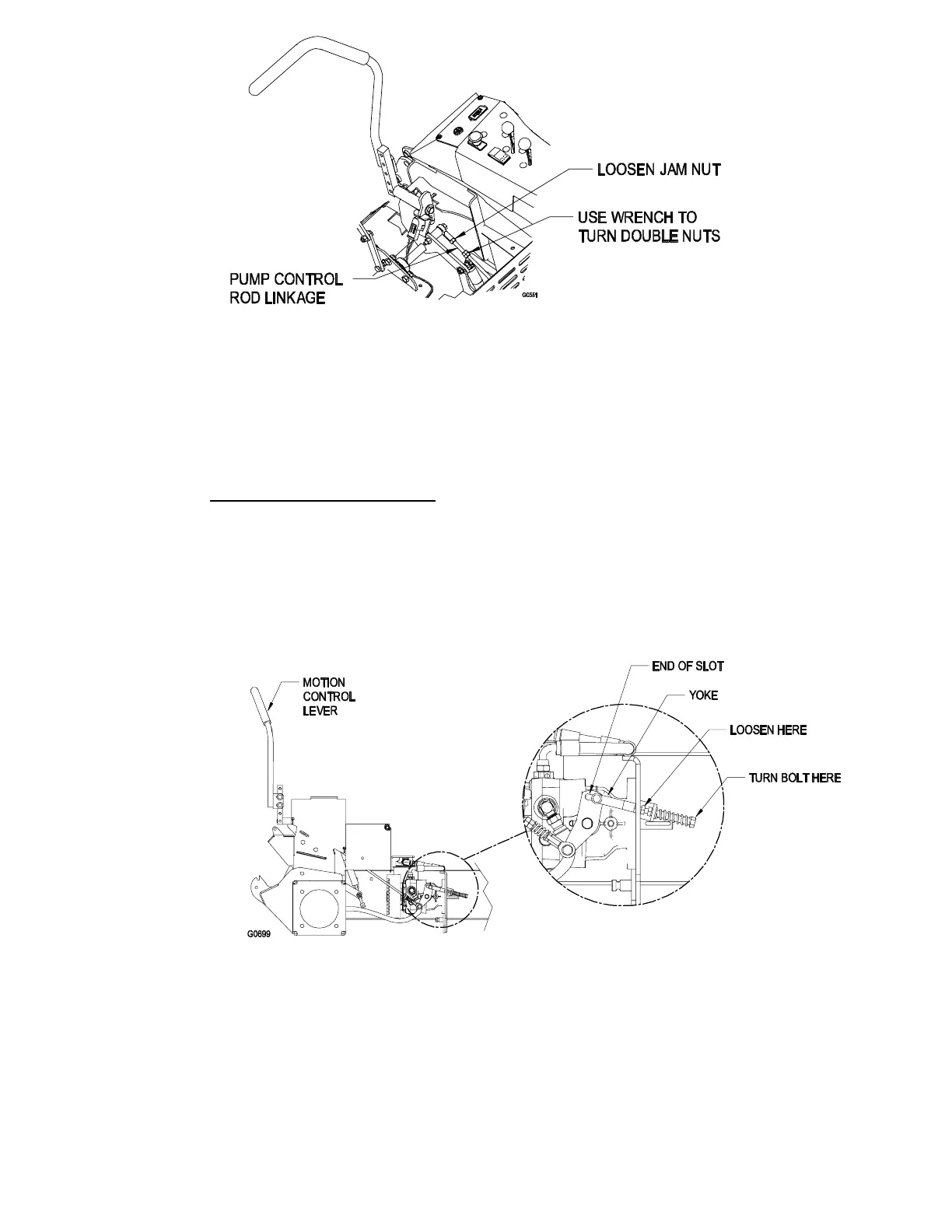

FIGURE 13
h) Move the motion control levers to the reverse position. Return the motion
control levers to neutral. The wheels must stop turning (or slightly creep in
reverse).
i) Stop engine and wait for all moving parts to stop. Remove jumper wire
from wire harness connector and plug connector into seat switch.
j) Lower from jackstands.
4.2.6 Reverse Indicator Adjustment
:
a) Stop engine, wait for all moving parts to stop, and remove key. Engage
parking brake.
b) Tilt seat forward.
c) Begin with either the left or right motion control lever. Move lever to the
neutral position and pull lever back until the clevis pin (on arm below pivot
shaft) contacts the end of the slot (just beginning to put pressure on
spring), See Figure 14.
FIGURE 14
d) Check where lever is relative to notch in neutral plate (should be centered
allowing lever to pivot outward to the neutral lock position).
e) If adjustment is needed, loosen the nut against the yoke and while applying
slight rearward pressure on the motion control lever, turn the head of the
adjustment bolt in the appropriate direction until lever is centered (keeping
rearward pressure on the lever will keep the pin at the end of the slot and
allow the adjustment bolt to move the lever to the appropriate position).
Tighten lock nut.
f) Repeat on opposite side of unit.
