37

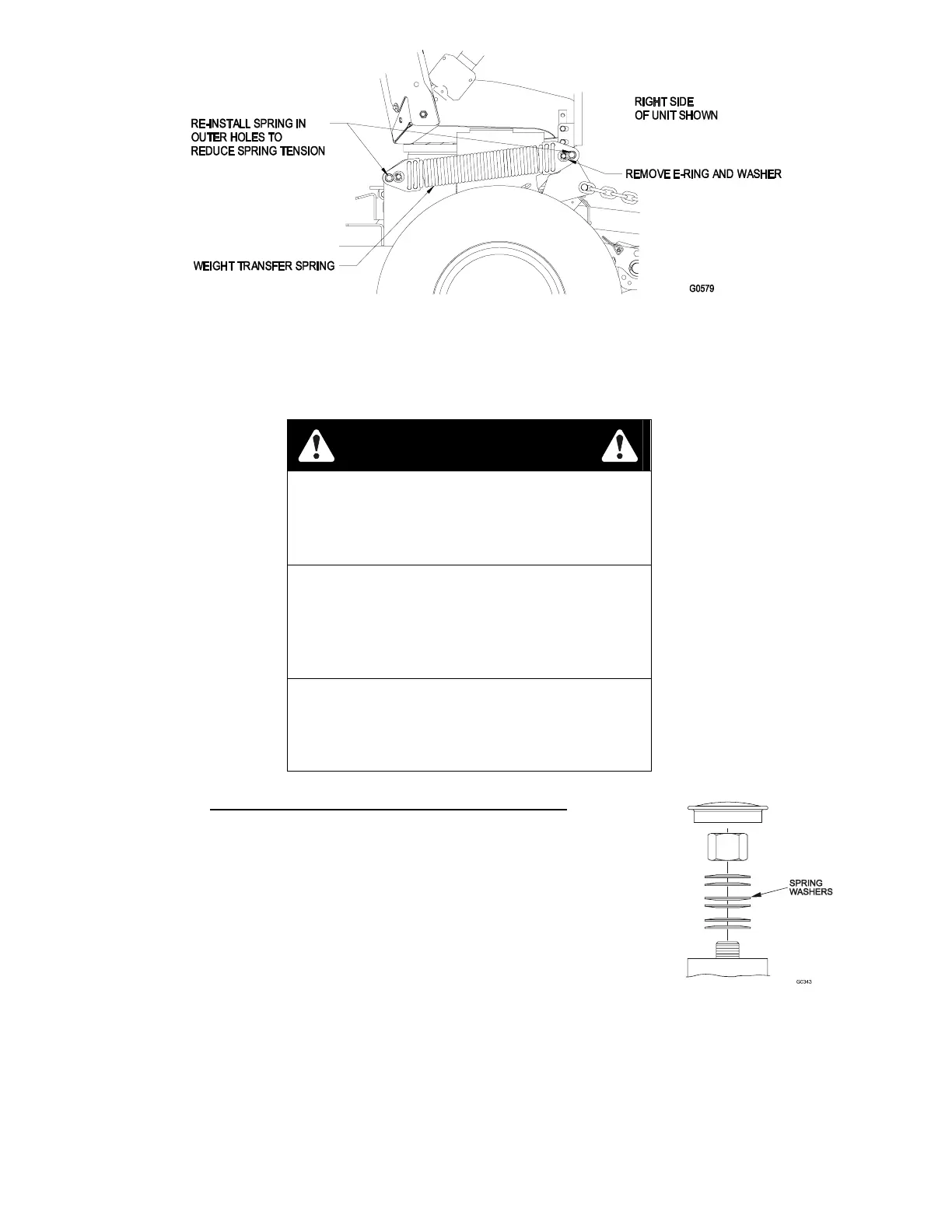

FIGURE 16
g) Re-install the left fender.
h) To adjust right side, raise the unit and place on jackstands, remove wheel
and repeat steps steps d) through f).
CAUTION
POTENTIAL HAZARD
♦ Raising the unit for service or
maintenance relying solely on mechanical
or hydraulic jacks could be dangerous.
WHAT CAN HAPPEN
♦ The mechanical or hydraulic jacks may
not be enough support or may
malfunction allowing the unit to fall, which
could cause injury.
HOW TO AVOID THE HAZARD
♦ DO NOT rely solely on mechanical or
hydraulic jacks for support. Use adequate
jack stands or equivalent
4.2.8 Rear caster pivot bearings pre-load adjustment:
a) Remove dust cap from caster and tighten
nyloc nut until washers are flat. Back the
nyloc off 1/4 of a turn to properly set the
pre-load on the bearings.
Note: If disassembled, make sure the spring
washers are reinstalled as shown in Figure 17.
FIGURE 17
