Safety

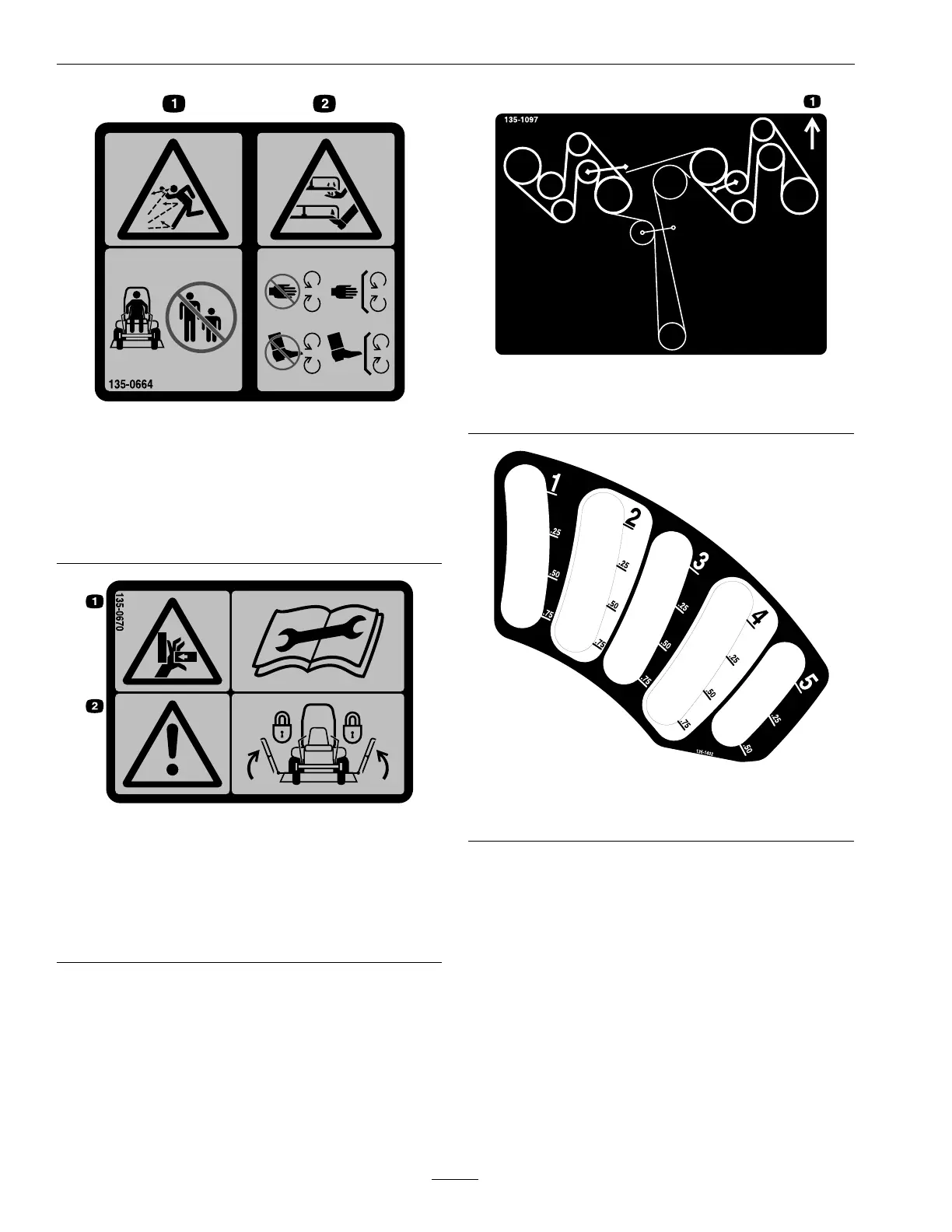

decal135-0664
135-0664
Rear
Discharge
Models
Only
1.
Thrown
object
hazard—keep
bystanders
away
.
2.
Cutting/dismemberment
of
hand
and
feet—stay
away
from
moving
parts;
keep
all
guards
and
shields
in
place.
decal135-0670
135-0670
Wing
Deck
Models
Only
1.
Crushing
hazard,
hand
-
read
instructions
before
servicing
or
performing
maintenance.
2.
W
arning
-
Lock
the
deck
wings
and
read
the
instructions
before
servicing
or
performing
maintenance.
decal135-1097
135-1097
1.
Belt
routing
decal135-1432
135-1432
Wing
Deck
Models
Only
12
11
13
Table of Contents
Introduction
3
Table of Contents
4
Safety
5
Safety Alert Symbol
5
General Safety
5
Safety and Instructional Decals
6
Specifications
18
Systems
18
Dimensions
22
Torque Requirements
25
Product Overview
26
Operation
27
Controls
27
Before Operation
33
Pre-Start
33
Operating Instructions
35
During Operation Safety
35
After Operation
47
Transporting
47
Maintenance
51
Maintenance Safety
51
Recommended Maintenance Schedule(S)
52
Periodic Maintenance
53
Check Engine Oil Level
53
Check Mower Blades
56
Check Safety Interlock System
57
Check Rollover Protections Systems (Roll Bar) Knobs
61
Check Seat Belt
61
Check for Loose Hardware
61
Service Air Cleaner
61
Change Engine Oil
62
Check Deck Lift Oil Level
62
Check Hydraulic Oil Level
62
Check Tire Pressures
63
Check Condition of Belts
63
Lubricate Grease Fittings
63
Lubricate Deck Lift Pivot
65
Check Spark Plugs
65
Change Hydraulic System Filter and Fluid
65
Change Deck Lift Power Unit Fluid-Wing Deck Model Only
66
Wheel Hub-Slotted Nut Torque Specification
66
Check Spark Arrester (if Equipped)
66
Thread Locking Adhesives
66
Mobil HTS Grease (or Food-Grade Anti-Seize)X-Series Only
67
Copper-Based Anti-Seize
67
Dielectric Grease
67
Adjustments
67
Deck Leveling-Wing Deck Models
67
Pump Drive Belt Tension
70
Deck Belt Tension
70
Adjusting the Parking Brake
70
Electric Clutch Adjustment
70
Motion Control Linkage Adjustment
72
Motion Control Damper Adjustment
73
Motion Control Neutral Lock Pivot Adjustment
73
Motion Control Handle Adjustment
73
Motion Control Full Forward Tracking Adjustment
74
Caster Pivot and Gauge Wheel Pivot Bearings Pre-Load Adjustment
74
Cleaning
75
Clean Debris from Machine
75
Clean Engine and Exhaust System Area
75
Remove Engine Shrouds and Clean Cooling Fins
75
Clean Hydro Fan Cooling Guards, Hydro Cooling Fins, and Fan
75
Clean Grass Build-Up under Deck
75
Cleaning the Suspension System
75
Waste Disposal
76
Troubleshooting
77
Schematics
80
Information
91
