3.2.18 Remove the discharge chute bracket from the discharge chute and retain hardware.
Use the appropriate template provided as a guide to cut off the lip. Follow steps a)
through d).
For UltraCut 52”-60” use template 109-4091.
For Triton 46”-56” use template 109-4091.
For Trition 60”-72” use template 109-3592.

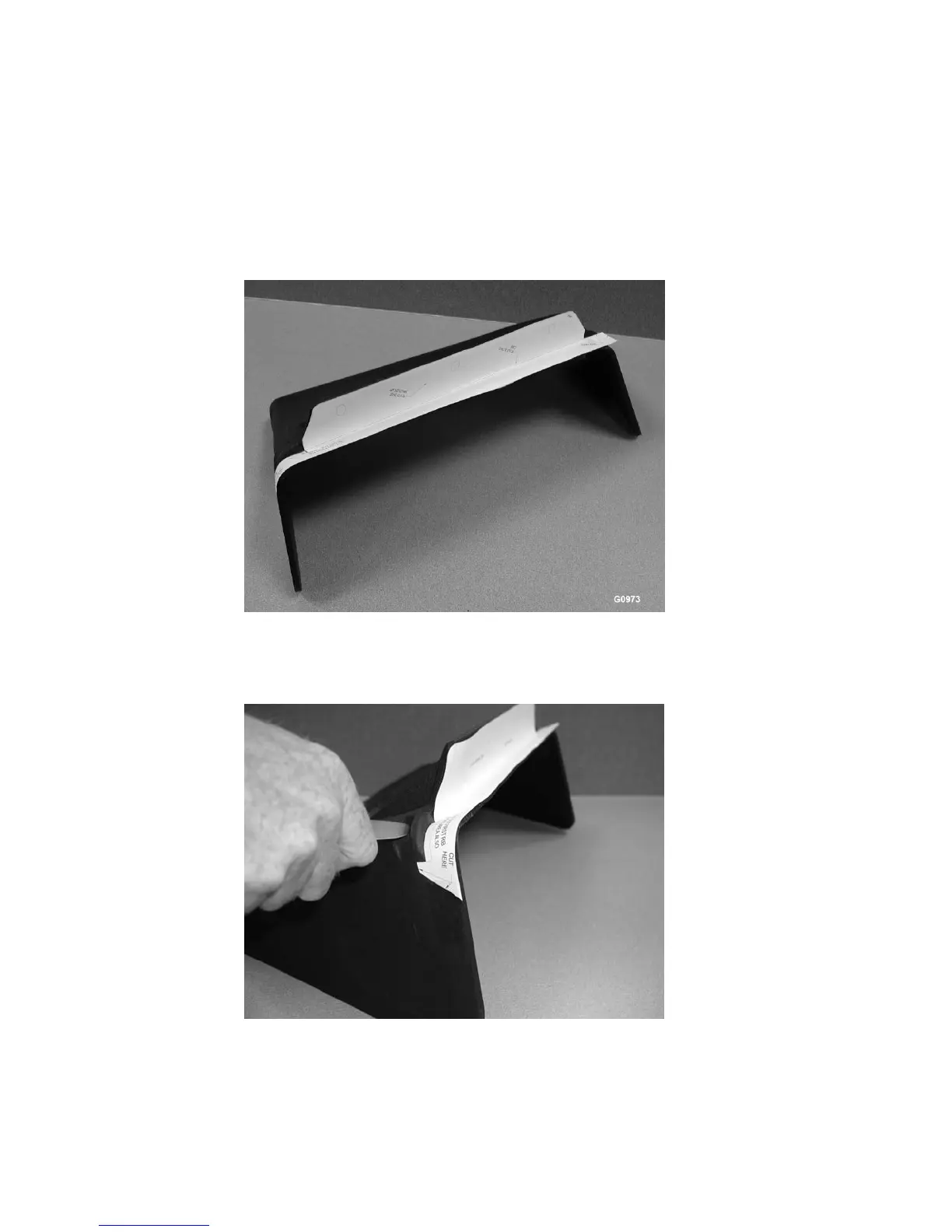

a) Place the template onto the chute lip.
FIGURE 16A
b) Cut ends as shown on template. Cut around backside of first rib as shown in
Figure 16B
FIGURE 16B
