EXMITTER EX7 - Receiver Installation and Binding; Receiver Connection & Binding; Failsafe Setting

5
EXMITTER EX6 Digital Radio System
ELECTRONIC
SPEED CONTROL
CAUTION: Do not cut the antenna.
Install Your Receiver
Binding is the process of programming the receiver to recognize the GUID (Globally
Unique Identifier) code of a single specific transmitter. When a receiver is bound to
a transmitter, the receiver will only respond to that specic transmitter. If you need to
rebind for any reason, please follow these steps:
1. With the transmitter switched ON
2. Power on the receiver,then press the bind button in 3 seconds.
3. Loose the bind button and wait for about 5 seconds.
4. The receiver LED will keep ashing, means it is binding.
5. After the receiver LED stop ashing, it means the binding is done.

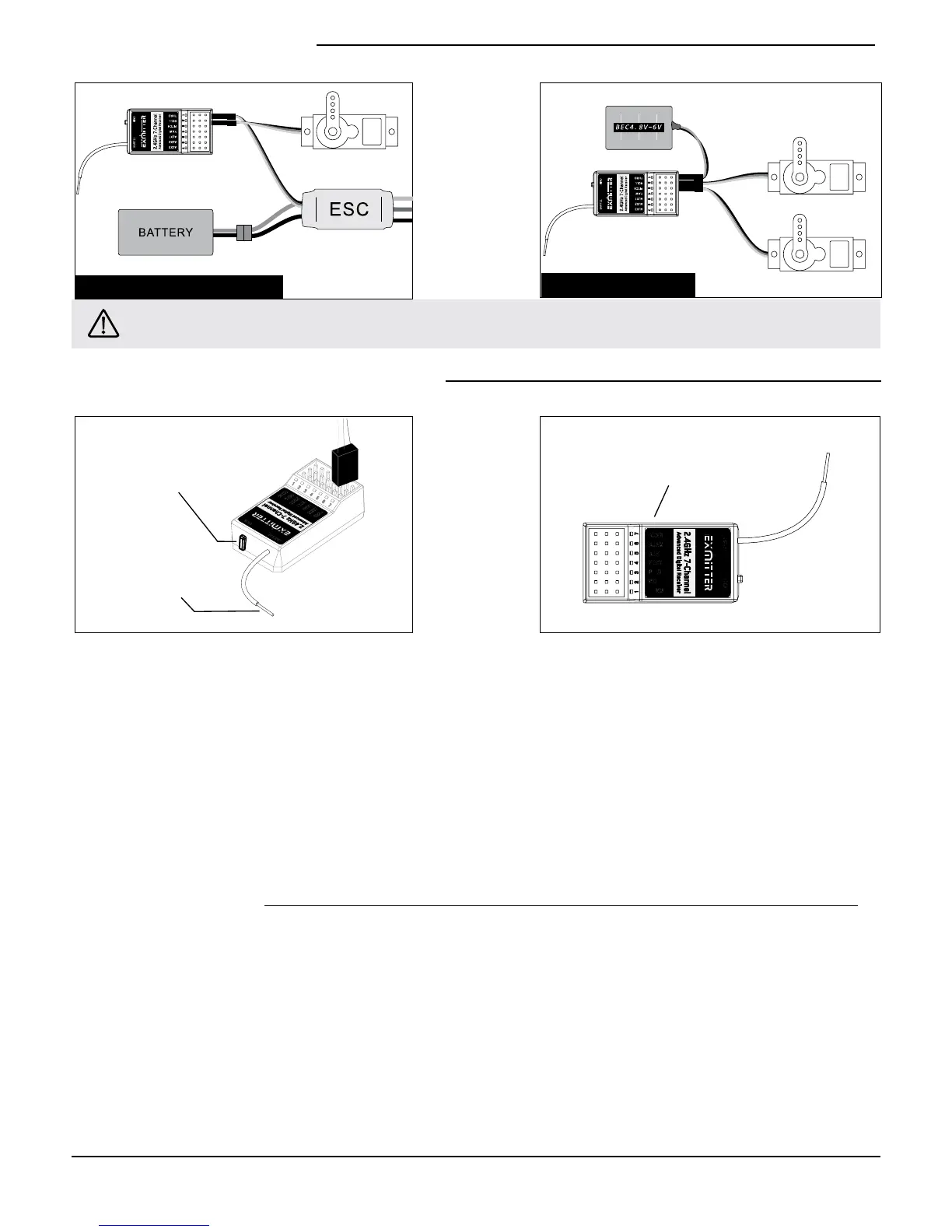

Receiver Connection & Binding
Bind Button
Antenna
Channels Instruction
RECEIVER
BATTERY
SERVO
STEERING SERVO
GAS INSTALLATION
THROTTLE SERVO
RECEIVER
BEC BATTERY
Failsafe Setting
The EX7 comes with the receiver failsafe set to NONE. In the event of loss of signal
the motor will stop and the vehicle will willdrift. If the signal is regained normal function
will return. If you wish to program the failsafe to a custom setting, just follow these
simple steps:
1. While binding(LED flashing), keep sticks at position that you want the vehicle to
stay when failsafe
2. When binding done(LED stop ashing), the system will remember the position you
set for failsafe.
ELECTRICAL INSTALLATION
