Exor JSmart 710 - Connections; Ethernet Port

20
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
5 Connections
Reserved
Pin Description
1 TX+
2 TX-
3 RX+
4 n/c
5 n/c
6 RX-
7 n/c
8 n/c

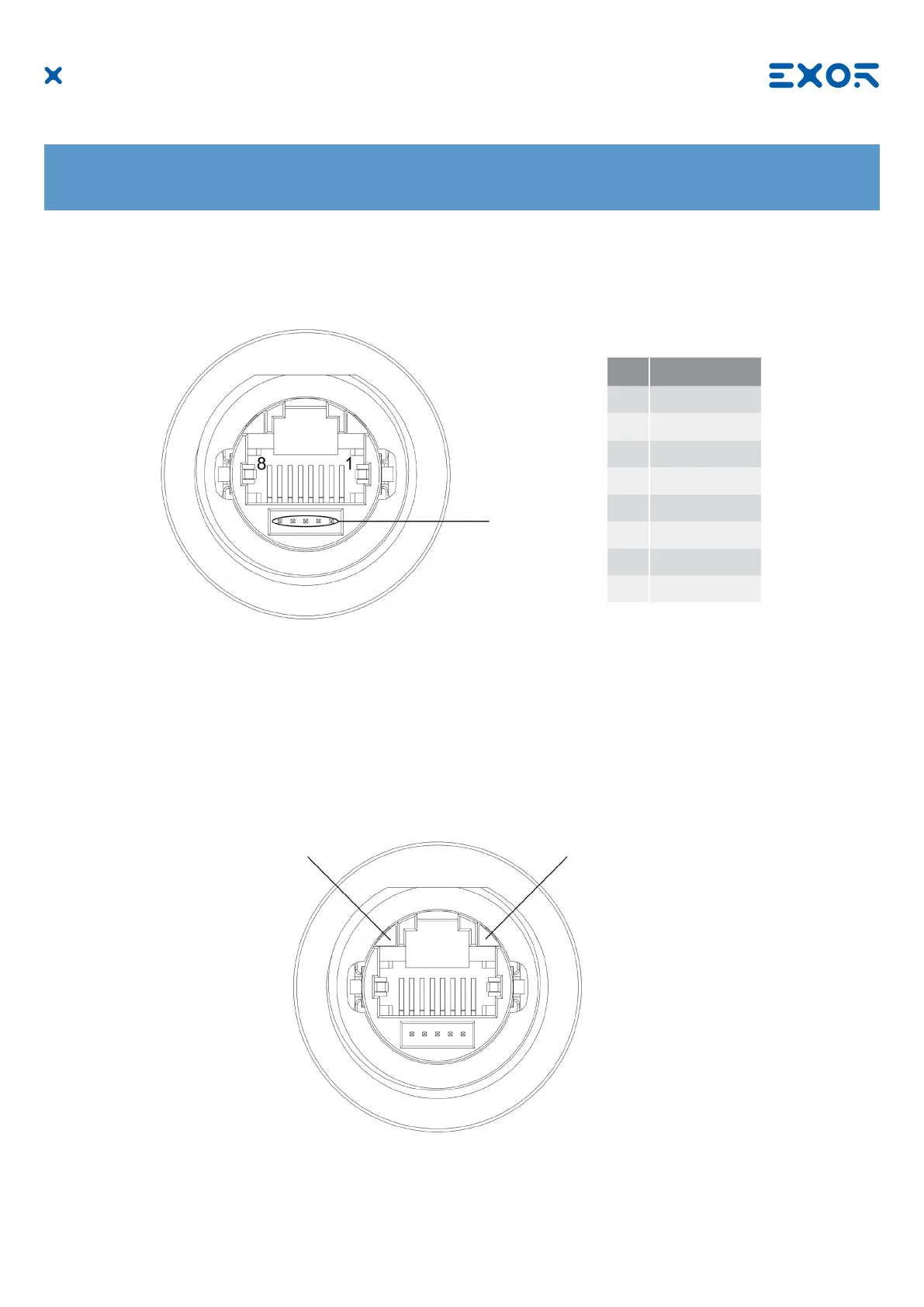

5.1 Ethernet Port
Red
OFF: Valid link has NOT been detected
ON: Valid link has been detected
Green
ON: No activity
BLINKING: Activity
The Ethernet port have two status indicators. Please see description in gure.
