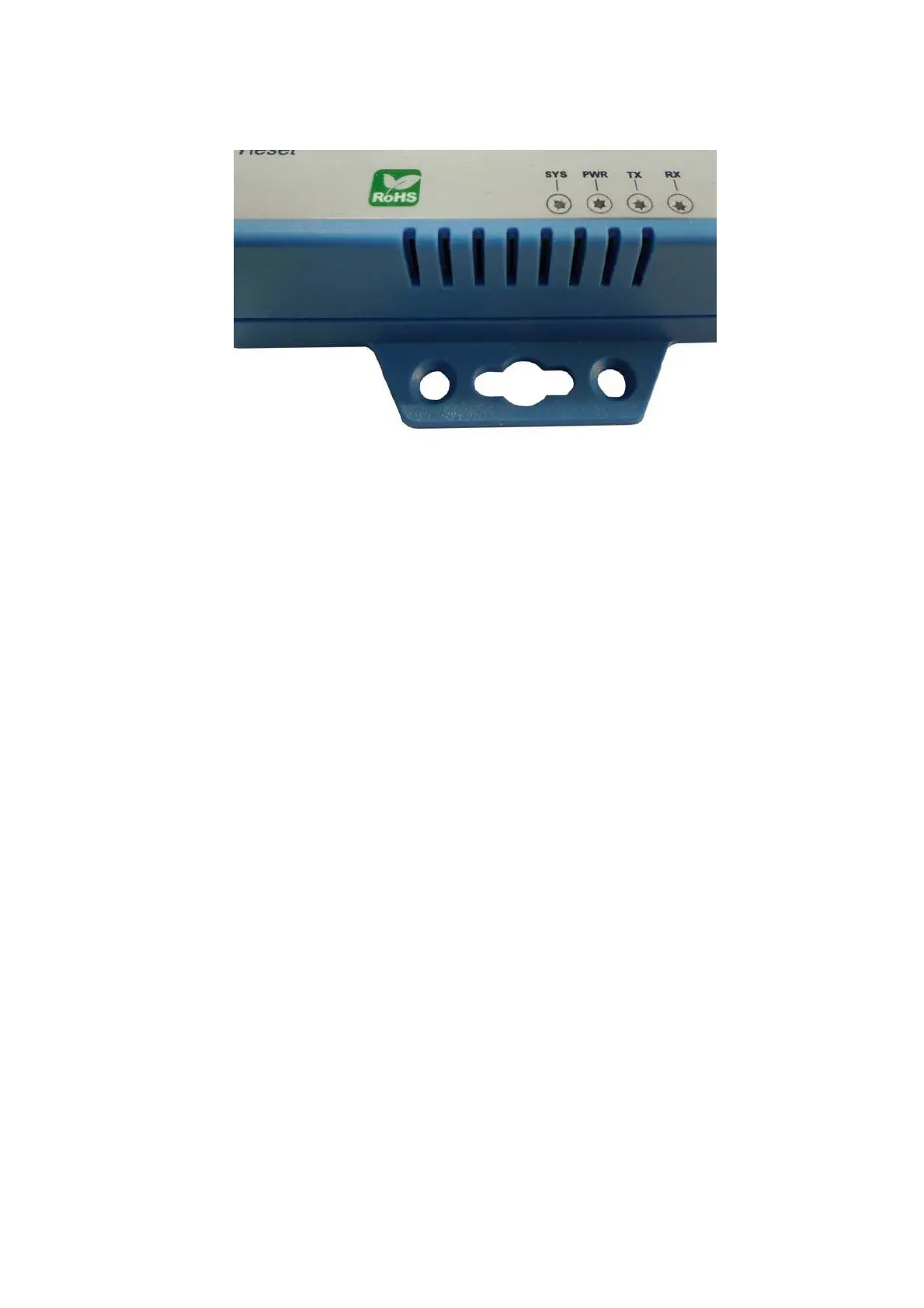

LED Indicators
PWR (Red):
It is a power indicator (When the power is on, the LED will be on.)
Tx (Green):
Data transmitting indicator (When data are sending to the network, the LED will
blink.)
Rx (Red):
Data received indicator (When data are receiving by the network, the LED will blink.)
SYS (Green):
It is a device statues indicator (When
EX-9132C-2 is operated in normal statues, the
LED will blink once per second.)
