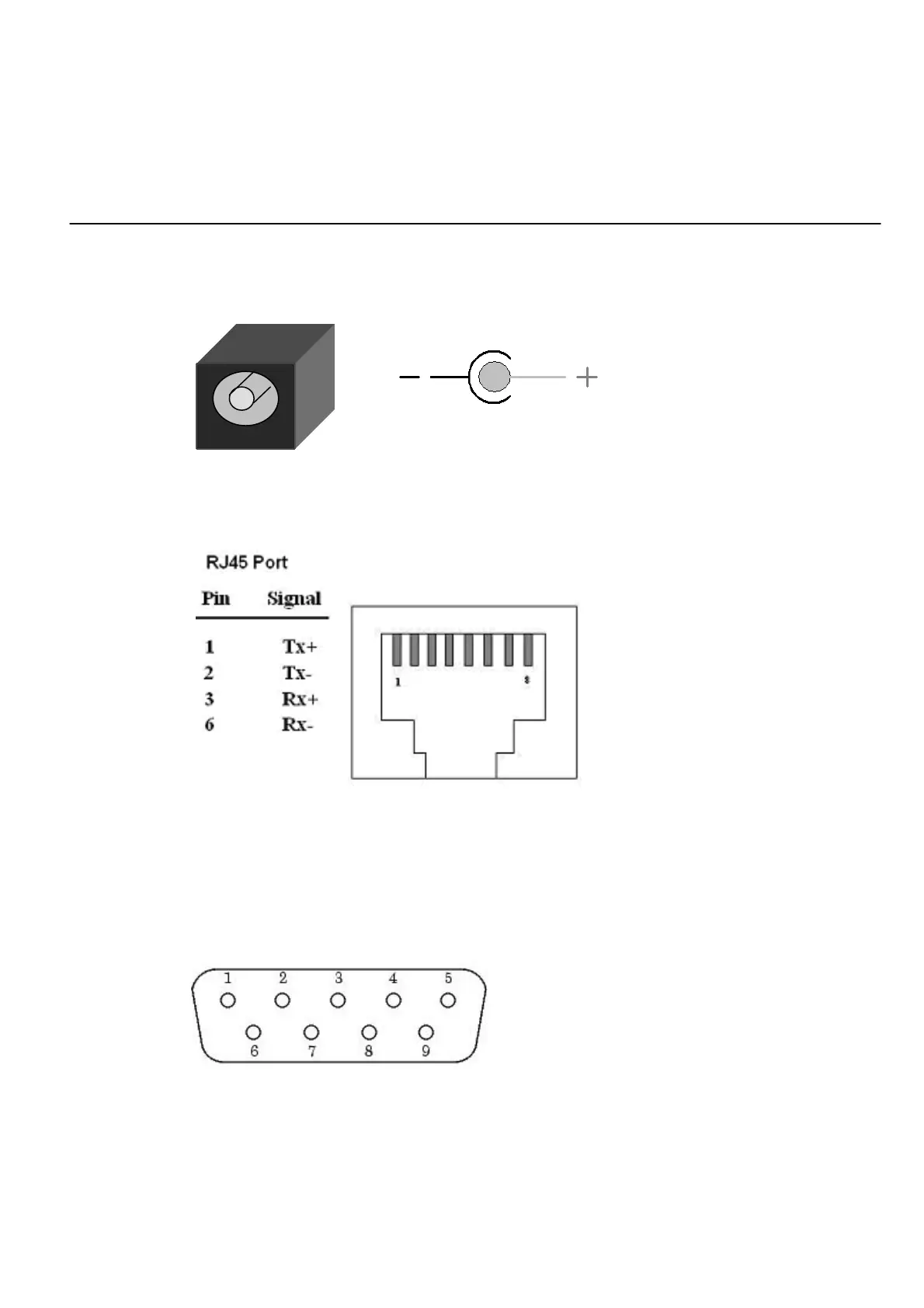

Pin outs and Cable Wiring
□
□
□
DC-In Jack
□
□
□
RJ-45 Pin Assignment
□
□
□
RS-232 Pin Assignment
The pin assignment scheme for a 9-pin male connector on a DTE is given
below.
PIN 1 : N/A PIN 2 : RXD PIN 3 : TXD PIN 4 : DTR
PIN 5 : GND PIN 6 : DSR PIN 7 : RTS PIN 8 : CTS
PIN 9 : N/A
