C
ORE
mode
27
Summary
Taking a reading in the
N
O
-P
IN
mode (zero-read-zero method) is
a simple four step procedure:
1
Take a zero reading in free-space.
2
Place the sensor head against the sample and press the
R
IGHT
button again.
3
Remove the KT-9 after the beep (it is checking zero again).
4
The result is displayed after the second beep.
C
ORE
mode
The
C
ORE
mode (also referred to as a zero-read-zero method)
requires that the measuring pin be replaced by the
S
TUD
in order
to allow the sensor to come in direct contact with the core. The
S
TUD
should be located in the lid compartment of the storage
case (as shown in Figure 12 on page 42) can be seen in the fol-
lowing figure.
Figure 8

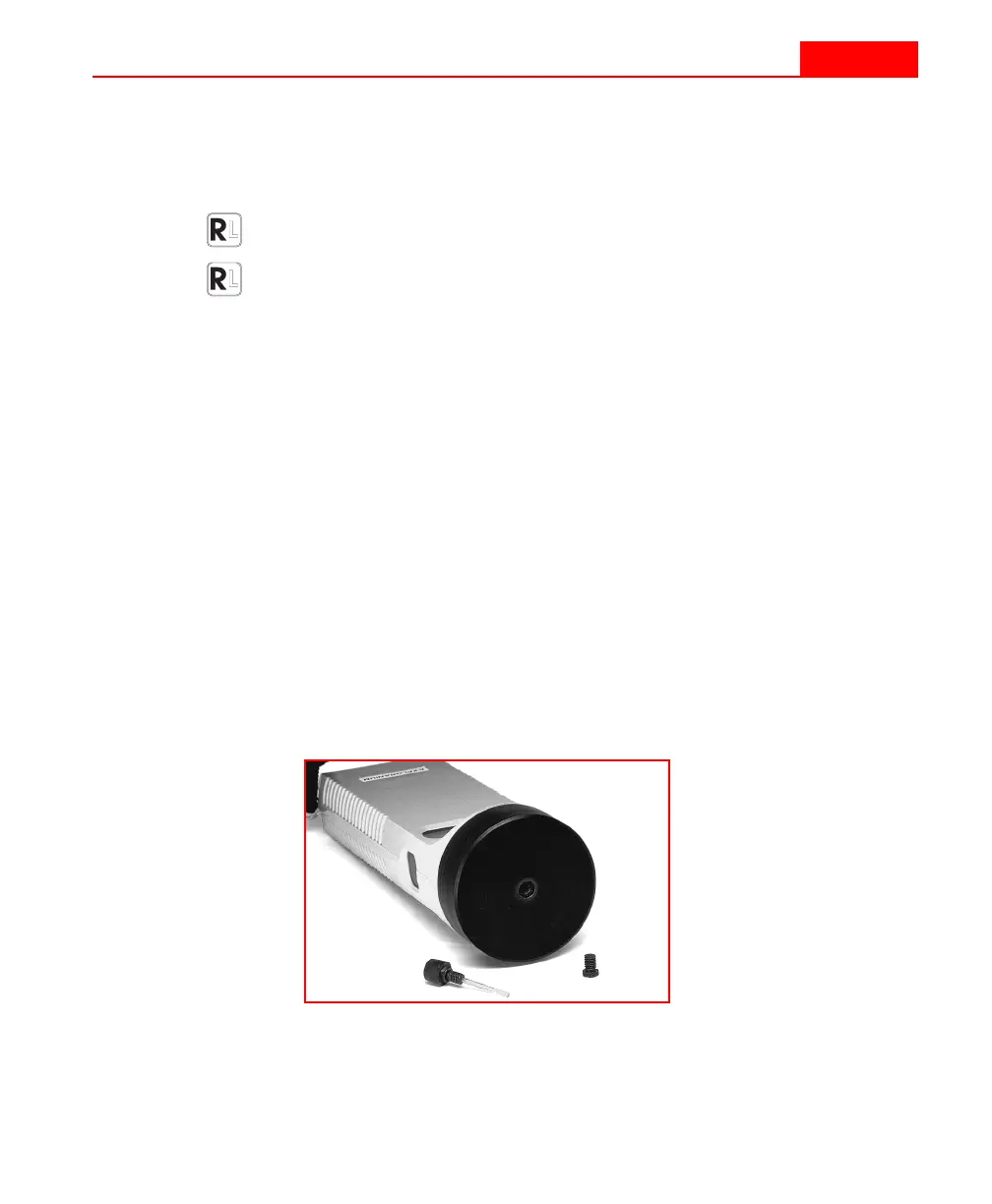

Pin and stud components for sensor
