C-12 CRUSHER

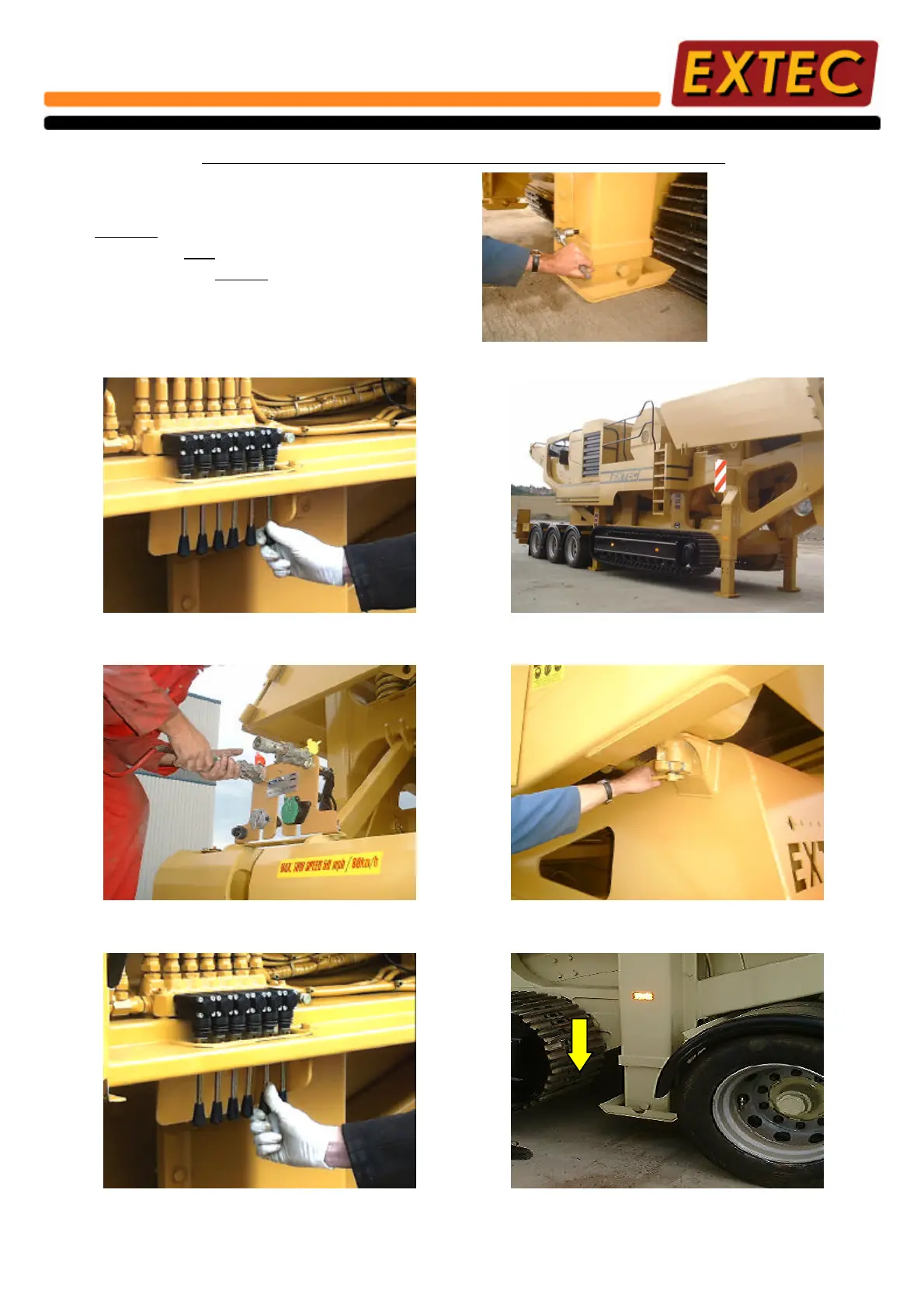

REMOVING TRACTOR UNIT AND BOGIE
3:- Remove tractor unit air brakes & lighting
connections then unhitch from machine.
1:- Front Jacking Legs lever. 2:- Lower front Jacking Legs to raise fifth wheel
neck by approximately 100 mm.
4:- Unlock bogie from machine (4 positions).
5:- Rear Jacking Legs lever.
6:- Lower rear Jacking Legs to raise machine clear
of the bogie locking mechanism .
NOTE:- Before attempting to lower the
jacking legs ALL of the leg transportation
retaining screws MUST be removed.
Jack retention screw
10
