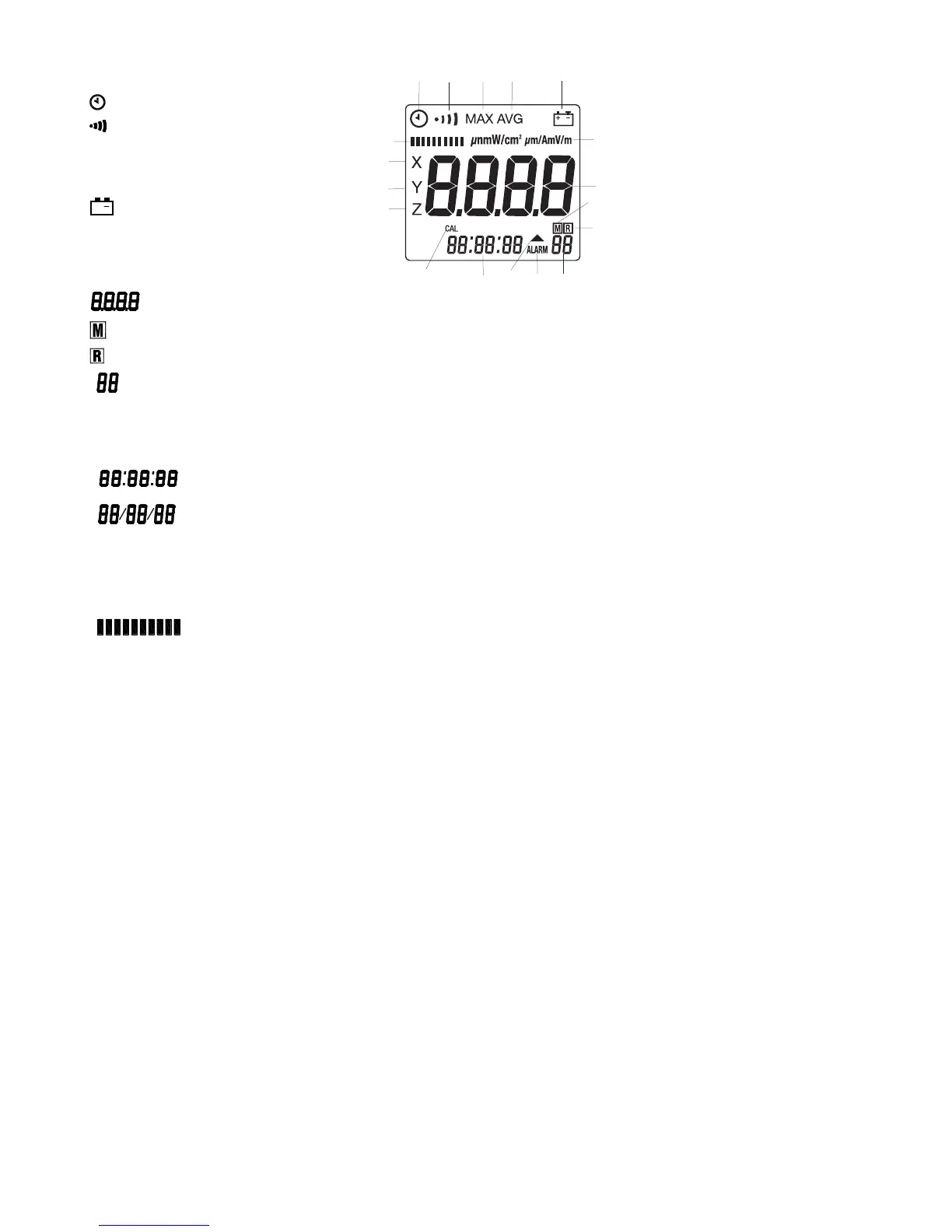

LCD display description
(1). : Auto power off function on / off.
(2).
: Audible sound function on / off.
(3). MAX: Maximum measured value displayed.
MAX AVG: Maximum average value displayed.
(4). AVG: Average measured value displayed.
(5).
+
: Low battery indication.
(6). Units : mV/m and V/m : Electric field strength;
μA/m and mA/m : Magnetic field strength.;
μW/m
2
, mW/m
2,
W/m
2,
μW/cm
2
and mW/cm
2
:
Power density
(7).
: Measured value displayed as per selected mode and selected units.
(8).
: Stored measured value to memory indication.
(9).
: Manual data memory mode indication.
(10).
: Manual data memory address number (1~99).
(11). ALM: Alarm function on / off or alarm setting indication.
(12). ▲ : Displays when the alarm function is on and the instantaneous measured value
exceeds the limit value indication.
(13).
: hh : mm : ss Time displayed.
: YY : MM : DD Date displayed.
(14). CAL : Calibration factor indication or setting indication (from 0.20 to 5.00).
(15). Z : Z axis measured value displayed.
(16). Y : Y axis measured value displayed.
(17). X : X axis measured value displayed.
(18).
: Analog bargraph of each axis (X,Y or Z) measured dynamic range
indication for observing trends.
12
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
