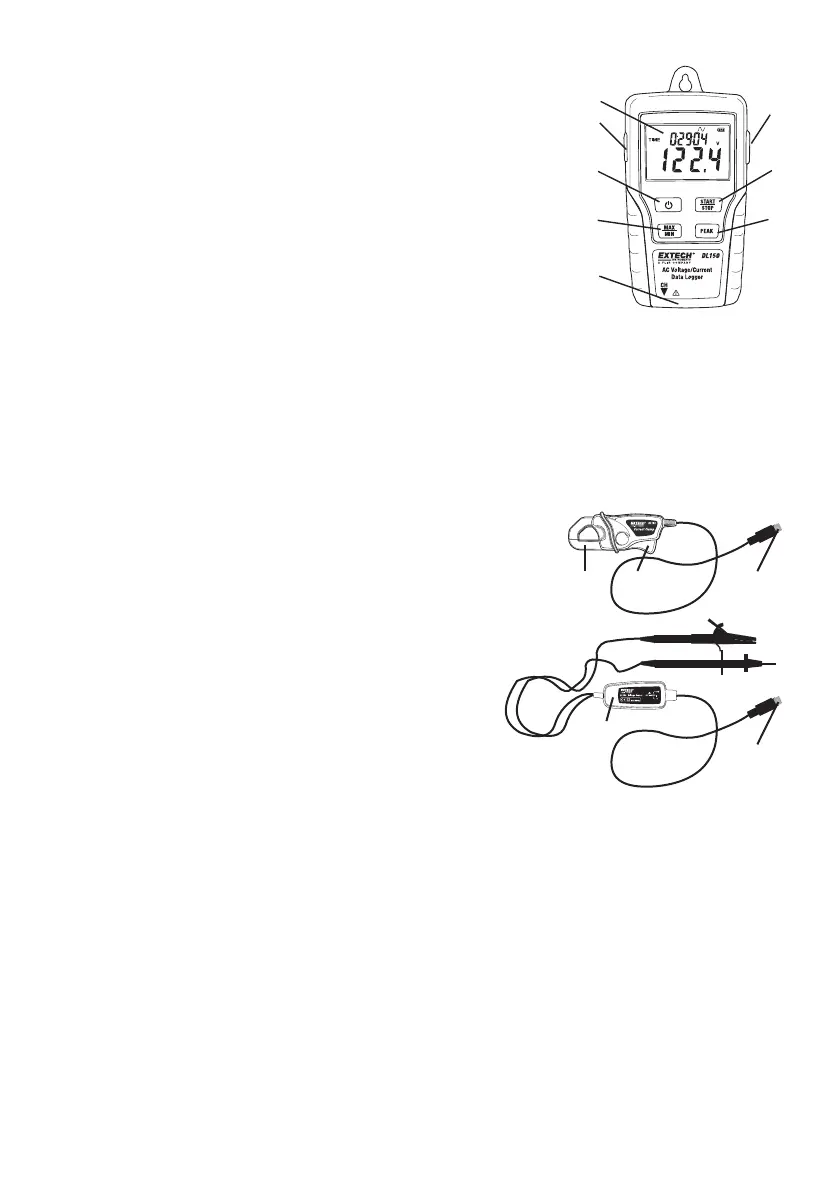

2. AC adaptor Jack
3. ON/OFF Button
4. MAX/MIN : Press the button one time to display the MAX
(maximum) reading . Press again to display the MIN (minimum)
reading. A third press will exit MAX/MIN mode. The meter will
automatically exit MAX/MIN mode in 10 seconds if no button is
pressed.
5. CH Input Jack: Insert the current or voltage sensor to this COM to
measure and record the data.
6. PEAK HOLD: In the non-PEAK measurement mode, press the
PEAK HOLD button to display the average Peak value of the
present value. Press the button again to exit PEAK display. The meter will automatically exit in
10s if no button is pressed.
7. START/STOP: Press the START/STOP button for one time to pause data. Press again to
resume. After setting the record mode, press this button for more than 4 seconds and then
release it after REC is shown on the LCD. The meter will measure and record data according to
the software setup.
8. USB Port
9. AC Current Clamp Jaw: Clamp the jaws around a single
conductor for AC current measurements to 200A
10. Jaw Opening Trigger:
11. CH Plug:
12. AC Voltage Probes or Alligator clips
13. Voltage module
14. CH Plug
1
2
3
4
5
6
7
8
910 11
12
13
14
