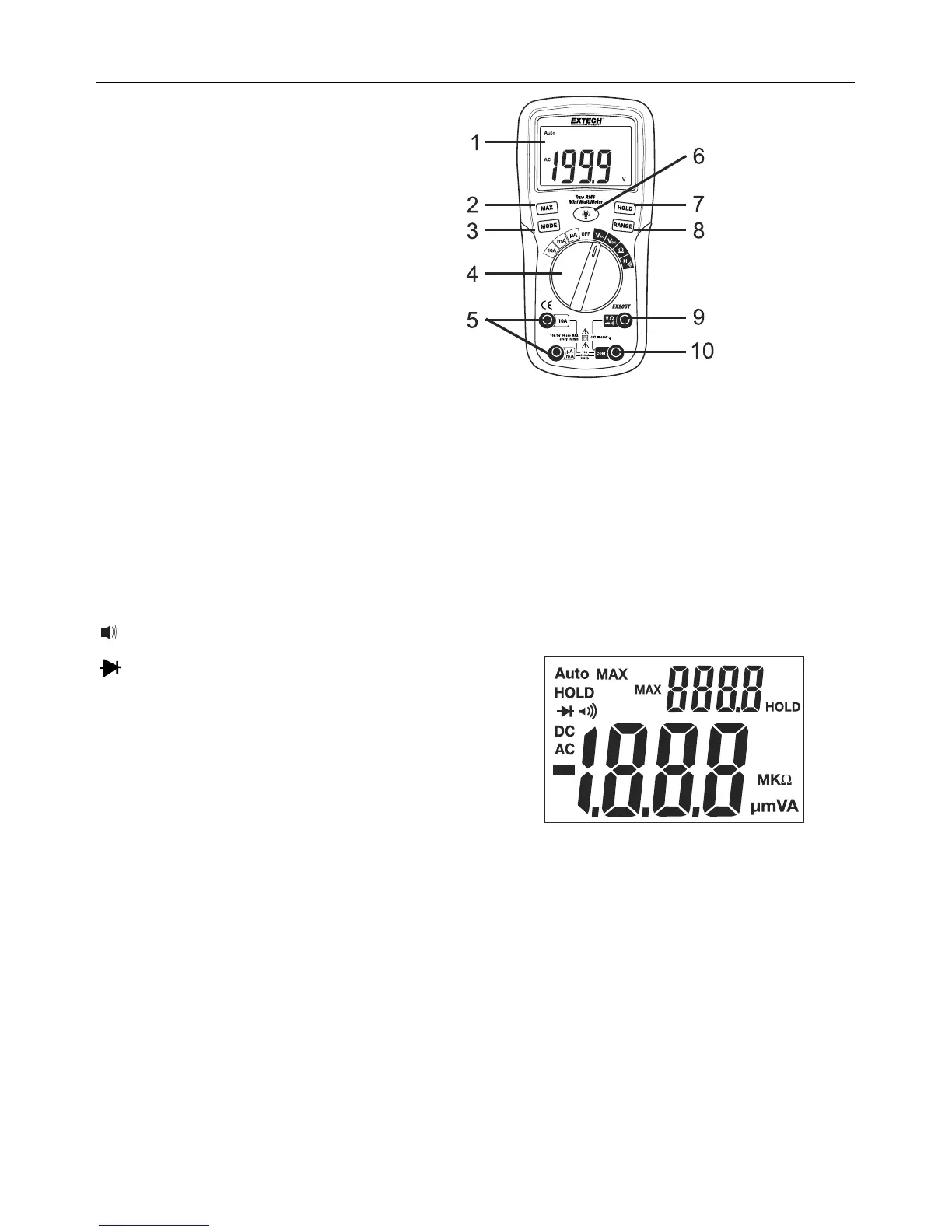

Controls and Jacks
1. 2000 count LCD
2. MAX button
3. MODE button
4. FUNCTION switch
5. mA, µA and 10A input jacks
6. Backlight button
7. HOLD button
8. RANGE button
9. Positive input jack
10. COM input jack
Note: Tilt stand, test lead holders, and battery compartment are on rear of unit.
Symbols and Enunciators
Continuity
Diode test
µ micro (10
-6
) (amps)
m milli (10
-3
) (volts, amps)
A Amps
k kilo (10
3
) (ohms)
M mega (10
6
) (ohms)
 Ohms
V Volts
AC Alternating current
DC Direct current
MAX Maximum
AUTO Auto-ranging
HOLD Display hold
