V5.0 5/04 14

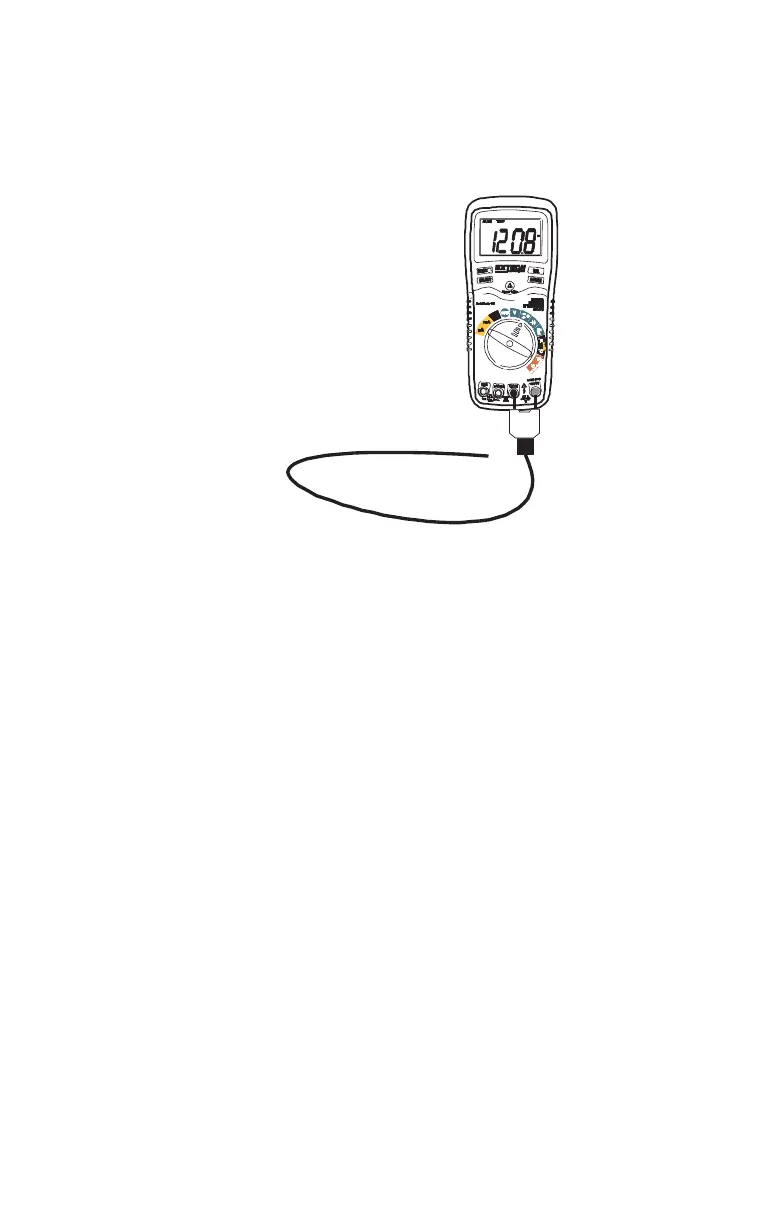

CONTACT TEMPERATURE MEASUREMENTS
1. Set the function switch to the black Type K ºF
or ºC position.
2. Insert the Temperature Probe into the input
jacks, making sure to observe the correct
polarity.
3. Touch the Temperature Probe head to the
part whose temperature you wish to measure.
Keep the probe touching the part under test
until the reading stabilizes (about 30 seconds).
4. Read the temperature in the display.
Note: The temperature probe is fitted with a type
K mini connector. A mini connector to banana
connector adaptor is supplied
for connection to
the input banana
jacks.
