Extech Instruments HD500 User Manual

HD500 V3.1 12/07
3

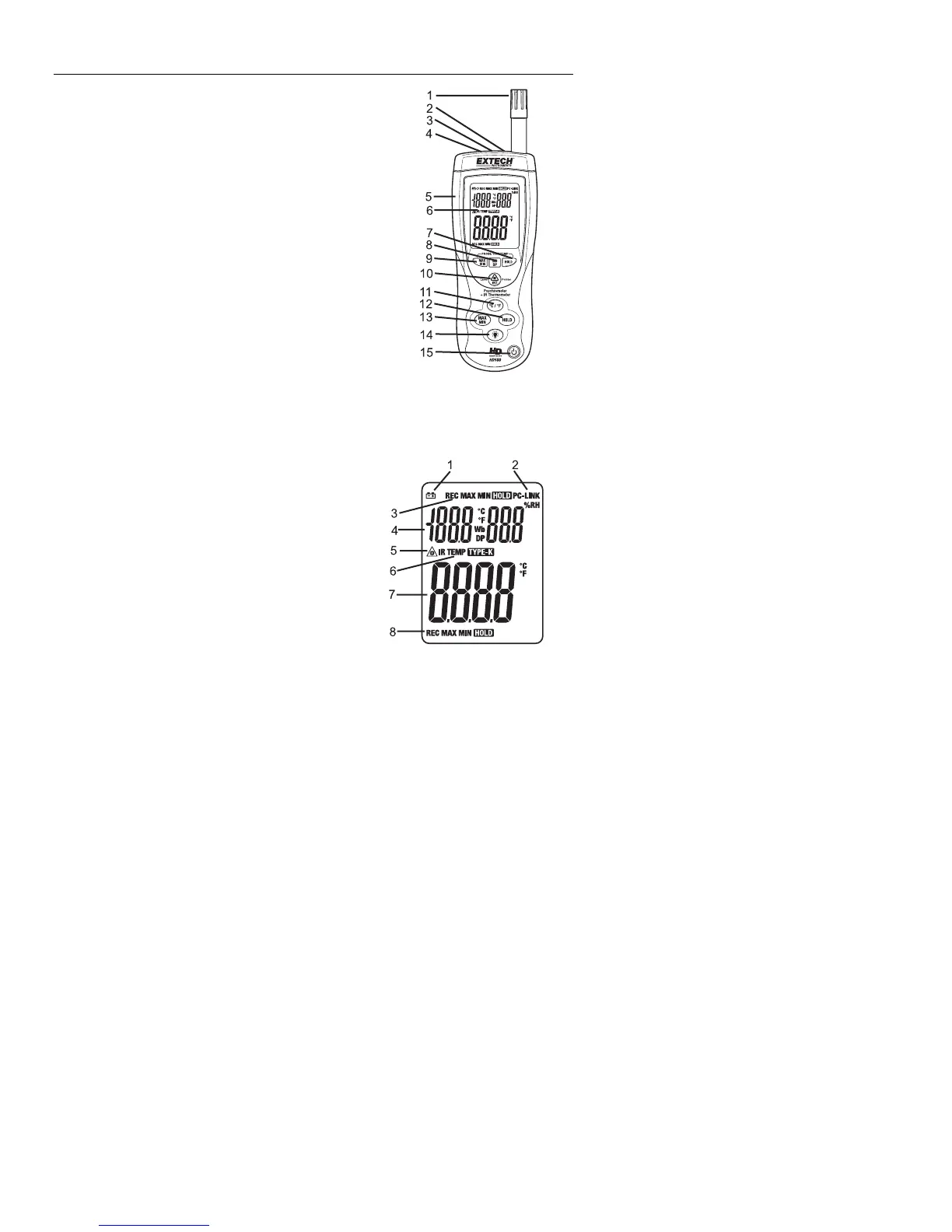

Meter Description
1. Humidity & Air Temperature Sensor
2. Type K Thermocouple input jack
3. Laser pointer beam
4. IR temperature sensor
5. USB Interface
6. LCD Display
7. Upper display HOLD button
8. Upper display Temp./Wet Bulb/Dew Point button
9. Upper display record Max/Min button
10. IR Measurement button
11. °F/°C units button
12. Lower display HOLD button
13. Lower display record Max/Min button
14. Backlight button
15. Power button
NOTE: Battery Compartment, Tilt Stand and Tripod Mount are located on the reverse
side of the meter
Display Description
1. Low Battery icon
2. PC communication icon
3. Upper display function icons
4. Upper display
5. Laser pointer icon
6. Lower display function icons
7. Lower display
8. Lower display function icons

Extech Instruments HD500 Specifications

General

Brand	Extech Instruments
Model	HD500
Category	Thermometer
Language	English
