NORTH AMERICAN VERSION 8 WTH600-en-US_v1.0 12/17

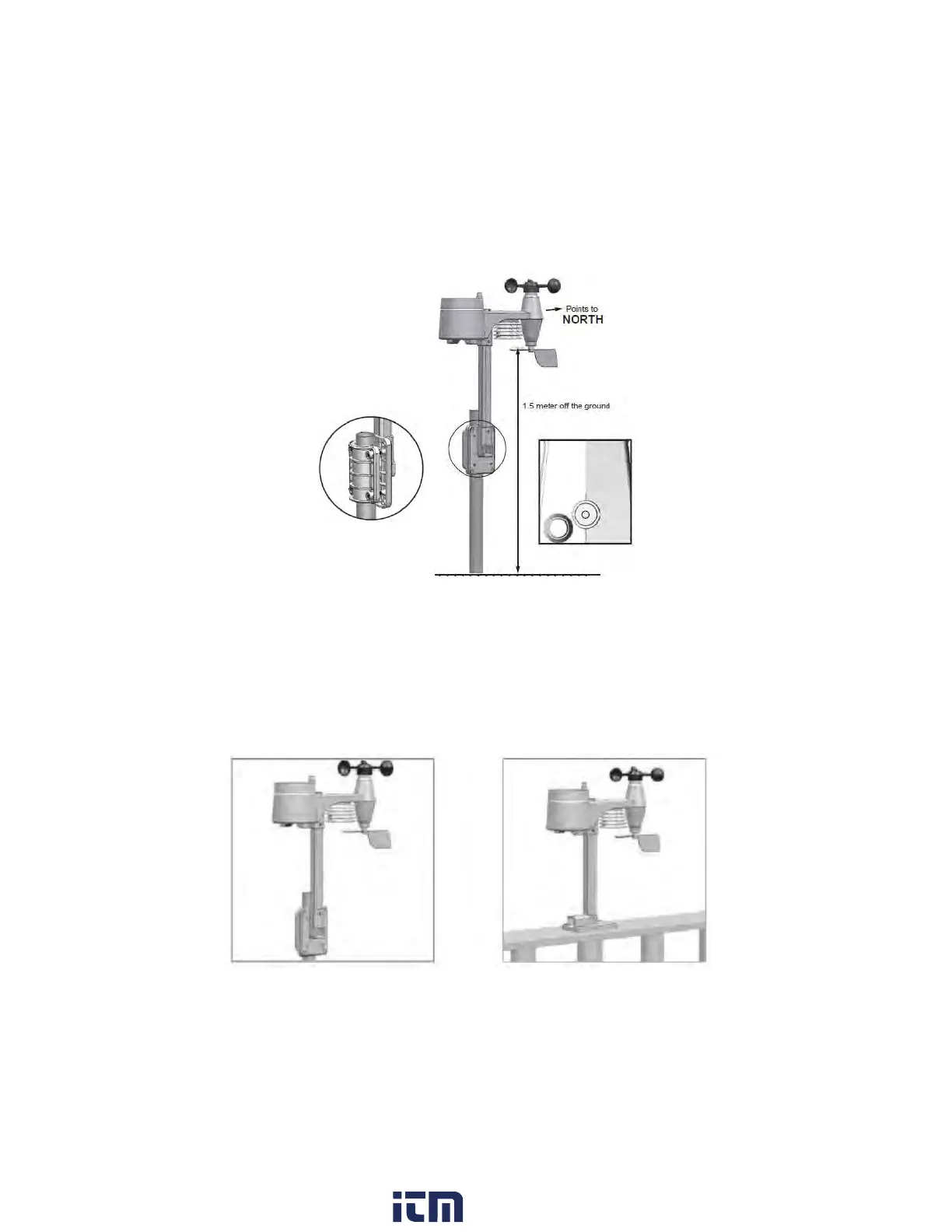

Install the wireless sensor in an open location with no obstructions above and around the sensor
for accurate rain and wind measurement. Install the sensor with the smaller end facing to the
North (proper orientation of the wind direction vane). Secure the mounting stand and bracket
(included) to a post or pole, and allow a minimum distance of 1.5m off the ground.
Mounting guidelines
1. Install the wireless sensor at least 1.5m off the ground for accurate wind measurements.
2. Choose an open area within 150 meters from the Main Unit.
3. Install the wireless sensor as level as possible to achieve accurate rain and wind measurements.
The included leveling device ensures a level installation.
4. Mount the wireless sensor with the wind meter end pointing to the North.
5. Pole mount shown below left and railing mount below right.
