Extech Instruments WTH600 - Wind Cups

4 WTH600-en-US_v1.0 8/17

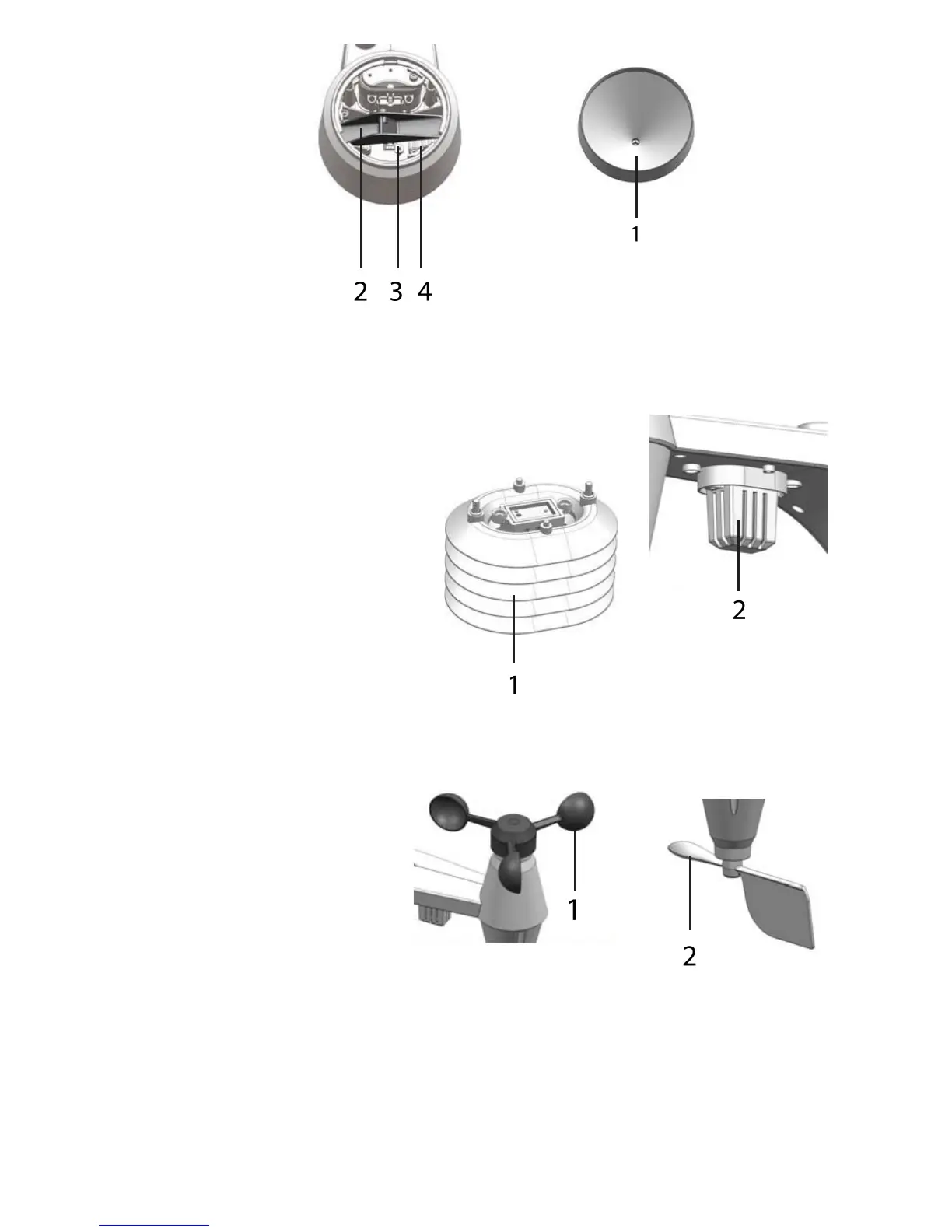

Rain gauge
1. Rain collector
2. Tipping bucket
3. Rain sensor
4. Drain holes
Temperature and humidity sensor
1. Radiation shield
2. Sensor casing
Wind sensor
1. Wind cups (anemometer)
2. Wind vane (direction)
