CHAPTER 27
PAGE 3
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
27-00-00 GENERAL
(Refer to Figure 1) The EXTRA 200 is standard equipped
with full dual primary flight controls including conven-
tional control sticks and adjustable rudder pedals. The
control surfaces are operated by a direct mechanical link-
age. The control surface deflections are shown in Figure 2.

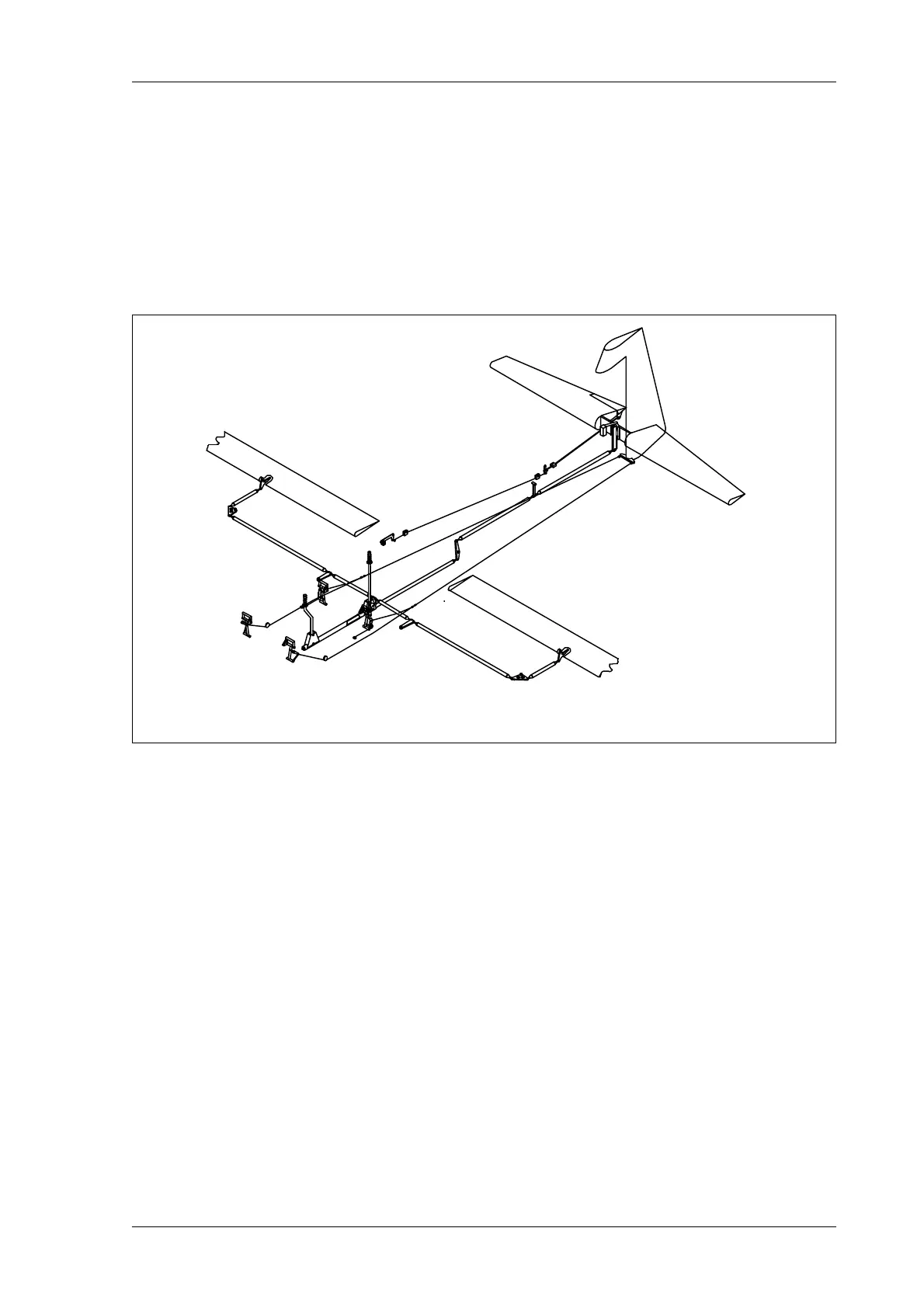

Controls
Figure 1
27-00-01 Free Play in the Control System
With controls (stick and rudder pedals) locked, the free play
measured at the control surfaces must not exceed the values
listed:
Aileron: ±1 mm
*
Elevator: ±1 mm
*
Trim tab: ±2 mm
*
The rudder has a direct cable connection with retracting
springs and is therefore always under tension.
* measured at the trailing edge
and max. chord
