CHAPTER 27
PAGE 11
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996

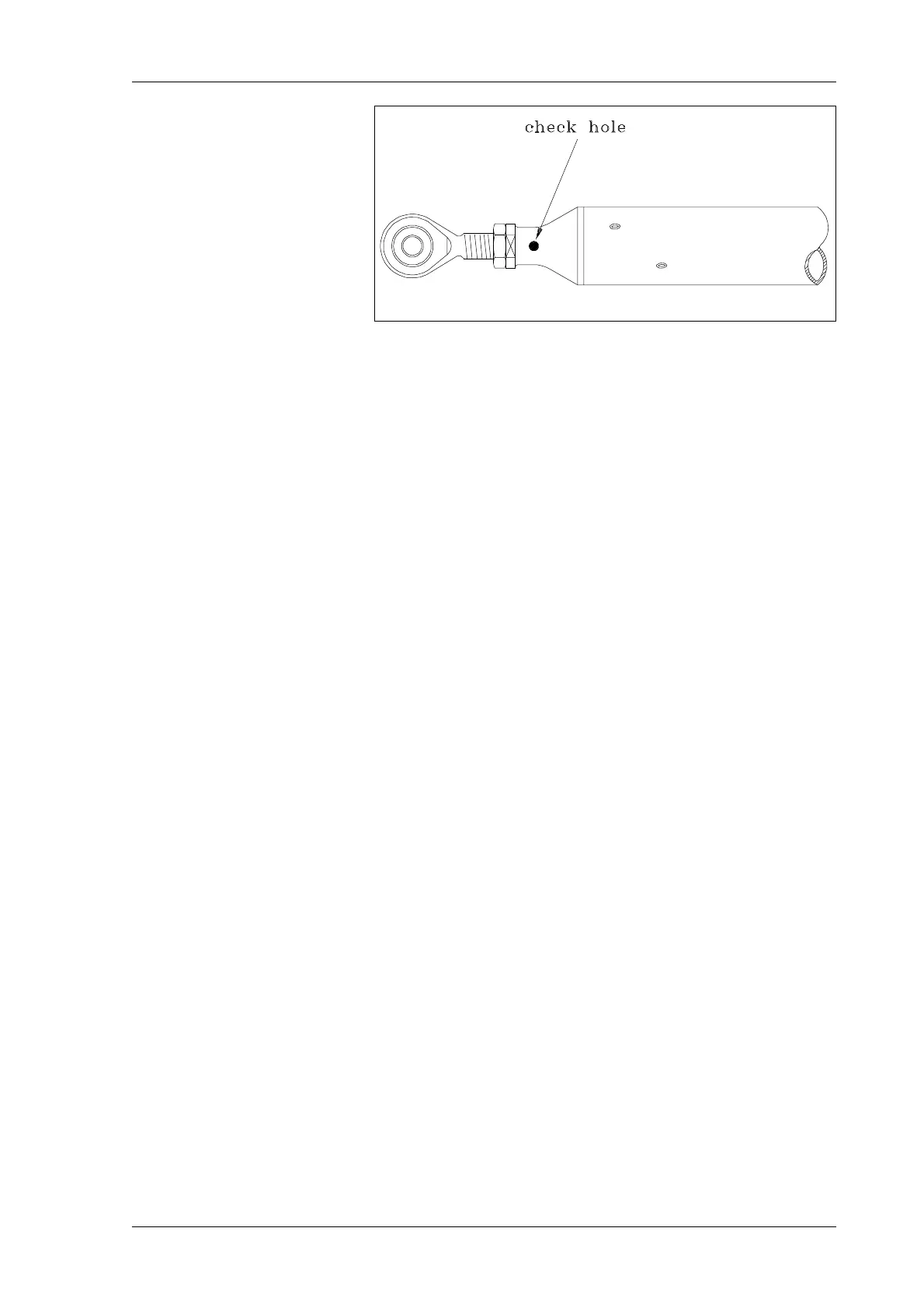

Control Rod Check Hole
Figure 9
4 Turn the rod end in the desired direction to change the
length.
5 Ensure that the rod end is in proper alignment with the
respective control lever and tighten the check nut.
6 Reinstall the control rod per Chapter 27-01-01.
7 Ensure that the control rods don't jam when the control
sticks are moved between the extreme positions.
MAINTENANCE PRACTICES
Control Rod Length Adjustment
