28-11-02 Acro Tank Flop Tube
Removal/Installation
1 Drain the fuel system per Chapter 12-10-02.
2 Disconnect the hose (5, Figure 3) and the elbow fitting
(4).
3 Loosen the flop tube fitting (3) and take the flop tube
assembly (2) out of the acro tank (1).
W A R N I N G Stripping solvents can be toxic and volatile. Use only in
well ventilated areas. Avoid physical contact with sol-
vent and do not inhale vapors. Keep solvent containers
covered when not in use.
4 Clean the sealing surfaces mechanically and with
Acetone.
N O T E If the flop tube assembly has to be replaced install a
complete new assembly.
5 Install in reverse sequence of removal after applying
Loctite 577 to the flop tube fitting thread.

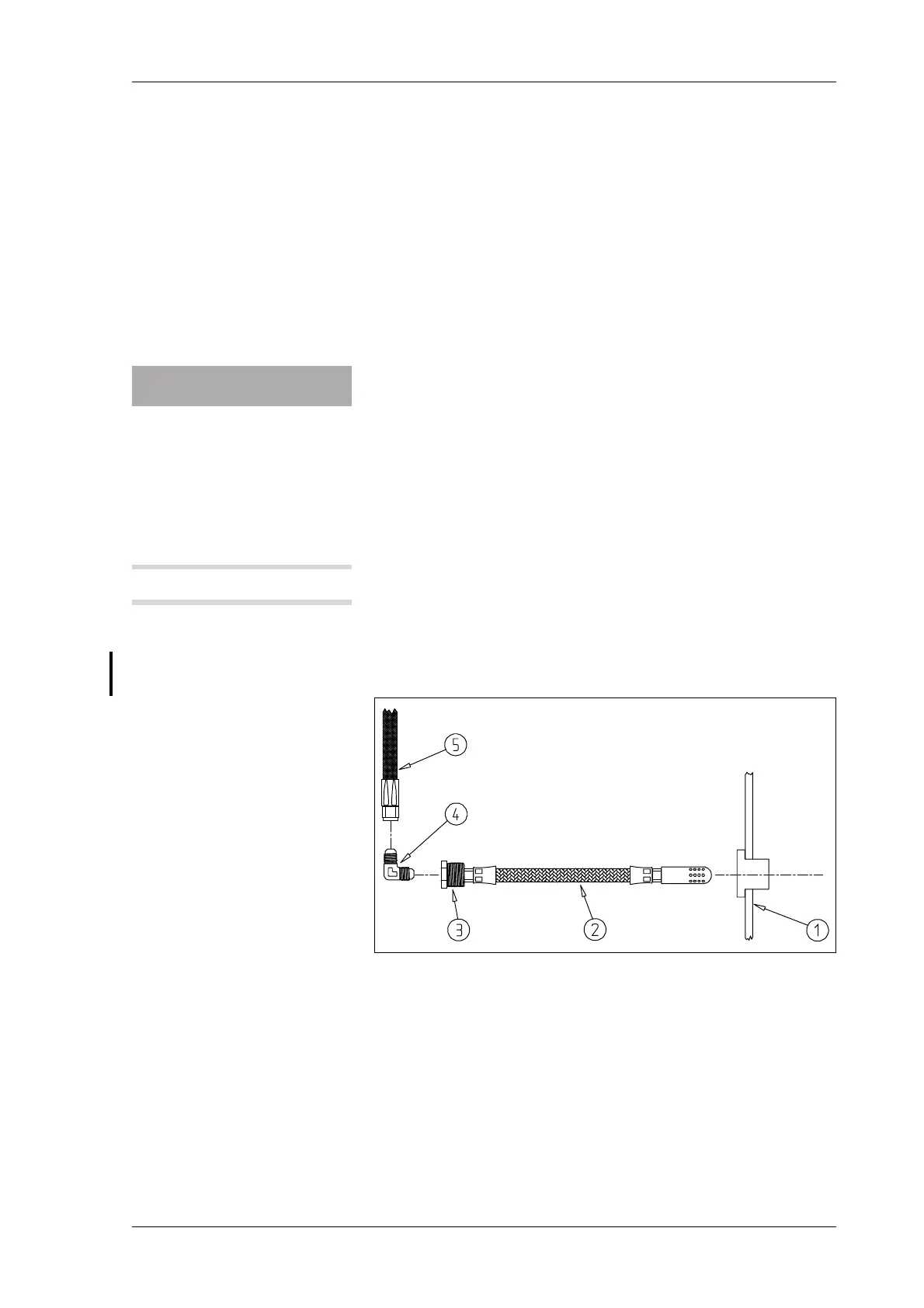

Flop Tube Removal/Installation
Figure 3
