CHAPTER 28
PAGE 14
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
28-11-07 Filler Neck Sealing Lip Replacement
1 Carefully drill out the body-bound rivets (7, Figure 6).
2 Install the new sealing lip driving in new washers (6)
and body-bound rivets.

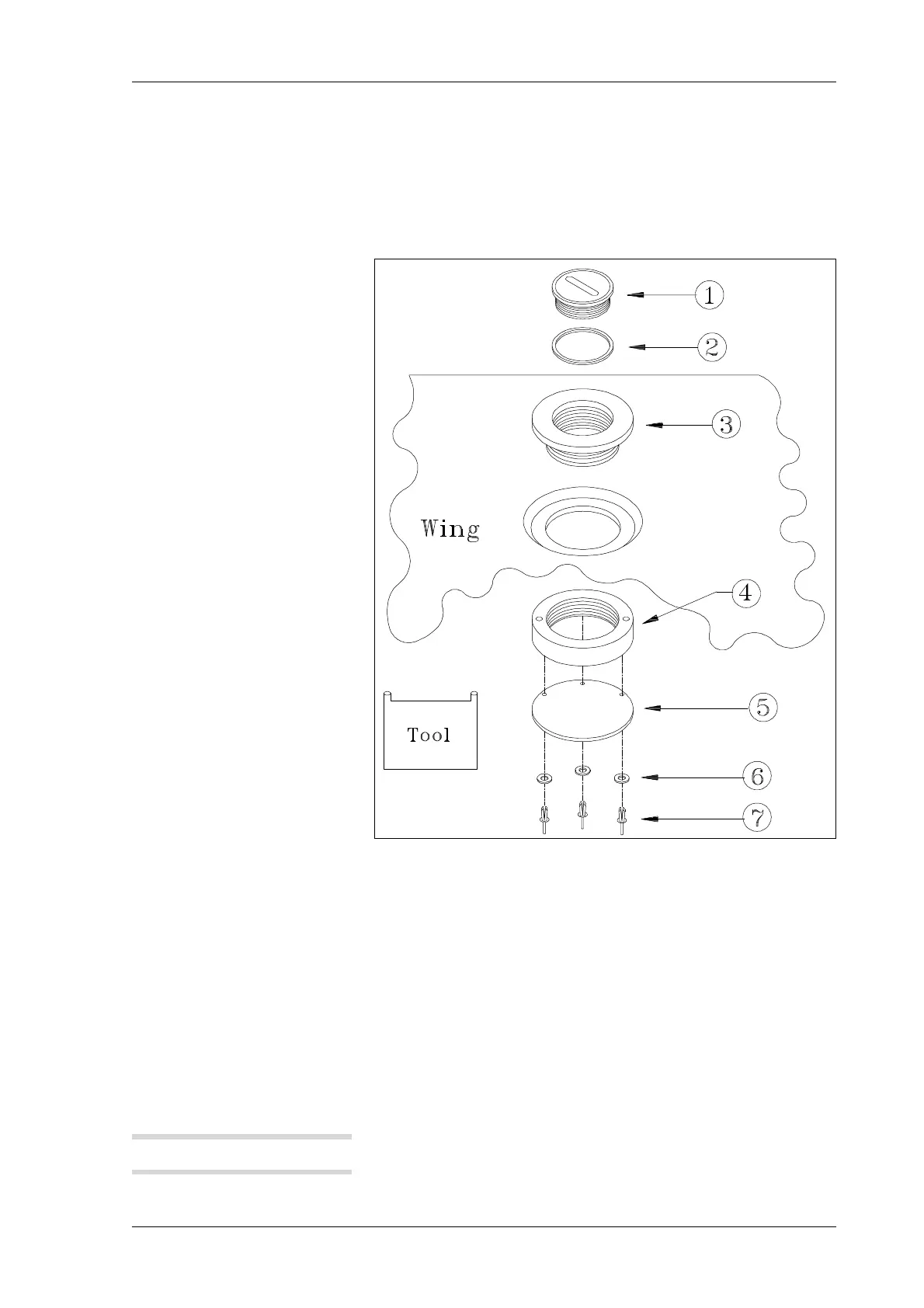

Filler Neck and Sealing Lip Removal/Installation
Figure 6
28-11-08 Ventilation Line Replacement
Refer to Figure 6A. Small letters (a-c) refer to the marks of
Figure 2.
General information concerning hoses and fittings you find
in Chapter 20.
N O T E Use only, tubes and fittings as listed in the following.
MAINTENANCE PRACTICES
Filler Neck Sealing Lip Replacement
