CHAPTER 28
PAGE 30
EXT
RA - FLUGZEUGBAU GmbH
SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
Fuel Lines Airframe Department

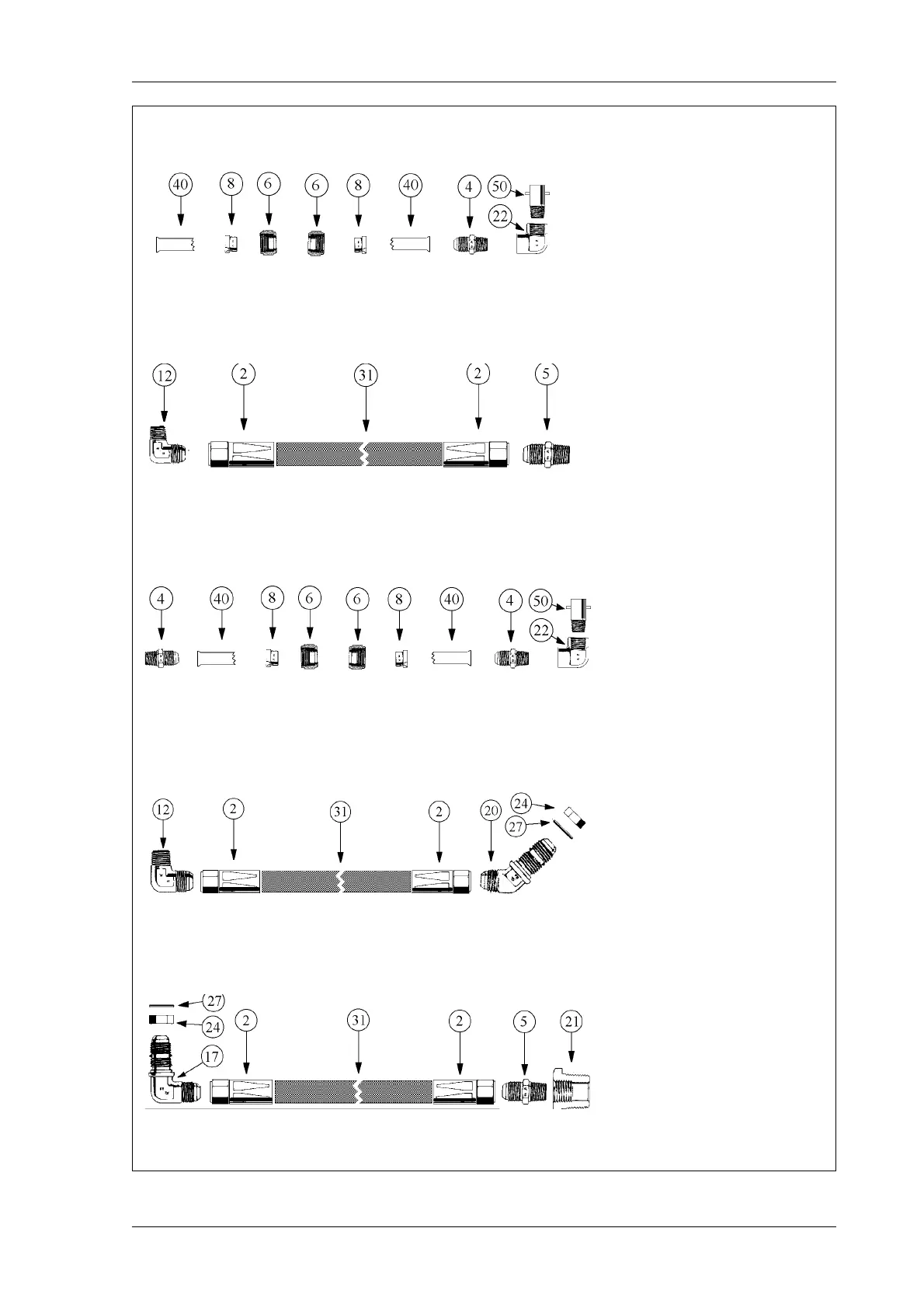

Figure 10A, Sheet 2
Wing tank drain assembly (drain line) (F)
Boost pump to engine driven fuel pump connection (J)
Gascolator to boost pump connection (I)
Gascolator drain assembly (H)
Selector valve to gascolator (G)
Fittings and washers
2 AN491-6D
PN: PC-00150
4 AN816-4D
PN: PC-00159
5 AN816-6D
PN: PC-00158
6 AN818-4D
PN: PC-00161
8
AN819-4D
PN: PC-00860
11 AN822-6D
PN: PC-00164
12 AN822-6D
PN: PC-00164
17 AN833-6D
PN: PC-00172
20 AN837-6D
PN: PC-02858
21 AN912-9D
PN: PC-00176
22 AN916-1D
PN: PC-00180
24 AN924-6D
PN: PC-00177
27 O-ring MS29512-06
PN: PC-01270
Hoses *
31 AEROQUIP 303-6
PN: PC-00403
Tubes
40 alu tube 5052-0, Ø1/4 inch
PN: PC-00123
Valves
50 drain valve
PN: PC-01211
MAINTENANCE PRACTICES
CHAPTER 28
PAGE 21B
* Refer to Ch. 20-10-07
