SERVICE MANUAL EXTRA 200
PAGE DATE: 1. July 1996
06-10-00 MAIN DATA
06-10-01 Main Dimensions
(Refer to Figure 2 on page 6)
Length: 6.51 m (21.36 ft)
Height 1: 2.62 m (8.60 ft)
Height 2 : 2.51 m (8.23 ft)
Wheelbase: 4.62 m (15.16 ft)
Wheel-track: 1.80 m (5.91 ft)
MTOW: Normal category 840 kg
Acro (1 seat) 700 kg
Acro (2 seats) 800 kg
06-10-02 Wing
Span: 7.50 m (24.61 ft)
Area: 10.44 m² (112.38 ft²)
Airfoil: Root: MA 15 S. Tip: MA 12 S
Chord: Root: 1.85 m. Tip: 0.93 m
MAC: 1.44 m ( 4.72 ft)
Aileron area: 2 x 0.830 m² (2 x 8.94 ft²)

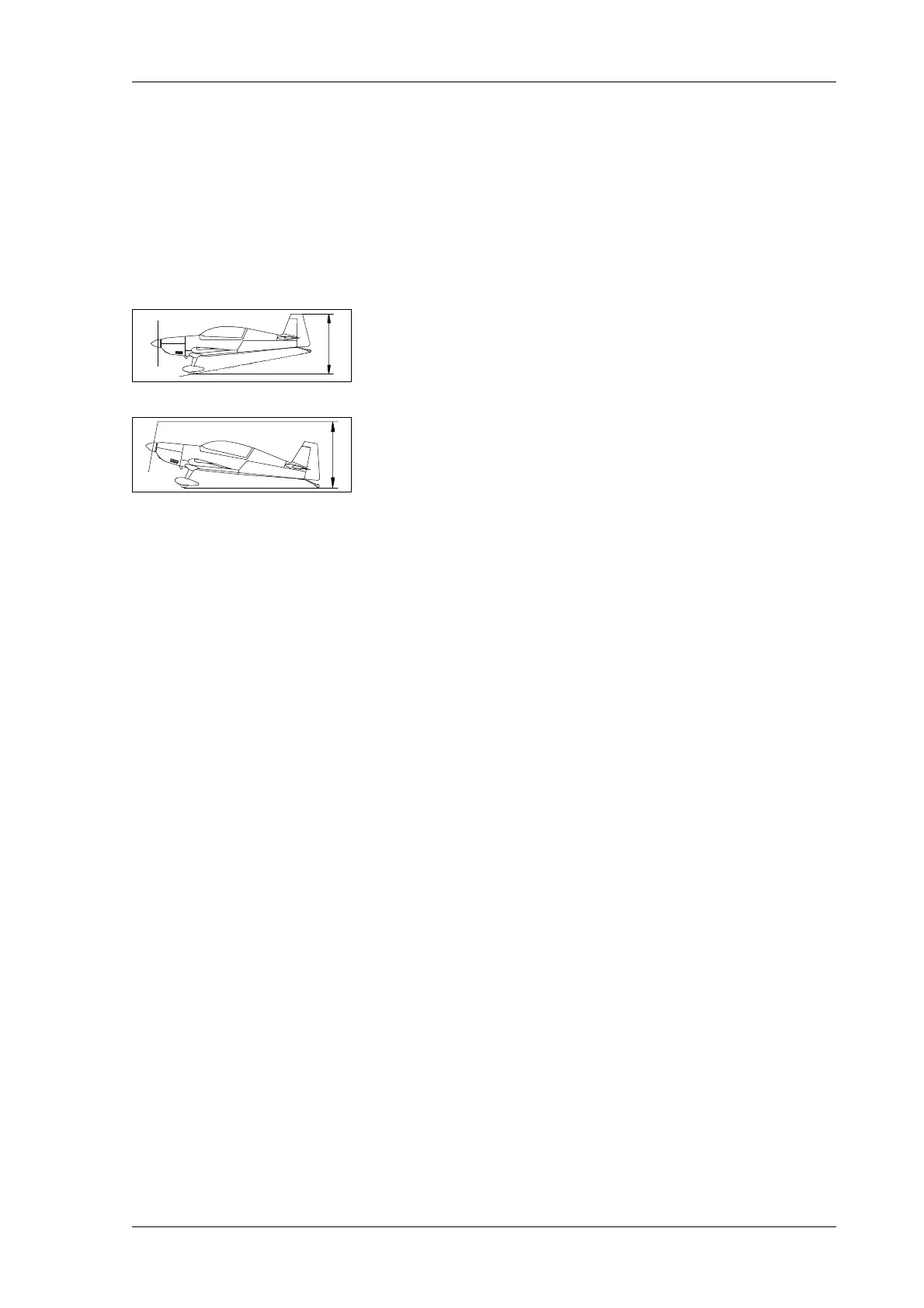

Height 1
Height 2
