8. CONTROL PANEL
1  ON/OFF BUTTON
The stove can be turned on and off automatically by pressing button 1.
2-3  AIR TEMPERATURE SETTING
Buttons 2 and 3 are used to adjust the room temperature inside the house.
4-5  OPERATING POWER
Buttons 4 and 5 are used to adjust the heating power and warm air ventilation:
Ecologica: 3 kW/h up to max. 11 kW/h
Maxi Comfort Insert: 3 kW/h up to max. 9.4 kW/h
Babyfiamma – Preziosa – Isabella: 1.9 kW/h up to max. 5.1 kW/h
Karolina: 1.9 kW/h up to max. 7 kW/h
Divina - Divina Plus: 3 kW/h up to max. 11 kW/h
Bella - Bella Lux - Duchessa: 3 kW/h up to max. 8.5 kW/h
Contessa: 3 kW/h up to max. 9.4 kW/h
Falò 1Xlp – Falò 1CP – Falò 2CP: 3 kW/h up to max. 9.4 kW/h

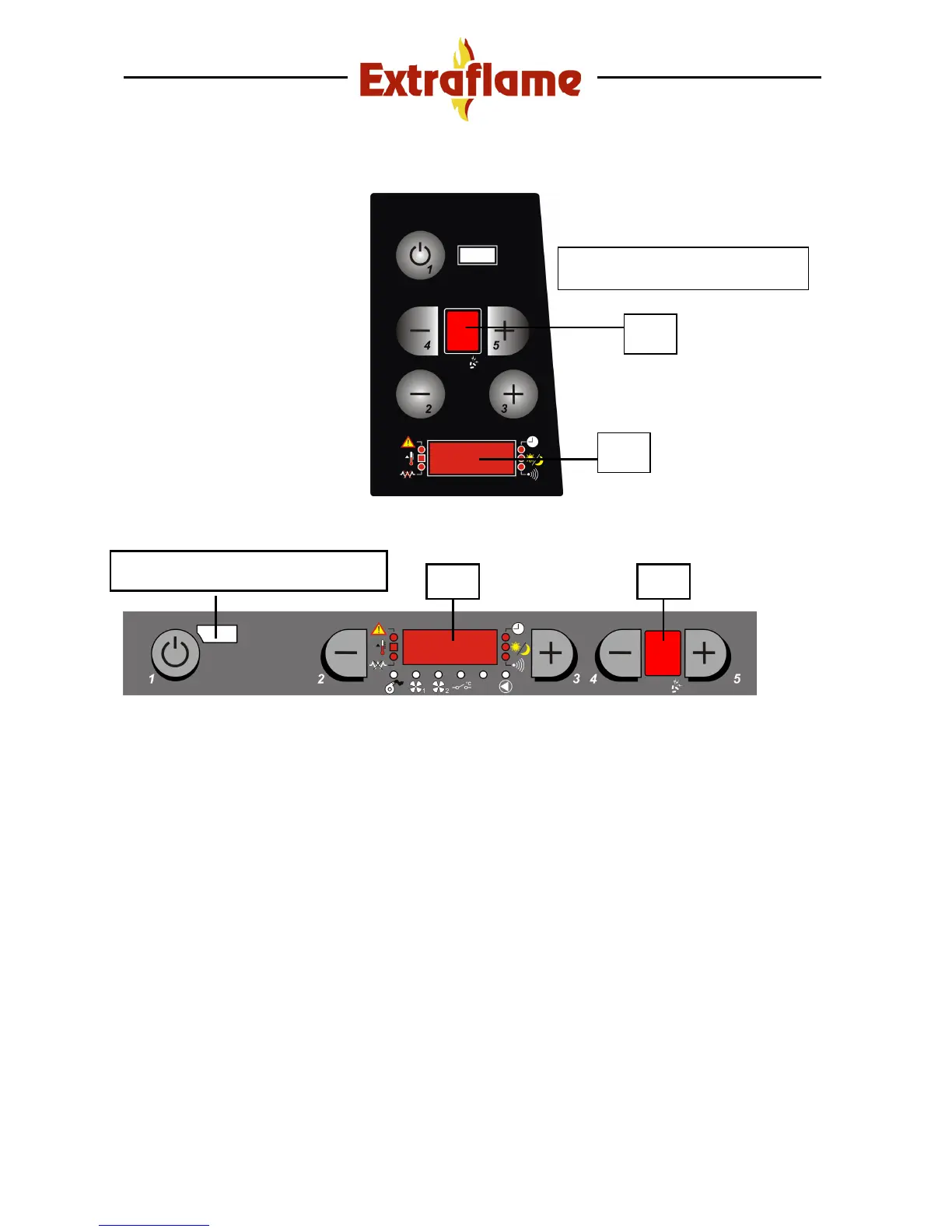

D1 Display for showing the various messages
D2 Display for showing the heat setting
REMOTE
CONTROL SENSOR
D2
D1
REMOTE CONTROL SENSOR
D1
D2
